Teka HLF 840 - Oven Quick Start Guide

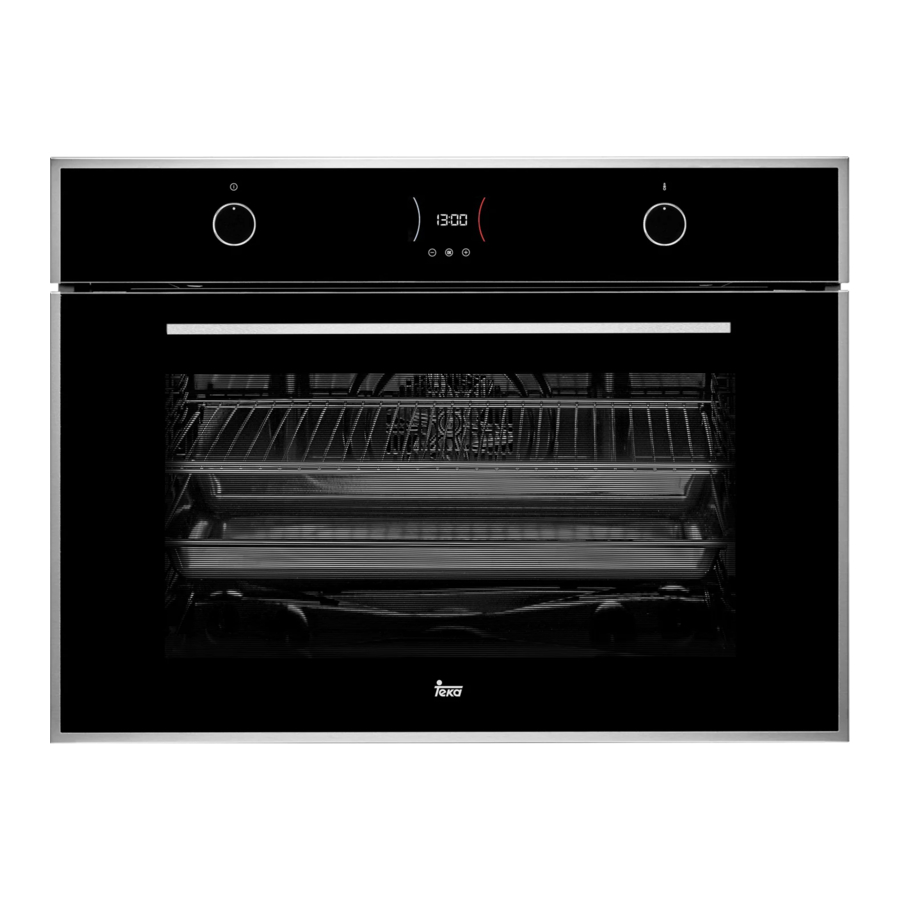

Description of the oven

1. Fixing to Unit
2. Air Outlet
3. Fold-down Grill element
4. Chromed Support / Telescopic Guide
5. Grid
6. Roasting Tray
7. Fan
8. Hinge
9. Door
10. Control Panel
11. Light

Control panel

1. Electronic clock
2. Function selector
3. Temperature selector

Function selector symbols

Oven functions

INFORMATION
For a description of how to use each of the features, see the cooking guide that comes with your oven.

SWITCH OFF OVEN

CONVENTIONAL
It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

CONVENTIONAL WITH FAN
Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

GRILL AND LOWER ELEMENT
Special for roasts. It can be used for any piece, whatever its size.

MAXIGRILL
Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

GRILL
For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

While using the Grill or MaxiGrill, the door must be kept closed.

LOWER ELEMENT
Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

PIZZA
Special for cooking pizzas, pastry and fruit cakes.

TURBO
The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time.

DEFROSTING
This function uses a two-level hot air system. LO is for fish, cakes, pastries and bread. HI (higher temperature inside the oven) is for meats in general.

TEKA HYDROCLEAN^® CLEANING FUNCTION
After using this cleaning cycle, any traces of grease or dirt that were stuck to the walls of the oven can easily be wiped clean with a damp cloth.

NOTE
The light remains on when performing any cooking function, except when cleaning.

Electronic clock/timer description

1. KEYS
   , and : Enable you to programme the electronic clock/timer functions.
   : For models with electronic temperature control, press this button to see the temperature during cooking.
2. SYMBOLS

Clock settings

AVISADOR: Lights up when the clock/timer is selected. Generates an acoustic signal when the time is up. The oven does not turn off at the end of the timer period. This function can also be used while the oven is cooking.

and PROGRAMMING: Light up to indicate that the oven is programmed (cooking time, stop time or total).

• Cooking Time: This function allows you to programme the cooking time, after which the oven will turn off automatically.
• Cooking stop Time: This setting allows you to programme the time for cooking to stop, after which the oven will turn off automatically.
• and Cooking Time and Cooking stop Time: This setting allows you to programme the cooking time and cooking stop time. The oven switches on automatically at the set time and operates for the selected cooking time (Cooking Time). It then switches off automatically at the indicated time (Cooking Stop Time)

CLOCK/TIMER LOCK: Indicates that the touch keys for the clock/timer are locked, preventing modifications by small children.

Other functions

HEATING: Indicates that the oven is transmitting heat to the food.

HYDROCLEAN: Lights up while the Teka Hydroclean^® function is in progress.

The sensitivity of the touch keys adapts continually to environmental conditions. Make sure the surface of the control panel is clean and free of obstacles when plugging in the oven.
If the clock does not respond correctly when you touch the keys, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust automatically so that they will react once more to fingertip control.

SETTING THE TIME

• To set the time on the oven, the function and temperature dials must be in the position.
• When you plug in the oven, you will see the clock flashing 12:00.
• Touch or to adjust the hours and then the minutes. You will hear a double beep confirming the time is set.
• If you wish to modify the time, touch or until the time starts flashing. Touch and and follow the instructions in the previous point.

NOTE
The clock light has a night mode so the display light will dim between 00:00 and 6:00 hours.

In the event of a power failure, your electronic clock/timer settings will be erased.
If this happens, turn the function and temperature dials to the position.
The indication 12:00 will show, and you will then be able to set the time as described above.

Oven use

MANUAL OPERATION

• After setting the clock, the oven is ready for use. Select a cooking function and temperature.
• You will notice that the symbol lights up during cooking to indicate that heat is being transmitted to the food. This symbol disappears when the selected temperature has been reached.
• Set the controls to to turn off the oven.

INFORMATION
When you start cooking, your oven will show the time the oven has been cooking.

OVEN TIMER OPERATION

Programming the Buzzer

1. Touch or until the symbol on the display starts flashing, then press . The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The symbol will flash slowly.
3. Once the time has expired, an acoustic signal will sound for 90 seconds and the symbol will flash quickly.
   NOTE
   With the Buzzer function, the oven will not turn off when the time expires.
4. Touch any key to stop the alarm. The symbol will then disappear.

If you wish to modify the time on the buzzer, repeat the steps shown. Upon entering the timer control, the time currently remaining will appear, which you will be able to adjust.

NOTE
With the Buzzer function, the remaining time will show permanently on the display. With this programmed function, it is not possible to view the time or the total programmed cooking time.

Programming Cooking Time

1. Touch or until the symbol on the display starts flashing, then press . The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The symbol will flash slowly.
3. Select a function and a cooking temperature using the oven commands.
4. Once the cooking time is up, the oven will turn off, an alarm will sound and the symbol will flash quickly.
5. Touch any key to stop the alarm and turn off the symbol. The oven will switch on again.
6. Set the controls to the position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press to change the time.

NOTE
With the Cooking Time function, the remaining time will show permanently on the display. You cannot see the current time on the display when this function is set.

Programming the Cooking Stop Time

1. Touch or until the symbol on the display starts to flash and press . You will see the current time on the timer display.
2. Select the time after which you want the alarm to sound by pressing or . You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The symbol will flash slowly.
3. Select a cooking function and temperature.
4. When the cycle is finished, the oven will turn itself off, a buzzer will sound and symbol will flash quickly.
5. Touch any sensor to stop the alarm and to turn off the , symbol. The oven will switch on again.
6. Set the controls to the position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press to change the time.

Programming Cooking Time and Cooking Stop Time

1. Touch or until the symbol on the display starts flashing, then press . The indication '00:00' will appear on the display.
2. Select the cooking time by touching or . Next, a double beep will sound, the remaining time will appear on the display and the symbol will flash slowly.
3. Touch or until the symbol on the display starts flashing, then press . You will see the expected completion time on the timer display.
4. Select the cooking end time by touching or . Next, a double beep will sound and the current time will be displayed on the display.
5. Select a cooking function and temperature. The oven will remain disconnected with the and symbols lit up. The oven is now programmed.
6. When it is time to start cooking, the oven will turn on and will operate for the programmed cooking time.
7. While cooking, the cooking time remaining will be displayed and the symbol will flash slowly.
8. When the cooking time is up, the oven will turn off, a buzzer will sound, and the symbol will flash quickly.
9. Touch any sensor to stop the buzzer and turn off the symbol. The oven will switch on again.
10. Set the controls to the position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press to change the time.

Safety instructions

SAFETY CHILD LOCK

This function can be selected at any time while using the oven.

To activate the function, touch and hold key for several seconds until you hear a beep and the symbol appears on the display. The clock/timer is locked.

If the oven is off and you activate the child safety function, the oven will not work even if a cooking function is selected.

If this function is activated while you are cooking, it will only lock the electronic clock/timer settings.

To disable the function, press key for several seconds until you hear a beep.

Teka Hydroclean^® function

This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven.

For easier cleaning, do not allow dirt to accumulate. Clean the oven frequently.

PROGRAMMING THE TEKA HYDROCLEAN^® FUNCTION

Do not pour water into a hot oven as this can damage the enamel of the oven.

Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot.

First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails.

To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

1. With the oven cold, spread a cloth out on the bottom of the oven
2. Gently pour 200 ml of water into the bottom of the oven cavity.

   INFORMATION
   For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth.
3. Turn the control dial to the position.
4. You will hear a beep indicating that the Teka Hydroclean^® cycle has started. The symbol will flash slowly and the time remaining to complete the cycle will appear on the display.

   The duration of this cycle cannot be changed. To stop the cycle before it is finished, turn the control dial to the position.
5. When the cycle is finished, the oven will turn itself off, an alarm will sound and the symbol will flash quickly.

   Do not open the oven door until the Hydroclean^® function is complete.
   The cooling cycle is necessary for the function to work properly.
6. Touch any sensor with your fingertip to stop the alarm and turn off the symbol.
7. Turn the control dial to the position.
8. Any traces of dirt and excess water can now be removed from the oven with the damp cloth.

The Hydroclean^® function takes place at a low temperature. However, cooling times can vary depending on the room temperature.

Before touching the inside surface of the oven, make sure that it has cooled properly.

If a deeper clean is required after using the Hydroclean^® function, use neutral detergents and non-abrasive sponges.

Teka Hydroclean enamel has been designed to be cleaned using the oven's automatic cleaning programme and other cleaning methods can damage it. Anti-limescale products in particular can seriously damage the enamel's properties.
Teka Hydroclean enamelled oven trays should not be cleaned in the dishwasher. If deep cleaning is needed, use a gentle detergent.
Some foods such as tomato, vinegar or saltcooked roasts, can make the enamel's surface appear to change; this is normal.
