The Garden Gym Monkey bar Installation Manual

Download this manual

NB- Before you start!

Ensure that the first pull up bar is solid. You will connect the

monkey bar to the original pull up bar which will can create

movement in the foundations. We recommend that you let the

pull up bar concrete harden before starting to add the monkey

bar. Depending on the mix you used this would be between 2-4

Monkey bar

Installation guide

hours.

General guidance

These instructions are provided as a guide to help you

install your equipment. Depending on the type of ground

conditions it may be necessary to modify the installation. If

you are unsure, please consult a qualified professional or

contact the Garden Gym Team. The installation must be

carried out by 2 people. Before digging you must ensure

that there is no risk of encountering services such as drains

or electricity.

The Garden Gym does not accept any liability in relation

to the installation and subsequent use of the gym

relating to incorrect or improper installation.

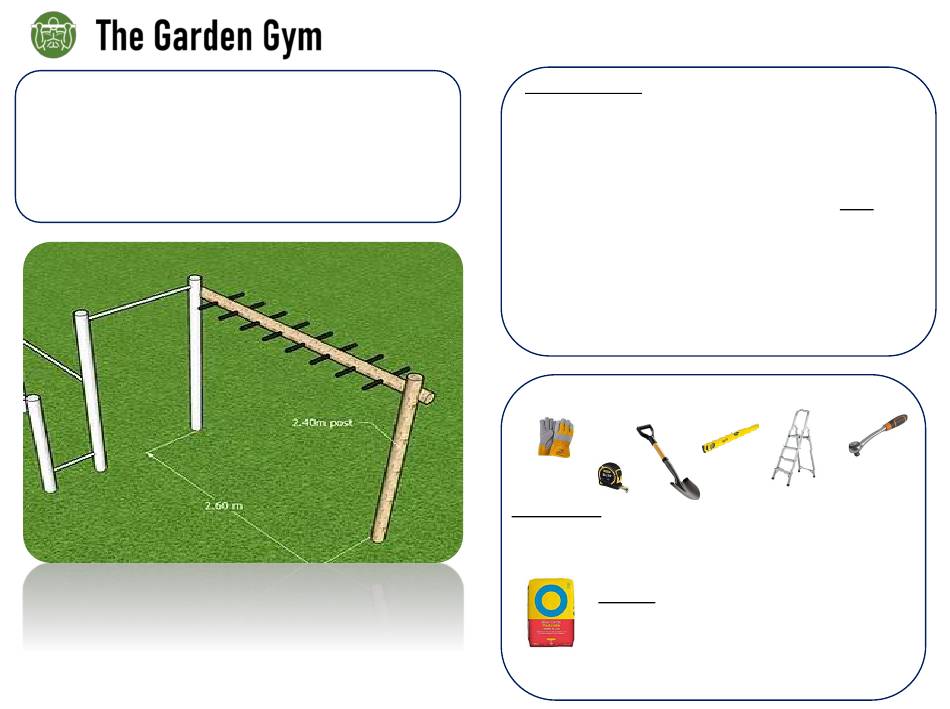

You will need

Spade / hole diggers / safety gloves / step ladder / tape /

measure / level / 2 x 19mm socket drivers / hammer

Post mix

Between 1 and 2 bags per post, depending on

the size of your holes and ground conditions

Need help?

Do you have a question about the Monkey bar and is the answer not in the manual?

Page 1 Ensure that the first pull up bar is solid. You will connect the These instructions are provided as a guide to help you monkey bar to the original pull up bar which will can create install your equipment. Depending on the type of ground movement in the foundations.
Page 2 Caution When deciding on your gym layout it is essential to ensure that the monkey bar has at least one 90-degree connection to a pull up bar. Also, if using a pull up bar at each end then the layout must be in a zig-zag style (see picture A). The...
Page 3 Monkey bar Installation guide Caution Monkey bar must be orientated as shown or injury could occur These images show the Picture A correct orientation of the monkey bar and pull up bar. The monkey bar must be positioned on the opposite side of the upright post.
Page 4 Layout the monkey bar Taking notice of the offset scallop detail use the monkey bar to work out the position of the support post. You can fit the monkey bar to either upright of the pull up bar.
Page 5 It is necessary that a minimum of 2 people carry out his stage as the monkey bar will weigh apx. 50kg. The monkey bar will need to be lifted into position and the coach bolts and nuts used to secure it into position to the upright posts, the bolts will be tightened later.
Page 6 7.The Garden Gym ltd disclaims all liability from the mis-use or incorrect installation of our products. 8.The user must not adapt, amend or remove any part of the...
