Elan EL-4KM-V88-A268-18G Quick Reference Manual

EL-4KPM-V88-A268-18G
Introduction
The ELAN 8x8 HDBaseT Matrix offers unprecedented performance and value for the custom installation market. The EL-4KPM-V88-A268-18G is
®
a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over
a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT / HDMI on output 1, video down conversion on
HDBaseT outputs and independent 26x8 audio Matrix including Audio Return Channel (ARC). The EL-4KPM-V88-A268-18G includes in-built web
browser interface module for control and configuration of the Matrix, along with RS-232 and IR pass-through for seamless 3rd party control integration.
Features
• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT outputs
• Output 1 features simultaneous HDMI and HDBaseT output
• Video down-conversion on HDBaseT outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0, or 1080p) to
receive 4K 60Hz 4:4:4 video content, while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 70m, and 1080p video up to 100m
• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
- 8 x audio breakout from HDMI source inputs
- 8 x audio breakout from zone outputs
- 8 x ARC from zone outputs*
- 1 x Optical and 1 x analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT outputs
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT receivers
• Supplied with ELAN 5V 3.5mm IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant
*ARC feature compatible with EL-4KHDBT-RX-70-ARC-18G only
© 2022 ELAN is a registered trademark of Nortek Security & Control LLC. All rights reserved.
®
RevA4_QRG_ELAN_EL-4KPM-V88-A268-18G_Working_SF.indd 1 RevA4_QRG_ELAN_EL-4KPM-V88-A268-18G_Working_SF.indd 1

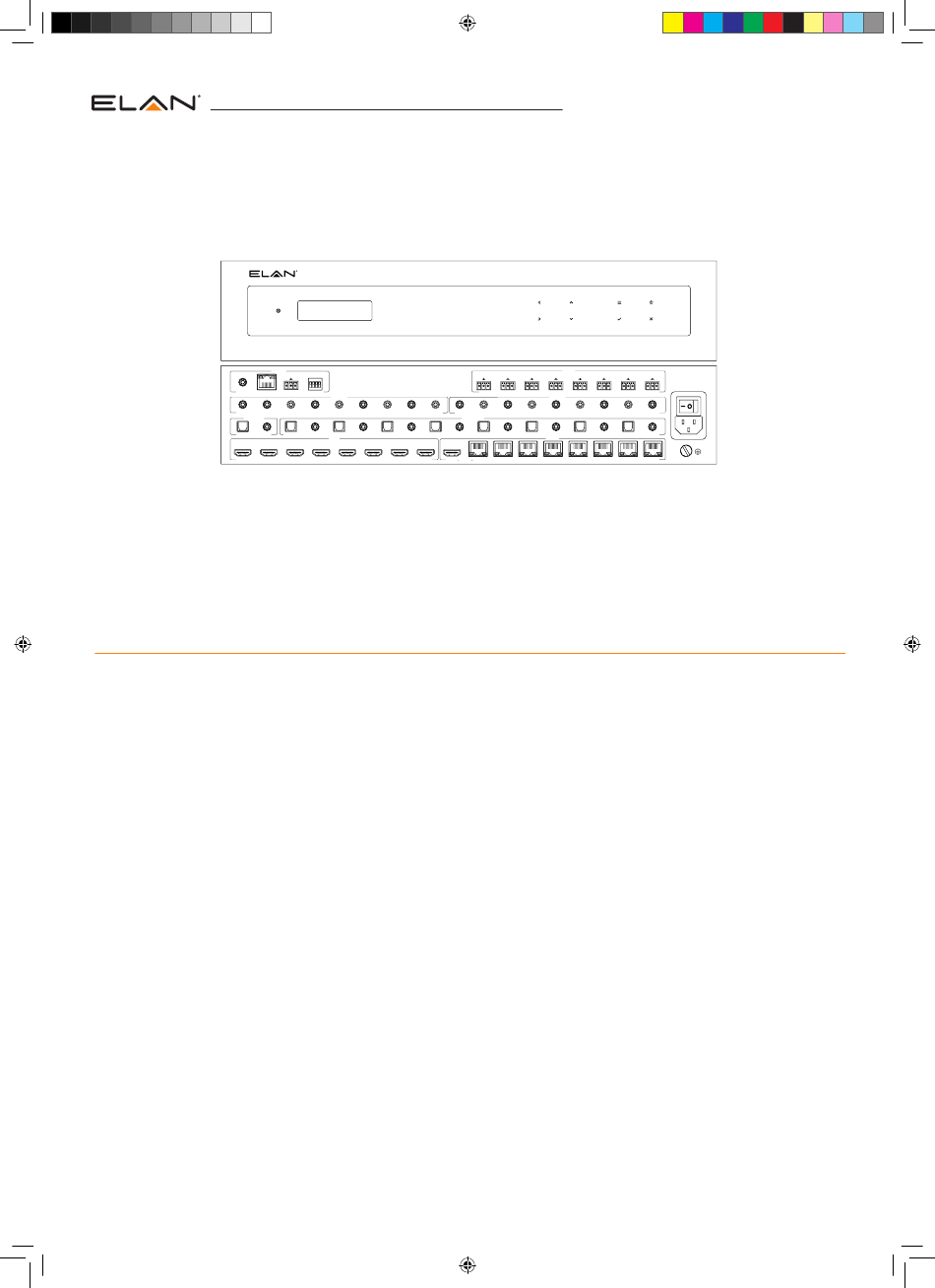

Quick Reference Guide
EL-4KM-V88-A268-18G
CONTROL
3 2 1 0
TX RX
0
1
IR CTRL TCP / IP RS-232 EDID
IR OUTPUT
1 2 3 4 5 6 7 8
AUDIO INPUT
OPTICAL L/R OPTICAL 1 L/R 1 OPTICAL 2 L/R 2 OPTICAL 3 L/R 3
INPUT
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 HDMI 7
EL-4KPM-V88-A268-18G
1 2 3 / 4 /
5 6 7 / 8 /
RS-232
TX RX TX RX TX RX TX RX TX RX
1 2 3 4 5
IR INPUT
GLOBAL 1 2 3 4 5 6
AUDIO OUTPUT
OPTICAL 4 L/R 4 OPTICAL 5 L/R 5 OPTICAL 6 L/R 6 OPTICAL 7
OUTPUT
HDMI 8 HDMI 1 MIRRORED HDBT 1 HDBT 2 HDBT 3 HDBT 4 HDBT 5
QUICK REFERENCE GUIDE
TX RX TX RX TX RX
AC100V - 240V
6 7 8
7 8 GLOBAL
L/R 7 OPTICAL 8 L/R 8
HDBT 6 HDBT 7 HDBT 8
