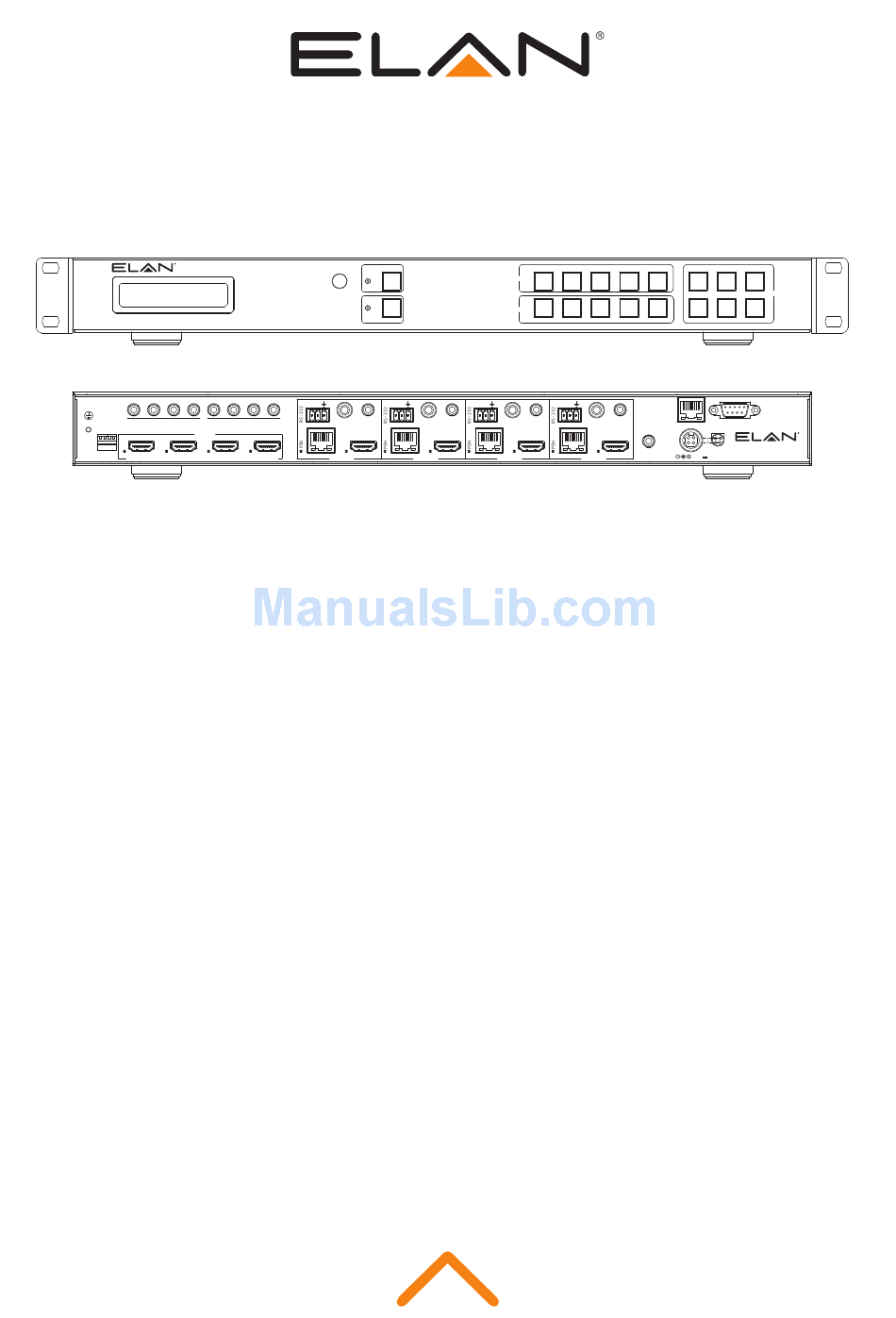

  • Page 1 Output 2 Output 3 Output 4 EL-4KM-V44 IR Ext. HDMI HDMI HDMI HDMI EDID HDBT 3 . 5A HDMI 3 HDMI 4 HDBT HDBT HDBT HDMI 1 HDMI 2 Output 1 Output 2 Output 3 Output 4 EL-4KM-V44-KIT User Manual...

  • Page 2: Table Of Contents

    Do not substitute or use any other power supply other than the enclosed unit, or a Maintenance ELAN approved replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will RS-232 and Telnet Commands 15-16 void the manufacturer’s warranty.

  • Page 3: Introduction

    USER MANUAL Introduction The ELAN 4x4 HDBaseT™ matrix offers unprecedented performance and value for the custom installation market. The EL-4KM-V44 is a 4K 4x4 HDCP 2.2 matrix package, delivering HDMI, bi-directional IR, RS-232, and PoH (PoE) up to lenghts of 40m at 4K (70m @1080p) over a single CAT cable.

  • Page 4: Panel Descriptions

    IR input for matrix control – For hard TCP/IP & web browser interface control Zone specific bi-directional RS-232 wired IR connection. Connect to ELAN of EL-4KM-V44 Matrix. control processor. ports – Connect to third party control RS-232 port – For control of the Matrix device to extend RS-232 commands to Power port –...

  • Page 5: Control Ports

    RS-232 2-Way Flow Control: None The ELAN 4KM-V44 can be controlled via a 9-pin serial cable. For the full list of protocols please see ‘RS-232 and Telenet commands’ located at the rear of this manual. Details of RS-232 pin assignment and communication are adjacent. Please note that depending on your control device serial port pin configuration you may require either a ‘Straight’...

  • Page 6: Hdbaset Receiver Options

    IR RX IR TX HDMI Out EL-4KHDBT-RX-40-IR Basic HDBaset Receiver with 2-way IR pass-through. Supports display distances up to 70m @ 1080P and 40m 4K (30Hz 4:4:4 & 60Hz 4:2:0). Compatible with all ELAN Matrix products. EL-4KHDBT-RX-40-IR HDBaseT input HDMI Output IR Output 3.5mm Mono jack...

  • Page 7: Matrix Front Panel Controls

    EL-4KM-V44-KIT USER MANUAL Matrix Front Panel Controls Front Panel Display - Input/Output selection The following display shows current source input selection per zone output. 1. To change input selection first press ‘OUTPUT’ button (1-4) 2. Press desired ‘INPUT’ button (1-4) 3.

  • Page 8: Audio Breakout

    HDMI video output. Select Down Enter Lock VideoMatrix The EL-4KM-V44 analog outputs include pre-amp line level control allowing you to connect the ELAN matrix directly into a power amplifier for all your multi-room audio needs. TxRx TxRx TxRx TxRx...

  • Page 9: Terminating Hdbaset Cat Cables

    Terminating HDBaseT CAT cable It is important that the interconnecting CAT cable between the ELAN HDBaseT products is terminated using the correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).

  • Page 10: Infrared Distribution

    The ELAN range of HDMI matrix products include multiple options for control and routing of IR. IMPORTANT: The ELAN HDMI Platinum, Matrix, & HDBaseT product lines utilize 5 volts to power an IR Receiver on the IR Input and include an EL-4KACC-IR-CAB, 3.5mm Mono to 3.5mm Stereo 5v to 12v IR converter cable. This cable is required when using 12v IR products from Xantech, Niles, and SpeakerCraft.

  • Page 11: Infrared Remote Control

    EL-4KM-V44-KIT USER MANUAL Infrared Remote Control OUTPUT AND INPUT SELECTION EDID SET UP Selects the zone OUTPUT you wish to The EL-4KM-V44 provides a comprehensive POWER POWER change the source on (Numbers 1 - 4 range of EDID settings. Below are three...

  • Page 12: Edid Control

    Using Matrix Front Panel Buttons (For further details see page 7) Using Supplied ELAN Matrix IR Remote Control (For further details see page 10) Using dip-switches on the rear panel of the EL-4KM-V44 Matrix. Please see below table for global EDID settings.
  • Page 13 EL-4KM-V44-KIT USER MANUAL ZONE 01 ZONE 02 ZONE 03 ZONE 04 SOURCE 01 SOURCE 02 SOURCE 03 SOURCE 04 70m max contact techsupport@elanhomesystems.com...

  • Page 14: Specifications

    EL-4KM-V44-KIT USER MANUAL Specifications Video Input Connections: 4x HDMI Type A, 19-pin, female Video Output Connections: 4x HDMI Type A, 19-pin, female, 4x HDBaseT RJ45 connector Audio Output Connections: 4x 3.5mm stereo jack RS-232 serial port: 1x DB-9, female, 4x 3 pin Phoenix...

  • Page 15: Rs232 And Telnet Commands

    USER MANUAL RS232 and Telnet Commands The ELAN EL-4KM-V44 can be controlled via serial and TCP/IP. The following pages list all available serial commands for the EL-4KM-V44 Matrix. Details of RS232 pin assignment can be found on page 05. Commonly used Serial commands:...
  • Page 16 EL-4KM-V44-KIT USER MANUAL RS232 and Telnet Commands (Continued) RS232 Command Description Set OUTPUT:xx From INPUT:yy Copy EDID from output (yy) to input (xx) EDID xx CPyy Both yy & xx can be set individually (01-08) or as ALL (00) Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...04]: Select One INPUT Port...

  • Page 17: Infrared Commands

    EL-4KM-V44-KIT USER MANUAL Infrared Commands 4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016...
  • Page 18 EL-4KM-V44-KIT USER MANUAL Infrared Commands 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 INPUT UP...

  • Page 19: Web Browser Interface

    The EL-4KM-V44 Matrix must be connected to an active network router/switch and it is advised that the Matrix is given a static IP address. You can configure the network settings of the Matrix using the Web Browser Interface (ELAN Matrix products are shipped with the network set to...
  • Page 20 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International web: 1 (707) 283-5901 - Fax elanhomesystems.com © 2017 ELAN is a registered trademark of Core Brands, LLC. 10014815 Rev-C0, 04/2017 ®...
