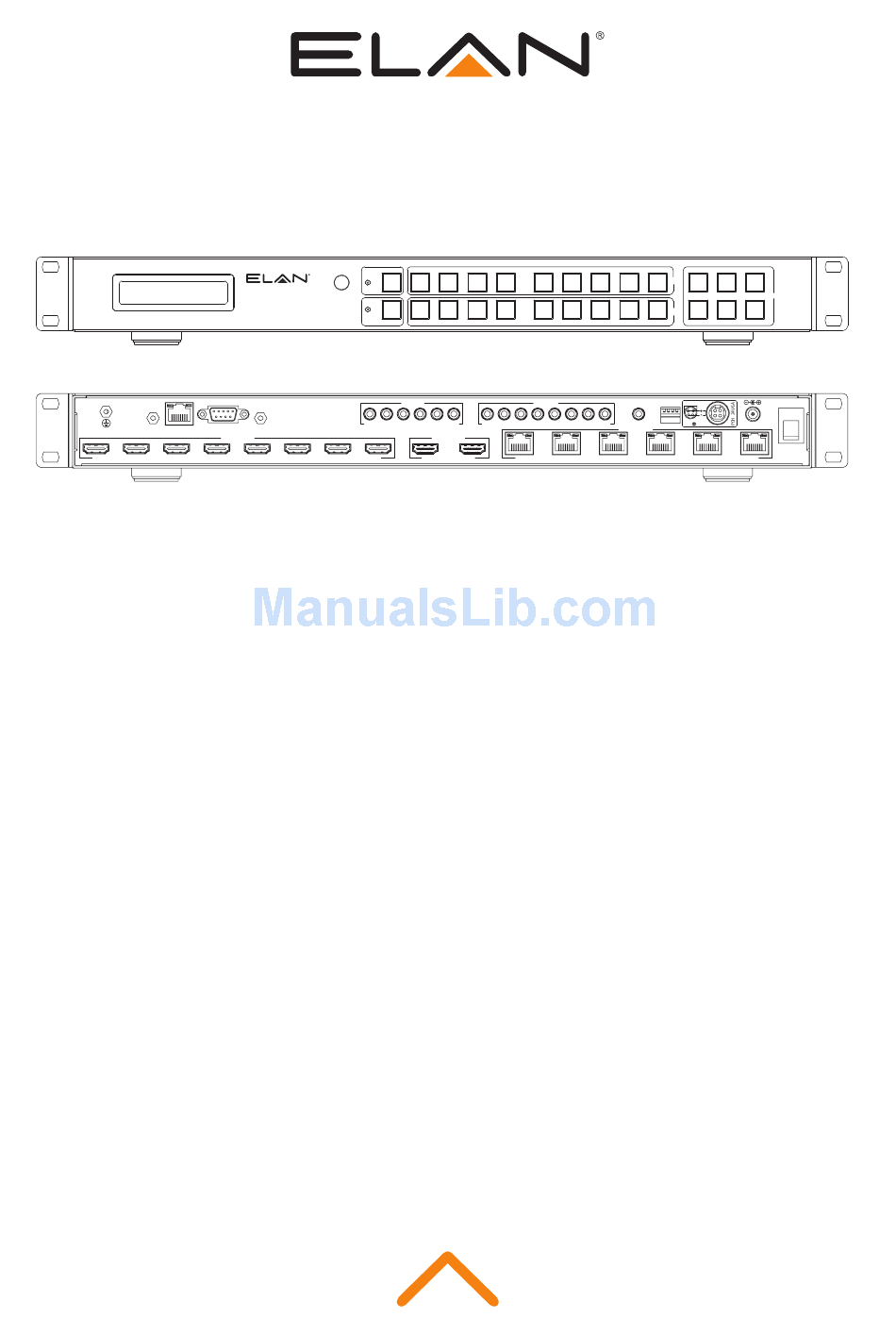

- Page 1 IR Input IR Output IR Ext. EDID On/Off EL-4KM-V88 Power12V RS-232 HDBT Output TCP/IP HDMI Input HDMI Output Power Menu EDID VideoMatrix Lock Select Down Enter IR Input IR Output IR Ext. EDID On/Off EL-4KM-V88 Power12V RS-232 HDBT Output TCP/IP...
-
Page 2: Panel Descriptions
Do not substitute or use any other power supply other than the enclosed unit, or a RS-232 and Telnet Commands 14-15 ELAN approved replacement. Do not disassemble either the Transmitter or Infrared Commands 16-18 Receiver units for any reason. Doing so will void the manufacturer’s warranty. -
Page 3: Introduction
The ELAN 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The EL-4KM-V88 is a 4K HDCP 2.2 8x8 matrix with a combination of 6 x HDBaseT™ and 2 x HDMI outputs. This allows for cost-effective integration of local displays or AV receivers within an installation. - Page 4 HDMI inputs 1 to 8 – Connect HDMI computer or control processor. IR input for matrix control – For hard sources. Power Menu wired IR connection. Connect to ELAN IR inputs – 3.5mm stereo jack. HDMI outputs 1 to 2 – Output for EDID control processor. VideoMatrix Transmits IR to the zone HDBaseT displays.
- Page 5 Lock Select Down Enter There is no IR routing for outputs 1 & 2 on the EL-4KM-V88 Matrix as these are HDMI outputs only and designed for connection to local displays/hardware. TCP/IP The ELAN EL-4KM-V88 can be controlled via TCP/IP.
-
Page 6: Hdbaset Receiver Options
HDMI Out HDMI LINK IR RX IR TX RS-232 HDMI Out * Note - Other HDBaseT receivers will work with the HDBaseT outputs of the ELAN EL-4KM-V88 but some features of these receivers may not be supported by the Matrix. www.elanhomesystems.com... -
Page 7: Matrix Front Panel Control
EL-4KM-V88 USER MANUAL Matrix Front Panel Control Front Panel Display - Input/Output selection The following display shows current source input selection per zone output. 1. To change input selection first press ‘OUTPUT’ button (1-8) 2. Press desired ‘INPUT’ button (1-8) 3. -
Page 8: Rj45 Pin-Out
Terminating HDBaseT CAT cable It is important that the interconnecting CAT cable between the ELAN HDBaseT products is terminated using the correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference). - Page 9 The ELAN range of HDMI matrix products include multiple options for control and routing of IR. IMPORTANT: The ELAN HDMI Platinum, Matrix, & HDBaseT product lines utilize 5 volts to power an IR Receiver on the IR Input and include an EL-4KACC-IR-CAB, 3.5mm Mono to 3.5mm Stereo 5v to 12v IR converter cable. This cable is required when using 12v IR products from Xantech, Niles, and SpeakerCraft.
-
Page 10: Infrared (Ir) Control
The ELAN EL-4KM-V88 Matrix is supplied with one IR Remote Control for source selection and general setup. As well as controlling matrix solutions using the original ELAN remote the ELAN products can be controlled using the original Infrared codes shown at the rear of this manual. -
Page 11: Edid Control
Using Supplied ELAN Matrix IR Remote Control (For further details see page 10) Using dip-switches on the rear panel of the EL-4KM-V88 Matrix. Please see below table for global EDID settings. *Note - Once dip-switch settings have been made the EL-4KM-V88 must be power cycled for settings to be applied. -
Page 12: Connection Diagram
EL-4KM-V88 USER MANUAL CONNECTION DIAGRAM ZONE 03 ZONE 04 ZONE 05 ZONE 06 ZONE 07 ZONE 08 SOURCE 01 SOURCE 02 70m max SOURCE 03 SOURCE 04 SOURCE 05 SOURCE 06 SOURCE 07 SOURCE 08 www.elanhomesystems.com... -
Page 13: Specifications
Power Supply: 12V/5A DC (main) & 24V/6A DC (POH) NOTE: Specifications are subject to change without notice. Package Contents: • 1 x EL-4KM-V88 • 1 x Rack mounting kit • 1 x 24V/6A power supply • 1 x 12V/5A power supply •... -
Page 14: Rs-232 And Telnet Commands
USER MANUAL RS-232 and Telnet Commands The ELAN EL-4KM-V88 can be controlled via serial and TCP/IP. The following pages list all available serial commands for the EL-4KM-V88 Matrix. Details of RS-232 pin assignment can be found on page 05. Commonly used Serial commands:... - Page 15 EL-4KM-V88 USER MANUAL RS-232 and Telnet Commands (Continued) RS-232 COMMAND DESCRIPTION Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...08]: Select One INPUT Port yy=[01...08]: Select One OUTPUT Port zz=00: HDMI 1080p@60Hz, Audio 2CH PCM zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD...
-
Page 16: Infrared Commands
EL-4KM-V88 USER MANUAL Infrared Commands 8X8 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F... - Page 17 EL-4KM-V88 USER MANUAL Infrared Commands 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F INPUT 2 0016 003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016...
- Page 18 EL-4KM-V88 USER MANUAL Infrared Commands 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 1080P 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016...
-
Page 19: Canada, Industry Canada (Ic) Notices
The ELAN EL-4KM-V88 matrix unit can be both controlled and configured using the in-built web-server. The EL-4KM-V88 Matrix must be connected to an active network router/switch and it is advised that the Matrix is given a static IP address. You... - Page 20 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International web: 1 (707) 283-5901 - Fax elanhomesystems.com © 2017 ELAN is a registered trademark of Core Brands, LLC. 10014816 Rev-C0, 04/2017 ®...
