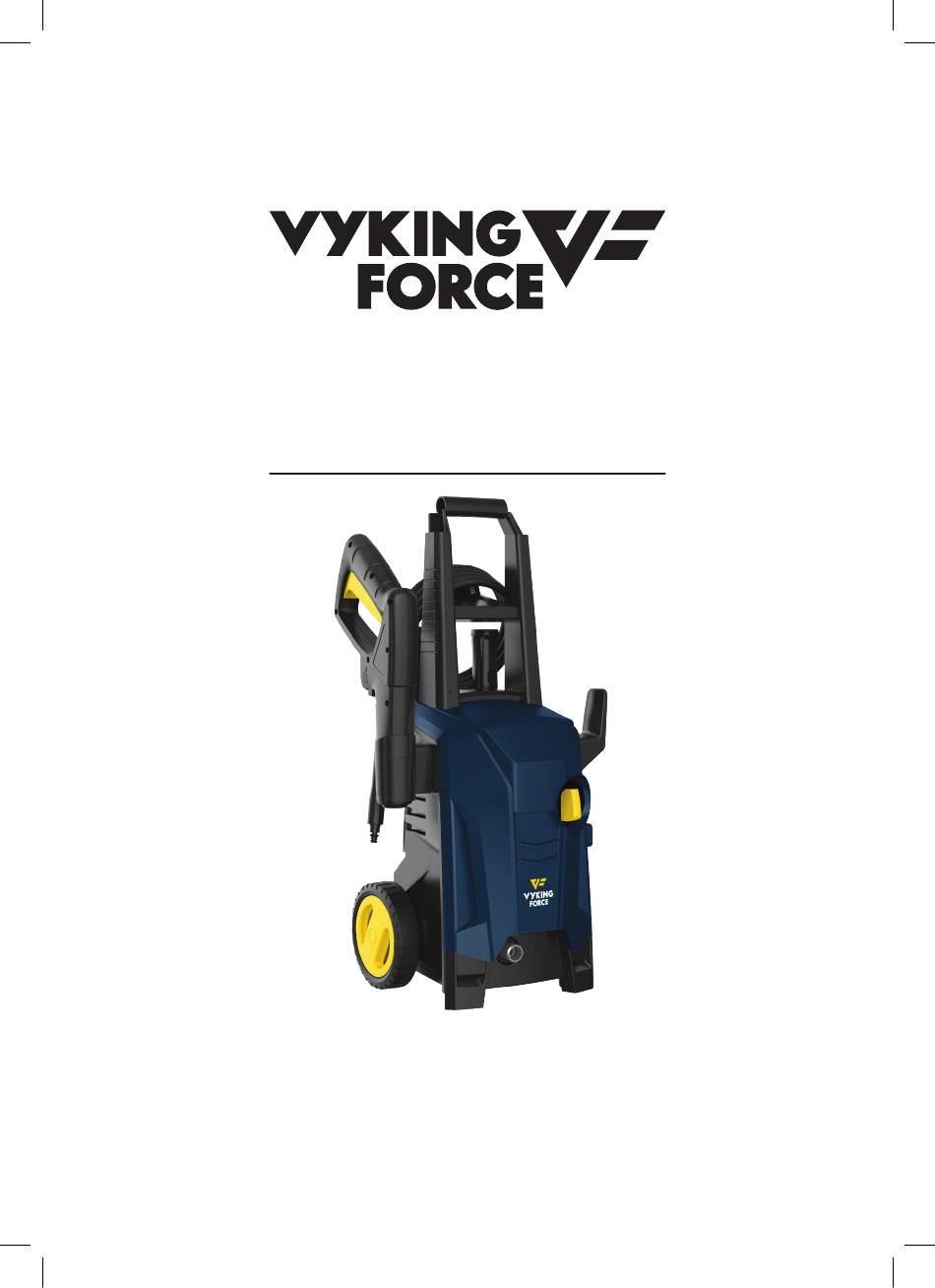

- Page 1 INSTRUCTION MANUAL PRESSURE WASHER VF1450B To prevent serious injury, read and understand all warnings and instructions before use. Keep these instructions safe for future use.
-
Page 2: Table Of Contents
CONTENTS Key features Safety instructions Proper use Description of appliance Technical specifications Assembly Start up Operation Transportation Storage Care and maintenance Troubleshooting Accessories Warranty... -
Page 3: Key Features
PRESSURE WASHER 1450B KEY FEATURES • MAX PRESSURE: 1450PSI / 10 Mpa • MAX FLOW RATE: 6.2 L/MIN • MOTOR: 1400 WATT • HOSE: 5 M • WARRANTY: 2 YEAR IMPORTANT SAFETY INSTRUCTIONS !DSAVE THESE INSTRUCTIONS Please read and comply with these instructions prior to the initial operation of your appliance and store them for later use or subsequent owners. - Page 4 Electric components !DANGER Risk of electric shock. Never touch the mains plug and the socket with wet hands. Check the power cord with mains plug for damage prior to every use. Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.
- Page 5 PRESSURE WASHER 1450B components. Do not operate appliance with damaged components. High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself. Do not direct the jet against yourself or others in order to clean clothes or footwear. Do not use the appliance within range of other people unless they are wearing protective clothing.
- Page 6 Keep plastic packaging away from children, there is a risk of suffocation! !WARNING According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. Ensure that the connection of your building water installation, on which the high-pressure washer is operated, is equipped with a system separator.
- Page 7 PRESSURE WASHER 1450B should grounding means be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system and should only be done by qualified service personnel. Replacement parts for a double-insulated product must be identical to the original parts. A double-insulated product is marked with the words “Double Insulation”...
- Page 8 Personal protective equipment !CAUTION Wear protective clothing and safety goggles to protect against splash back containing water or dirt. During the use of high-pressure washers’ aerosols can develop. Inhaling aerosols can cause health damage. —Depending on the application, completely shielded nozzles (e.g. surface cleaner) that significantly reduce the emission of aqueous aerosols can be used for high-pressure cleaning.
-
Page 9: Proper Use
PRESSURE WASHER 1450B PROPER USE Use this pressure washer for private households only. If connection is made to a potable water system, the system shall be protected against backflow. This high-pressure washer is designated with a rated input current. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Model VF1450B Voltage 220 - 240V~ 50Hz Power 1400 WATT Max Pressure 1450 PSI / 10 Mpa Max Flow Rate 6.2 L/MIN Hose Length Max Inlet Water Pressure 101 PSI / 0.7 Mpa Cable Length Motor Type CARBON BRUSH... - Page 11 PRESSURE WASHER 1450B 2. Slide the trigger gun holder into position on right of unit 3. Slide the power cord hook into position on left of unit 4. Install the Spray wand holder with screws provided...
- Page 12 5. Install the lance Fit the mid lance into the gun and rotate it until the two parts are completely locked. Then do the same for the variable lance 6. Connect the high-pressure hose to the trigger gun Connect the silver end of the high-pressure hose to the trigger gun and twist the nut as indicated to secure the connection.
-
Page 13: Start Up
PRESSURE WASHER 1450B 8. Connect the garden hose to the water inlet Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, and then thread your garden hose (male end) into the garden hose adaptor. START UP Park the appliance on an even surface. -
Page 14: Operation
OPERATION ATTENTION Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in “Troubleshooting”. High pressure operation !CAUTION Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to... - Page 15 PRESSURE WASHER 1450B • Release the trigger. • Turn on the switch “OFF/ON”. • Hold the spray gun with both hands. Direct the water jet to the object to be cleaned and press the trigger. Release the lever of the trigger gun; the device will switch off again and stop the water jet.
-
Page 16: Transportation
• Press the lever of the trigger gun to release any remaining pressure in the system. • Release the lever of the trigger gun. • Lock the lever of the trigger gun. ATTENTION • When disconnecting the supply or high-pressure hose, warm water may leak from the connection after operation. - Page 17 PRESSURE WASHER 1450B Consider the weight of the appliance when storing it. Storing the appliance • Park the machine on an even surface. • Detach spray lance from the trigger gun. • Push the disconnect button on the trigger gun to disconnect the high pressure hose. •...
-
Page 18: Care And Maintenance
• Store the appliance and all accessories in a frost-free room. CARE AND MAINTENANCE !DANGER Risk of electric shock Prior to all work on the appliance, switch off the appliance and unplug from the mains outlet. High pressure hose The high-pressure hose is specially constructed with reinforced walls; it can be easily damaged and should be stored carefully. - Page 19 PRESSURE WASHER 1450B Clean the nozzle with the needle cleaning tool provided. Remove the spray wand from the gun. Remove any dirt from the nozzle hole and rinse. ATTENTION • The cleaning tool must not be damaged. • If it becomes stuck pull the cleaning tool out using flat pliers.
-
Page 20: Troubleshooting
TROUBLESHOOTING DANGER Risk of electric shock. Turn off the appliance and remove the main plug prior to performing any care and maintenance work. Repair work and work on the electrical components may only be performed by an authorized agent or electrician. You can rectify minor faults yourself with the help of the following overview. - Page 21 PRESSURE WASHER 1450B Symptom Cause Reccomended Action Machine refuses to start Machine not plugged in Plug in machine Defective socket Try another socket Fuse has blown Replace fuse. Switch off other machines. Defective extension cord Try without the extension cord Fluctuating pressure Pump sucking air Check that hoses and...
-
Page 22: Accessories
WARRANTY Thank you for purchasing this Vyking Force product. This warranty is provided by Automotive Brands Group of 76-92 Station Street Nunawading VIC 3131. Ph. +61 3 8878 1111... - Page 23 PRESSURE WASHER 1450B...
- Page 24 Automotive Brands Group Pty Ltd. 76-92 Station St Nunawading VIC 3131 VykingForce is a registered trademark of the Automotive Brands Group Pty Ltd. VYKINGFORCE.COM...
