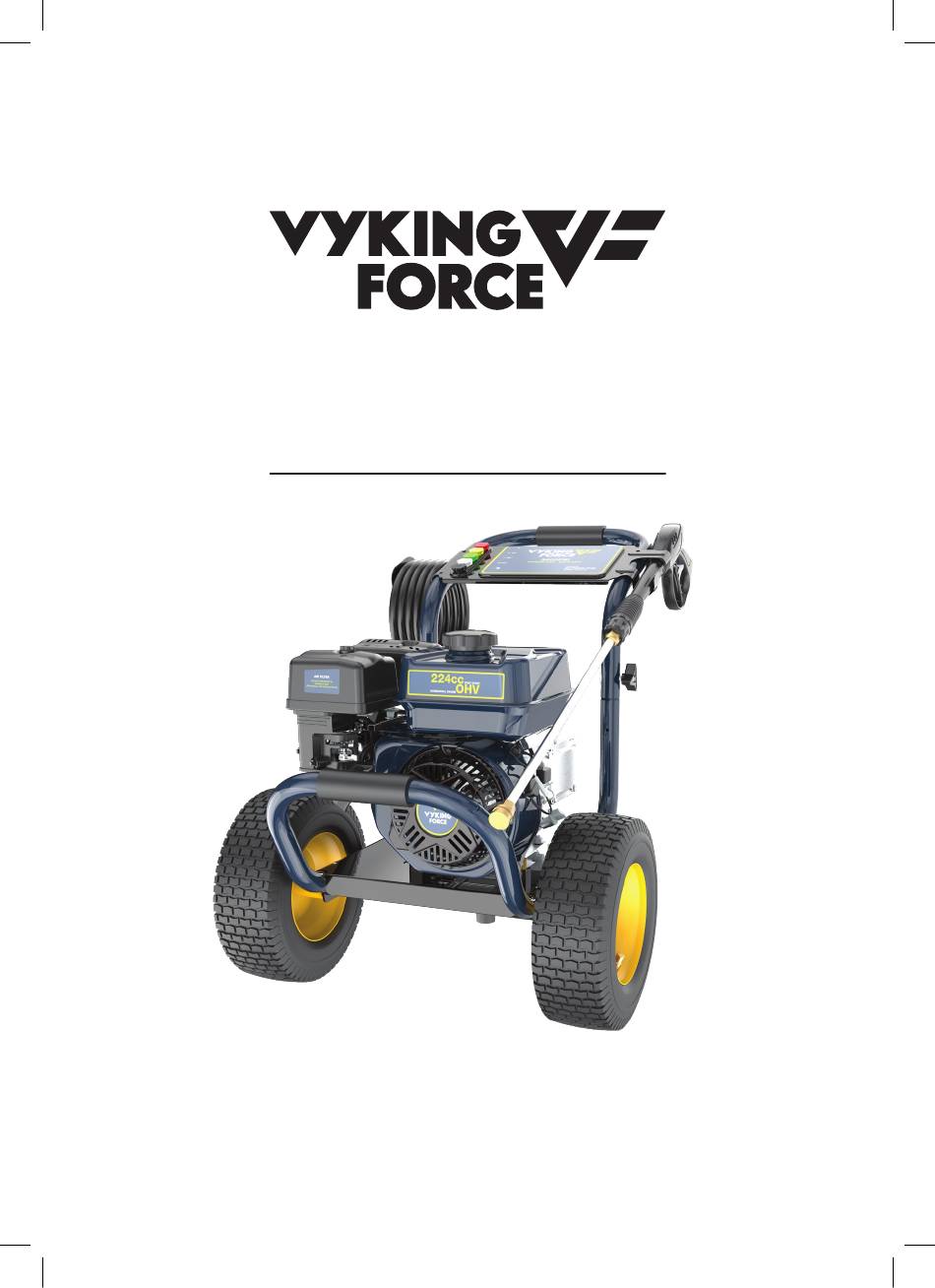

INSTRUCTION
MANUAL
PRESSURE WASHER VF3600P
To prevent serious injury, read and understand all warnings and
instructions before use. Keep these instructions safe for future
use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VF3600P and is the answer not in the manual?

Questions and answers

Related Manuals for VYKING FORCE VF3600P

Summary of Contents for VYKING FORCE VF3600P

  • Page 1 INSTRUCTION MANUAL PRESSURE WASHER VF3600P To prevent serious injury, read and understand all warnings and instructions before use. Keep these instructions safe for future use.

  • Page 2: Table Of Contents

    CONTENTS PACKING LIST HAZARD SIGNAL WORD DEFINITION SAFETY SIGNS GENERAL SAFETY RULES FOR OPERATION ADDITIONAL PRECAUTIONS COMPONENT IDENTIFICATION ASSEMBLY ADJUSTMENTS OPERATION MAINTENANCE & STORAGE TROUBLESHOOTING MAINTENANCE LOG ENGINE RECOMMENDED OIL TYPE WARRANTY INFORMATION...
  • Page 3 Petrol Pressure Cleaner User’s Manual VF3600P About your pressure cleaner Thank you for purchasing this Vyking Force Petrol Pressure Cleaner. This cold water petrol pressure washer is ideal for professionals. The quality Annovi Reverberi pump, the steel frame, steel armed hose and pneumatic wheels make this perfect for general cleaning by tradies and residential use.
  • Page 4 RSV3G30D+F25 Pump type Annovi Reverberi triplex brass head & ceramic pistons Pump oil type SAE 15W40 300ml Engine type Vyking Force 4 stroke air cooled OHV Engine horsepower 8 HP Engine RPM 3600 RPM Engine displacement 224cc Spark plug type...

  • Page 5: Packing List

    PRESSURE WASHER 3600P Vyking Force is constantly improving its products. All information in this manual is based on the latest product information available at the time of printing. The specifications outlined herein are subject to change without prior notice or obligation. The purchaser and/or user shall assume liability for any modification and/or alterations of this equipment from original design and manufacture.

  • Page 6: Hazard Signal Word Definition

    Hazard signal word definitions This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.

  • Page 7: General Safety Rules For Operation

    PRESSURE WASHER 3600P to the unit are always present and legible; otherwise, fit replacements in the original positions. The high-pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself. The appliance must not be directly connected to the public drinking water network.
  • Page 8 Save all warnings and instructions for future reference. This equipment is to be only used for the purpose for which it is designed and intended. TO AVOID DAMAGING THE PRESSURE WASHER DURING USE it is critical to adhere to the pump precautions, engine precautions and pre-start inspection. Seek assistance if required when moving or lifting the pressure washer.
  • Page 9 PRESSURE WASHER 3600P • For your own safety, do not operate your pressure washer until it is completely assembled and installed according to the instructions and until you have read and understood all of the safety guidelines. Pressure washer safety rules •...
  • Page 10 • ALWAYS spray the ground to test pressure. • NEVER exceed the recommended pressure rating of the unit. • NEVER change quick couplers with the nozzle under pressure & without the gun safely in the lock position. • NEVER spray water directly at the pressure washer. •...

  • Page 11: Additional Precautions

    PRESSURE WASHER 3600P Service • Have your pressure washer serviced by a qualified repair person using only factory approved replacement parts. This will ensure that the safety of the pressure washer is maintained. Incorrectly fitted parts will void your warranty. •...
  • Page 12 • NEVER run dirty water through the pump. • Check the supplied inline filter is connected to the pump inlet, and that it is not clogged and in good working condition. • NEVER run caustic (lye) or acidic substances through the pump. •...

  • Page 13: Component Identification

    PRESSURE WASHER 3600P Component identification...

  • Page 14: Assembly

    Assembly Remove the spark plug lead/wire prior to DANGER performing any work or assembly of this pressure washer. Install Handle (See fig 1 & 2) • Install the wheel assembly into the frame sleeve on the side of the fuel tank. The wheel spring button is aligned with the casing hole and pops out.
  • Page 15 PRESSURE WASHER 3600P Fitting the pressure release caps To prevent oil leaks, the appliance is delivered with the oil intakes sealed with red caps which must be replaced with the pressure release caps supplied. Engine Read the operating instructions in the engine DANGER section of this manual before start-up and follow the safety instructions carefully.

  • Page 16: Adjustments

    1. Place the appliance as close to the water supply system as possible. 2. Connection to the mains water supply. The appliance may only be connected directly to the mains water supply if the supply hose is fitted with a backflow preventer valve as per current regulations in force.

  • Page 17: Operation

    PRESSURE WASHER 3600P to the work area it can be used as a chisel or scraper to remove dirt & debris such as peeled paint or mildew. Green Nozzle = 25° Known as the wash tip it has a medium fan for multi-purpose application. It delivers medium impact pressure and cleaning coverage.
  • Page 18 8. Check the pump is primed & air is purged from lines by squeezing the spray gun trigger allowing water to flow through the pump. YOU WILL DAMAGE THE PUMP IF THIS STEP IS NOT PERFORMED BEFORE STARTING THE ENGINE. Pressure washer start up Before starting up the pressure washer check WARNING...
  • Page 19 PRESSURE WASHER 3600P 5. Effective cleaning depends on both the pressure and volume of the water used, to the same degree. 6. When not spraying, use the spray gun safety catch/safety lock to prevent accidental high pressure discharge. Stop the engine During operation the pressure washer must be WARNING positioned on a firm, stable surface.

  • Page 20: Maintenance & Storage

    PERIODIC MAINTENANCE ITEM REMARKS Pre- Initial 1 Every 3 Every 6 Every 12 operation month or months months months check 20 Hrs or 50 Hrs or 100 or 300 (daily) Water Inlet Check/clean water inlet Hose Check pressure hose for leaks Spray gun Check spray...
  • Page 21 PRESSURE WASHER 3600P ITEM REMARKS Pre- Initial 1 Every 3 Every 6 Every 12 operation month or months months months check 20 Hrs or 50 Hrs or 100 or 300 (daily) Fuel inline Check fuel hose for crack or damage. Replace if necessary Exhaust...
  • Page 22 Go to engine section of this manual for additional maintenance instructions. CLEANING THE NOZZLE Disconnect the lance from the nozzle. Remove any dirt deposits from the nozzle hole using the nozzle cleaning tool. CLEANING THE FILTER Inspect the inlet filter and detergent filter (if fitted) before each use, and clean in accordance with the instructions in the engine section of this manual if necessary.

  • Page 23: Troubleshooting

    PRESSURE WASHER 3600P Troubleshooting ISSUE POSSIBLE CAUSES CORRECTIVE ACTION Nozzle worn Replace nozzle Water filter fouled Clean filter Insufficient water supply Turn on water supply tap fully Air being sucked into Check tightness of hose Pump does not reach system fittings working pressure Air in pump...
  • Page 24 ISSUE POSSIBLE CAUSES CORRECTIVE ACTION Oil leakages Seals worn Contact your nearest Authorised Service Centre Adjustable nozzle on high Use correct nozzle for the pressure setting application Detergent too dense Dilute with water High pressure hose Fit original hose No detergent sucked in extension being used Deposits or restriction in Flush with clean water and...

  • Page 25: Maintenance Log

    PRESSURE WASHER 3600P Maintenance log Your Vyking Force pressure washer is protected by our warranty that covers the product for normal use. The warranty statement is found on the back of this manual. You must understand that negligence or misuse is not covered in the warranty and failure to properly maintain and service the pressure washer can void your warranty.

  • Page 26: Engine

    Engine- 224cc Symbols associated with this engine Features and controls Compare the illustration with your engine to familiarize yourself with the location of various features and controls. A Air cleaner B Muffler Muffler Guard (Optional) C Spark plug E Recoil starter F Engine switch G Breaker (Electric start type only)
  • Page 27 N Engine identification O Dipstick P Drain plug Safety CAUTION This Vyking Force engine is shipped from us without oil. If you start the engine without oil, the engine will be damaged beyond repair and will not be covered under warranty.
  • Page 28 Petrol and its vapours are extremely flammable WARNING and explosive. Fire or explosion can cause severe burns or death. When adding fuel • Turn engine OFF and let engine cool at least 2 minutes before removing petrol cap. • Fill fuel tank outdoors or in well-ventilated area. •...
  • Page 29 PRESSURE WASHER 3600P Starting engine creates sparking. WARNING Sparking can ignite nearby flammable gases. Explosion and fire could result. • If there is natural or LP gas leakage in area, do not start engine. • Do not use pressurized starting fluids because vapors are flammable. Rapid retraction of starter cord (kickback) will WARNING pull hand and arm toward engine faster than...
  • Page 30 Allow muffler, engine cylinder and fins to cool WARNING before touching. Remove accumulated debris from muffler area and cylinder area. Install and maintain in working order a spark arrester before using equipment on forest- covered, grass-covered, brush-covered unimproved land. How to start the engine Petrol and its vapors are extremely flammable WARNING and explosive.
  • Page 31 PRESSURE WASHER 3600P 1. Check the oil level. See the How to Check/Add Oil section. 2. Move the fuel lever (I) to the ON position. 3. Move the choke lever (J) to the choke CLOSED position. Note: Choke is usually unnecessary when restarting a warm engine.

  • Page 32: Recommended Oil Type

    Recommended oil type Oil Recommendations We recommend the use of our Vyking Force power equipment oil SAE 30 SJ/CF (Part No VF30184) for best performance. Other high-quality oils are acceptable if classified for service SF, SG, SH. SJ or higher.
  • Page 33 PRESSURE WASHER 3600P NOTE: Below 4°C the use of SAE 30 will result in hard starting. Above 27° C the use of 10W-30 may cause increased oil consumption. Check oil level more frequently. Before adding or checking the oil • Place engine level. •...
  • Page 34 Fill oil to the bottom lip of the dipstick Fuel Recommendations Fuel must meet these requirements: · • Clean, fresh, unleaded petrol. • A minimum of 91 octane 91 RON is recommended. High altitude use, see below. • Petrol with up to 10% ethanol (gasohol) or up to 15% MTBE (methyl tertiary butyl ether) is acceptable.
  • Page 35 PRESSURE WASHER 3600P When Adding Fuel • Turn engine off and let engine cool at least 2 minutes before removing the fuel cap. • Fill fuel tank outdoors or in well ventilated area. • Do not overfill fuel tank. Fill tank to approximately 38 mm below top of neck to allow for fuel expansion.
  • Page 36 Before performing adjustments or repairs: • Disconnect the spark plug wire and keep it away from the spark plug. • Use only correct tools. • Do not tamper with governor spring, links or other parts to increase engine speed. • Replacement parts must be the same and installed in the same position as the original parts.
  • Page 37 PRESSURE WASHER 3600P How to Replace the Spark Plug Check the gap (A) with a wire gauge (B). If necessary, reset the gap. Install and tighten the spark plug to the recommended torque. For gap setting or torque, see the Specifications section.
  • Page 38 How to Service the Air Filter (see figure 2 ) 1. Remove the air cleaner outside cover (A). Be careful to prevent dirt and debris from falling into the air cleaner assembly. 2. Separate the Air Filter (A) from the Air Filter Housing (B). 3.
  • Page 39 PRESSURE WASHER 3600P When you drain the oil from the oil drain plug, WARNING the fuel tank must be empty or fuel can leak out and result in fire or explosion. To empty the fuel tank, run engine until it stops from lack of fuel. How to Service the Battery -see figure 4 (if applicable) Be careful not to connect the battery in reverse WARNING...
  • Page 40 1% for each 5.6 degrees Celsius above 25 degrees Celsius. The engine will operate satisfactorily at an angle up to 15 degrees. We recommend that you see an authorized dealer for all maintenance and service of the engine and engine parts. Use only genuine Vyking Force parts.

  • Page 41: Warranty Information

    PRESSURE WASHER 3600P Warranty Thank you for purchasing this Vyking Force product. This warranty is provided by Automotive Brands Group of 76-92 Station Street Nunawading VIC 3131. Ph. +61 3 8878 1111 Except for any defects caused by an accident, misuse, abuse, improper installation or...
  • Page 43 PRESSURE WASHER 3600P...
  • Page 44 Automotive Brands Group Pty Ltd. 76-92 Station St Nunawading VIC 3131 VykingForce is a registered trademark of the Automotive Brands Group Pty Ltd. VYKINGFORCE.COM...
