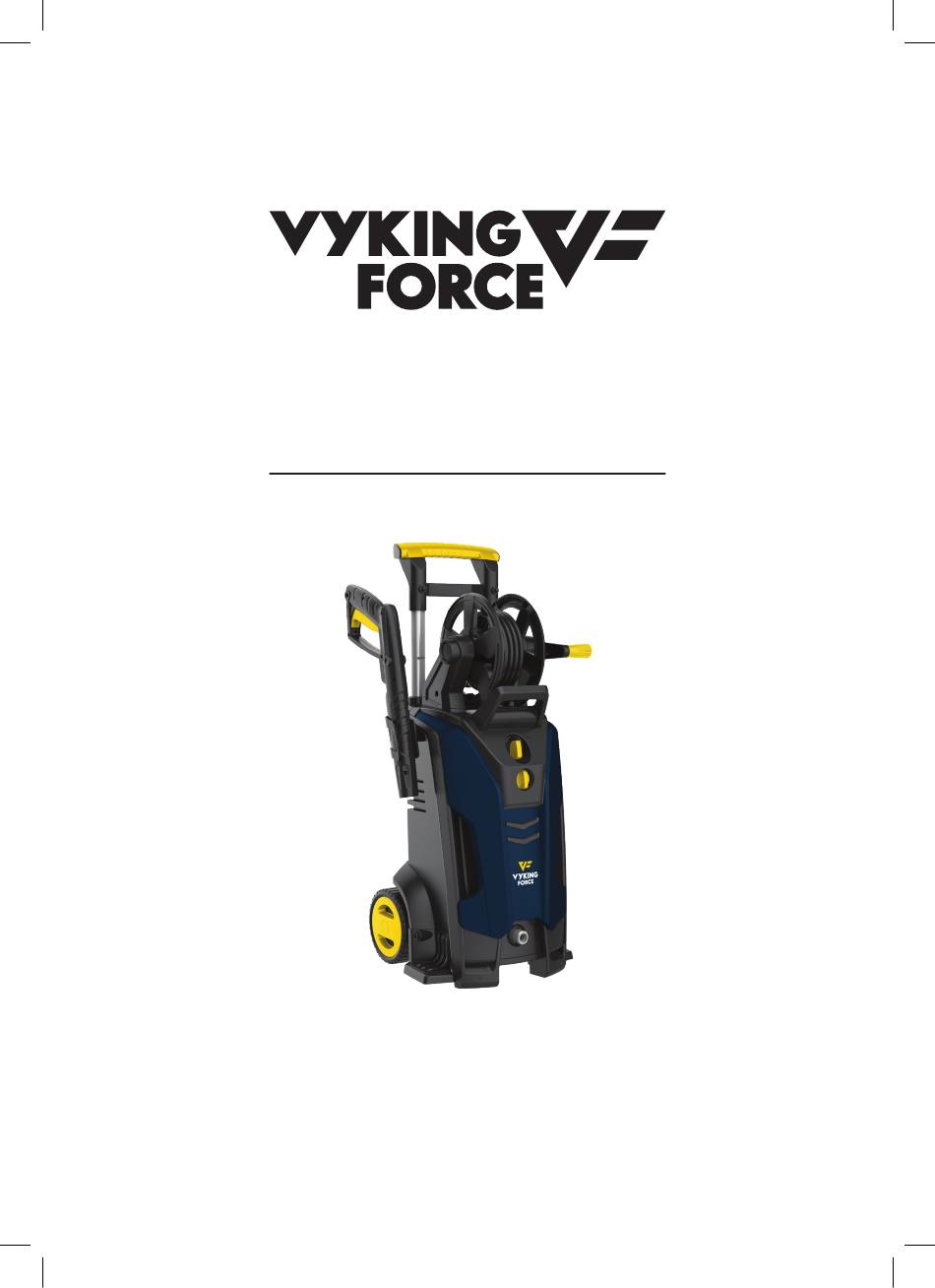

- Page 1 INSTRUCTION MANUAL PRESSURE WASHER VF2030B To prevent serious injury, read and understand all warnings and instructions before use. Keep these instructions safe for future use.
-
Page 2: Table Of Contents
CONTENTS Key features Safety instructions Proper use Description of appliance Technical specifications Assembly Start up Operation Transportation Storage Care and maintenance Troubleshooting Accessories Warranty... -
Page 3: Key Features
PRESSURE WASHER 2030B KEY FEATURES • MAX PRESSURE: 2030 PSI / 14 Mpa • MAX FLOW RATE: 7 L/MIN • MOTOR: 1800 WATT • HOSE: 8 M STEEL BRAIDED • WARRANTY: 2 YEAR IMPORTANT SAFETY INSTRUCTIONS !DSAVE THESE INSTRUCTIONS Please read and comply with these instructions prior to the initial operation of your appliance and store them for later use or subsequent owners. - Page 4 Electric components !DANGER Risk of electric shock. Never touch the mains plug and the socket with wet hands. Check the power cord with mains plug for damage prior to every use. Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.
- Page 5 PRESSURE WASHER 2030B components. Do not operate appliance with damaged components. High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself. Do not direct the jet against yourself or others in order to clean clothes or footwear. Do not use the appliance within range of other people unless they are wearing protective clothing.
- Page 6 Keep plastic packaging away from children, there is a risk of suffocation! !WARNING According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. Ensure that the connection of your building water installation, on which the high-pressure washer is operated, is equipped with a system separator.
- Page 7 PRESSURE WASHER 2030B should grounding means be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system and should only be done by qualified service personnel. Replacement parts for a double-insulated product must be identical to the original parts. A double-insulated product is marked with the words “Double Insulation”...
- Page 8 Personal protective equipment !CAUTION Wear protective clothing and safety goggles to protect against splash back containing water or dirt. During the use of high-pressure washers’ aerosols can develop. Inhaling aerosols can cause health damage. —Depending on the application, completely shielded nozzles (e.g. surface cleaner) that significantly reduce the emission of aqueous aerosols can be used for high-pressure cleaning.
-
Page 9: Proper Use
PRESSURE WASHER 2030B PROPER USE Use this pressure washer for private households only. If connection is made to a potable water system, the system shall be protected against backflow. This high-pressure washer is designated with a rated input current. The intended use of this product covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water and biodegradable chemical detergents. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Model VF2030B Voltage 220 - 240V~ 50Hz Power 1800 WATT Max Pressure 2030 PSI / 14 Mpa Max Flow Rate 7 L/MIN Hose Length Max Inlet Water Pressure 101 PSI / 0.7 Mpa Cable Length Motor Type CARBON BRUSH... - Page 11 PRESSURE WASHER 2030B 2. Slide the trigger gun holder into position on right of unit with screw provided 3. Install the lance protectors with screws provided 4. Install the lance Fit the lance into the gun and screw in until the two parts are completely locked...
-
Page 12: Start Up
5. Connect the high-pressure hose to the trigger gun Connect the silver end of the high-pressure hose to the trigger gun and screw in the hose as indicated to secure the connection 6. Connect the garden hose to the water inlet Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, and then thread your garden hose (male end) into the garden hose adaptor START UP... -
Page 13: Operation
PRESSURE WASHER 2030B Impurities in the water can damage the high-pressure pump and the accessories. Supply water from mains outlet. DO NOT draw in water from open reservoirs. This high-pressure washer is suited to work with a suction hose with backflow valve to draw in surface water, e.g. - Page 14 ATTENTION • The washer must be used on a secure and stable surface in a standing, upright position. • Connect the product to power and water supply as described. • Open the water supply. • Hold the spray gun with both hands. •...
- Page 15 PRESSURE WASHER 2030B • Hold the spray gun with both hands. Direct the water jet to the object to be cleaned and press the trigger. Release the lever of the trigger gun and the device will switch off again and stop the water jet.
- Page 16 • Adjusting from min to max can change the flow of detergent. After operation with detergent • Remove the hose, clean detergent from the intake and close it with the lid. • For storage, put the detergent bottle into the retainer with the cap pointing up. Interrupting operation •...
-
Page 17: Transportation
PRESSURE WASHER 2030B • Release the lever of the trigger gun. • Lock the lever of the trigger gun. ATTENTION • When disconnecting the supply or high-pressure hose, warm water may leak from the connection after operation. • Detach the appliance from the water supply. TRANSPORTATION !CAUTION Risk of personal injury or damage! - Page 18 Storing the appliance • Park the machine on an even surface. • Detach spray lance from the trigger gun. • Unscrew the high pressure hose on the trigger gun. • Place trigger gun into gun storage. • Put variable & turbo spray lance into accessory storage. •...
-
Page 19: Care And Maintenance
PRESSURE WASHER 2030B CARE AND MAINTENANCE !DANGER Risk of electric shock Prior to all work on the appliance, switch off the appliance and unplug from the mains outlet. High pressure hose The high-pressure hose is specially constructed with reinforced walls; it can be easily damaged and should be stored carefully. -
Page 20: Troubleshooting
Clean the nozzle with the needle cleaning tool provided. Remove the spray wand from the gun. Remove any dirt from the nozzle hole and rinse. ATTENTION • The cleaning tool must not be damaged. • If it becomes stuck pull the cleaning tool out using flat pliers. TROUBLESHOOTING !DANGER Risk of electric shock. - Page 21 PRESSURE WASHER 2030B Symptom Cause Reccomended Action Machine refuses to start Machine not plugged in Plug in machine Defective socket Try another socket Fuse has blown Replace fuse. Switch off other machines. Defective extension cord Try without the extension cord Fluctuating pressure Pump sucking air Check that hoses and...
-
Page 22: Accessories
WARRANTY Thank you for purchasing this Vyking Force product. This warranty is provided by Automotive Brands Group of 76-92 Station Street Nunawading VIC 3131. Ph. +61 3 8878 1111... - Page 23 PRESSURE WASHER 2030B...
- Page 24 Automotive Brands Group Pty Ltd. 76-92 Station St Nunawading VIC 3131 VykingForce is a registered trademark of the Automotive Brands Group Pty Ltd. VYKINGFORCE.COM...
