montpellier MAB144C Installation And Operating Instructions Manual

montpellier MAB144C Installation And Operating Instructions Manual

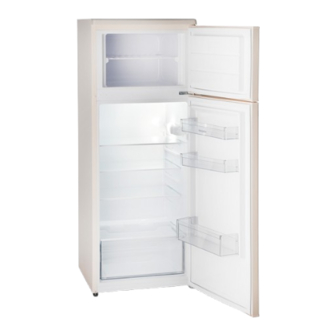

144cm tall retro top mount fridge freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
144cm Tall Retro Top Mount Fridge Freezer
MAB144C - Cream
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions

Advertisement

Table of Contents
loading

Related Manuals for montpellier MAB144C

Summary of Contents for montpellier MAB144C

  • Page 1 Installation and Operating Instructions 144cm Tall Retro Top Mount Fridge Freezer MAB144C - Cream Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Retro Fridge Freezer. Our refrigeration products have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Fridge Freezer to ensure you get the most from your purchase.

  • Page 3: Table Of Contents

    Index BEFORE USING THE APPLIANCE ............2 General warnings ................... 2 Old and out-of-order fridges ................4 Safety warnings ..................... 4 Installing and operating your fridge ..............5 Before Using your Fridge ................5 THE VARIOUS FUNCTION AND POSSIBILITIES ........6 Thermostat Setting ..................

  • Page 4: Before Using The Appliance

    PART - 1. BEFORE USING THE APPLIANCE General warnings WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 5 - bed and breakfast type environments; - catering and similar non-retail applications • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...

  • Page 6: Old And Out-Of-Order Fridges

    Old and out-of-order fridges • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC.

  • Page 7: Installing And Operating Your Fridge

    • Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning. • Do not cover the body or top of fridge with lace. This affects the performance of your fridge. • Fix the accessories in the fridge during transportation to prevent damage to accessories.

  • Page 8: The Various Function And Possibilities

    PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES Thermostat Setting Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment.By rotating the knob from position 1 to 5, colder temperatures can be obtained. Important note: Do not try to rotate knob beyond 1 position it will stop your appliance. •...

  • Page 9: Accessories

    • This appliance is designed for use at an Climate Ambient Temperature (°C) ambient temperature within the 16°C - 43°C Class range. Between 16 and 43 (°C) Between 16 and 38 (°C) Between 16 and 32 (°C) Between 10 and 32 (°C) Accessories Ice tray •...

  • Page 10: Freezer Compartment

    Freezer Compartment • The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes. • To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.

  • Page 11: Cleaning And Maintenance

    PART - 4. CLEANING AND MAINTENANCE • Make sure to unplug the fridge before starting to clean it. • Do not wash your fridge by pouring water onto it. • You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.

  • Page 12: Defrosting

    Defrosting Refrigerator Compartment; • Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evaporating tray and evaporates automatically. • The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

  • Page 13: Replacing The Light Bulb

    Replacing The Light Bulb 1. Unplug the unit from the power supply 2. Remove the screw on the light cover by screw driver. Be careful not to get stripped screw. (a) 3. Press the hooks on the sides of the light cover and remove the light cover. (b) 4.

  • Page 14: Repositioning The Door

    Repositioning the door • It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door. • It is possible to change the opening direction of the door on models without any handles.

  • Page 15: Tips For Saving Energy

    • The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.

  • Page 16: The Parts Of The Appliance And The Compartments

    THE PARTS OF THE APPLIANCE AND THE PART - 7. COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. A. Freezer compartment B. Refrigerator compartment 1. Ice tray 7.
  • Page 17 ELECTRICAL CONNECTION (FOR UK TYPE PLUG) For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse.
  • Page 18 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 19 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
