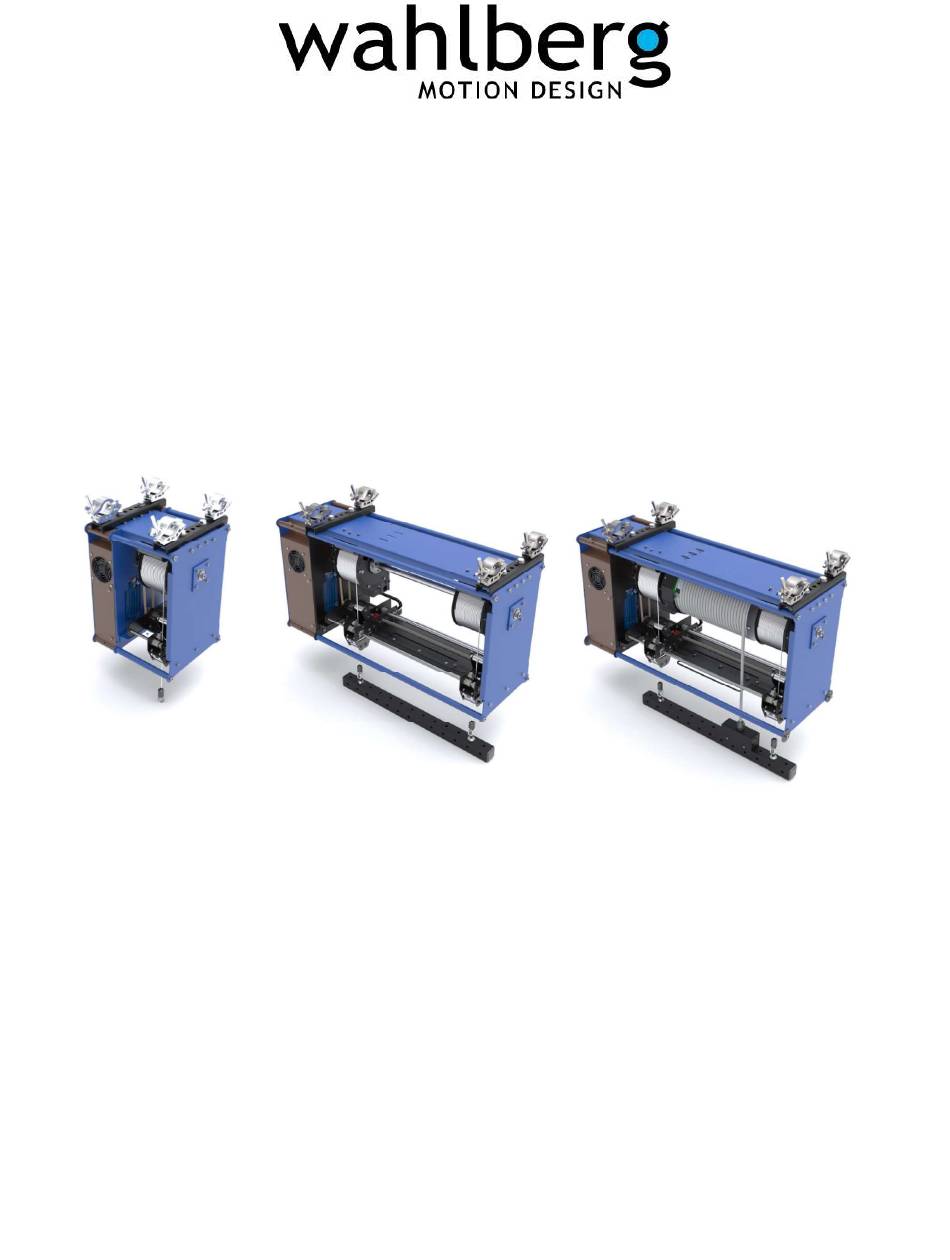

- Page 1 Winch 50 Series Item No. 245, 246.701 and 246.704 User Manual Winch 50 Winch 50 Double Winch 50 Double No. (245) No. (246.701) +Power & Cat5 No. (246.704) WWW.WAHLBERG.DK JENS JUULS VEJ 1 TELEPHONE: +45 86 18 14 20 8260 VIBY EMAIL: sales@wahlberg.dk...
- Page 2 Read this manual before installing, powering or servicing the product; follow the safety precautions listed below and observe all warnings in this manual and printed on the product. If you have questions about how to operate the product, please contact you Wahlberg Motion Design supplier or Wahlberg Motion Design.
- Page 3 SAFETY INFORMATION INDEX TECHNICAL SPECIFICATIONS DRAWINGS INTRODUCTION ............................8 ACKAGE CONTENT ............................... 8 ESCRIPTION ............................9 AFETY FUNCTIONS ............................... 9 REA OF USE ..........................9 SING FOR THE FIRST TIME .............................. 10 RANSPORT PHYSICAL INSTALLATION ....................11 ASTENING THE PRODUCT TO A FLAT SURFACE ......................
- Page 4 Model: Winch 50 Series Item no.: 245, 246.701 and 246.704 Dimensions (L×W×H): 345 × 298 × 464 mm (13.6 × 11.7 × 18.3 in) 246.701 797 × 298 x 464 mm (31.4 × 11.7 x 18.3 in) 246.704 893 x 274 x 455 mm (35.2 x 10.8 x17.9 in)
- Page 5 Winch 50 (245) More detailed drawings and from more angles can be found in Appendix 1 on page 37 245.805.011 Date: 2021-12-09...
- Page 6 Winch 50 Double (246.701) More detailed drawings and from more angles can be found in Appendix 2 on page 38 245.805.011 Date: 2021-12-09...
- Page 7 Winch 50 Double +Power and Cat5 (246.704) More detailed drawings and from more angles can be found in Appendix 3 on page 39 245.805.011 Date: 2021-12-09...
-
Page 8: Package Content
Description Winch 50 Series is a winch for stage use, mainly for use in theatres, shows and concerts. It lifts props and small set pieces in and out of the stage sphere at a maximum load of 50 kg up and down. -
Page 9: Safety Functions
WARNING! To reduce the risk of electric shock, do not expose to rain. The Winch 50 Series is intended for indoor use only. It is designed for lifting and lowering material at the weight and speed stated in "Technical specifications" on page 4. Any other use of the product may result in a risk of injury of persons or equipment damage. - Page 10 Transport IMPORTANT! The Winch 50 Series must be protected from environmental factors such as physical shocks and vibration during transportation. Before transport, it is important to roll the wire of the winch up, fix the wire with a cable tie or an elastic cord.
- Page 11 Fastening the product to a flat surface The Winch 50 Series can be fastened to flat surface such as a roof. Check that the surface can support at least 10 times the weight of all products and equipment to be installed on it.
- Page 12 Mounting the load ATTENTION! The load must be mounted on the wire in a way to secure that the load never can run into the winch. The load can be mounted using a suitable loading hook designed for lifting. Ensure that the loading hook has a minimum breaking load of at least 500 kg.
-
Page 13: Power Cables And Power Plug
Power cables and power plug The Winch 50 Series requires a power input cable with a Neutrik powerCON TRUE1 NAC3FX-W(- TOP) cable connector for AC mains power input. The cable must rated 20A minimum, have three conductors 1,5mm2 (AWG 16) minimum conductor size and an outer cable diameter of 6-16mm (0.24-0.47 inch). - Page 14 By supplying power to the winch, the display will show a start-up screen sequence showing the product name Followed by a screen showing the software version, e.g. SW 503.002.012 as shown below Then a description of how to enter the menu Before it is ready to be controlled by DMX channel 4 should be re-enabled.
-
Page 15: Tips For Reliable Data Transmission
A DMX 512 data link is required in order to control the Winch 50 Series via DMX. The winch has 5- pin XLR connectors for DMX data input and output. The pin-out on all connectors is pin 1 = shield, pin 2 = (-), and pin 3 = (+). - Page 16 WARNING! By default, the emergency stop is NOT enabled! The Winch 50 Series can be configured with an emergency stop; by default, the emergency stop is not enabled. The DMX control from a lighting desk should always have a set up so there is a button that sets the speed of the winch in operation to 0%.
-
Page 17: Ready To Use
Enable Emergency stop to ON Refer to section Menu setting on page 18 for guidance on how to navigate the menu. Ready to use When the emergency stop has been enabled, and the winch is connected to power, DMX, and an emergency stop switch, it is ready for use, and can be controlled from the lighting desk. -
Page 18: Menu Setting
Warning! Before running the winch, it is important to put a counterbalance on the wire. This is necessary, as the slack detection switch otherwise will be activated and will stop the winch. WARNING! Only experienced DMX users should operate the product. Contact Wahlberg Motion Design for further information and education on DMX protocol. -
Page 19: Menu Structure
Menu structure The menu structure is divided into two different areas for safer motor control. Control mode The display shows: Shift to next screen by pressing and holding down: Current position Wanted position Distance from current to wanted position Speed (values from 0-maximum motor RPM setting in operation) The screen shows the tachometer value for the current position, wanted position, distance and speed in motor revolutions per minute (RPM). -
Page 20: Menu Navigation Mode
Menu navigation mode The display shows: In menu navigate mode, the different parameters can be changed. In menu navigate mode the motor is stopped, and DMX input has no effect, the motor can be moved by the MANUAL RUN - GOING UP/GOING DOWN menu though. Press the arrows to go up or down in the menu choices. -
Page 21: Adjustable Parameters
Save changed value The display shows: Press to change the top line to: Where X is an increasing number from 1 to 20. Then press and hold The top line of the display counts up to 20 then shows OK. The value is now saved in the memory. -
Page 22: Detailed Explanation Of Parameters
Detailed explanation of parameters MAN SPEED Speed for manual driving Range 200-1,500 MAN SPEED sets the speed for manual driving the motor MAN UP/DWN Manually driving the motor MAN UP/DWN is used for manual control of the motor. Pressing the UP button, makes the wire run up. Pressing the DOWN button, makes the wire run down, unless the limit switch or slack detection is activated. - Page 23 Shows how many hours the winch has been powered on Since Last Service reset (SLS RESET). SLS RESET Reset Since Last Service parameters NO/YES Set all SLS values to zero. Go through all service steps described in the manual and contact Wahlberg Motion Design for any spare parts. TOT DIST Kilometres moved in total Shows how many kilometres the winch has travelled since production.
-
Page 24: Dmx Address Setting
DMX ADDRESS setting The DMX address, also known as the start channel, is the first channel used to receive instructions from the controller. For independent control, each product must be assigned to its own control channels. The DMX address is configured in the menu as described in the section above. DMX channel overview Channel Function Description... - Page 25 Understanding the hard and soft limits WARNING! There must be at least 2 rounds left on the drum when the winch is adjusted for the soft BOTTOM limit. Also make sure the load may not cause injury to any obstacles in the moving range.
- Page 26 About the soft limits The soft limits are entirely software controlled and shall be used to limit the working range as desired for a given application or show. The soft limits are automatically saved in the unit whenever a setup procedure has been initiated by using DMX channel 5 and 6.
-
Page 27: Adjusting Procedure
Adjusting procedure 1. Put the Winch 50 Series in manual mode while adjusting the limits. 2. Localise the hard limit switch box, the black box just in front of the fan. 3. Loosen the two screws holding the lid. 4. Loosen the middle screw. -
Page 28: Duty Cycle
Winch 50 Series. Duty cycle The Winch 50 Series should not be operated at a duty cycle higher than 30% for longer periods of time. The duty cycle is the fraction of a period where the motor is active. The duty cycle is commonly expressed as a percentage or a ratio. - Page 29 3. The speed of the fade needs to be slower than the maximum speed, so the motors have speed enough to follow the fade-curve. If the fade of the positions is too fast, the Winch 50 Series will move at the maximum speed, and you will see the difference in the motor speed.
-
Page 30: Error Led
Check if the winch is connected to mains power. shows nothing. Check if the fuse in the winch is intact Winch 50 Series will not start, Check DMX signal DMX lamp is blinking. The wire is not wound up on Manually lower the wire totally off the drum, while inspecting that the wire the drum correctly. - Page 31 The input AC voltage might be too high. EARTH FAULT Possible insulation failure in internal wiring or Power cycle the Winch 50 Series by unplugging the power and wait 30 seconds before motor. applying power again, consult authorized service technician if the failure keeps coming.
- Page 32 Repeating the identification procedure may only be required if the setting has been lost, like if the inverter or the motor has been replaced during service or if performance issues are observed at full load of the winch. Consult Wahlberg Motion Design for further instructions on how to proceed. Other UNKNOWN FAULT Unknown or not applicable for the application.
-
Page 33: On-Site Service
Parts Only parts ordered at or approved by Wahlberg Motion Design should be used in the Winch 50 Series to ensure product function and stability. Contact Wahlberg Motion Design to inquire about spare parts. -
Page 34: Maintenance Plan
The written result of the last inspection must be kept available at the site of operation, e.g. by an inspection sticker on the Winch 50 Series showing the date of the inspection, the basis of the inspection and the name of the inspector. -
Page 35: Life Of The Wire
Life of the wire It is Wahlberg Motion Design policy to apply the strictest possible calibration procedures and use the best quality materials available to ensure optimum performance and the longest possible component lifetimes. However, wires are subject to wear and tear over the life of the product, resulting in special attention to the state of the wire. - Page 36 powerCON TRUE1 Regularly check the condition of the powerCON TRUE1 connector system (cable connector and chassis) for clear signs of wear and tear. Through improper use and the excessive use of force, the encoding lugs and guide slots in the connector system can become so severely worn or damaged that it is possible to insert the cable connector the wrong way.
- Page 37 Winch 50 (245) 245.805.011 Date: 2021-12-09...
- Page 38 Winch 50 Double (246.701) 245.805.011 Date: 2021-12-09...
- Page 39 Winch 50 Double +Power and Cat5 (246.704) 245.805.011 Date: 2021-12-09...
- Page 40 245.805.011 Date: 2021-12-09...
- Page 41 245.805.011 Date: 2021-12-09...
- Page 42 Input/output plugs (246.704 Only) Power in Cat5 in Power out Power in Emergency (Bar) (Bar) 208-240 Stop DMX signal DMX signal powerCON EtherCON powerCON powerCON XLR 5 pole XLR 5 pole TRUE 1 TRUE 1 TRUE 1 Power Controller Control Manuel supply input DMX...
- Page 43 [This page is intentionally left blank] 245.805.011 Date: 2021-12-09...
-
Page 44: Before Each Use
Date: 2021-12-09 How to get started 1. Place or rig the Winch 50 Series with minimum 2-3 meters of clearance below. Put on counterweight on the winch, minimum 1 kg (2.2 lb). 2. Connect the mains and emergency switch (if enabled) - The winch turns on and the display shows the start-up message.
