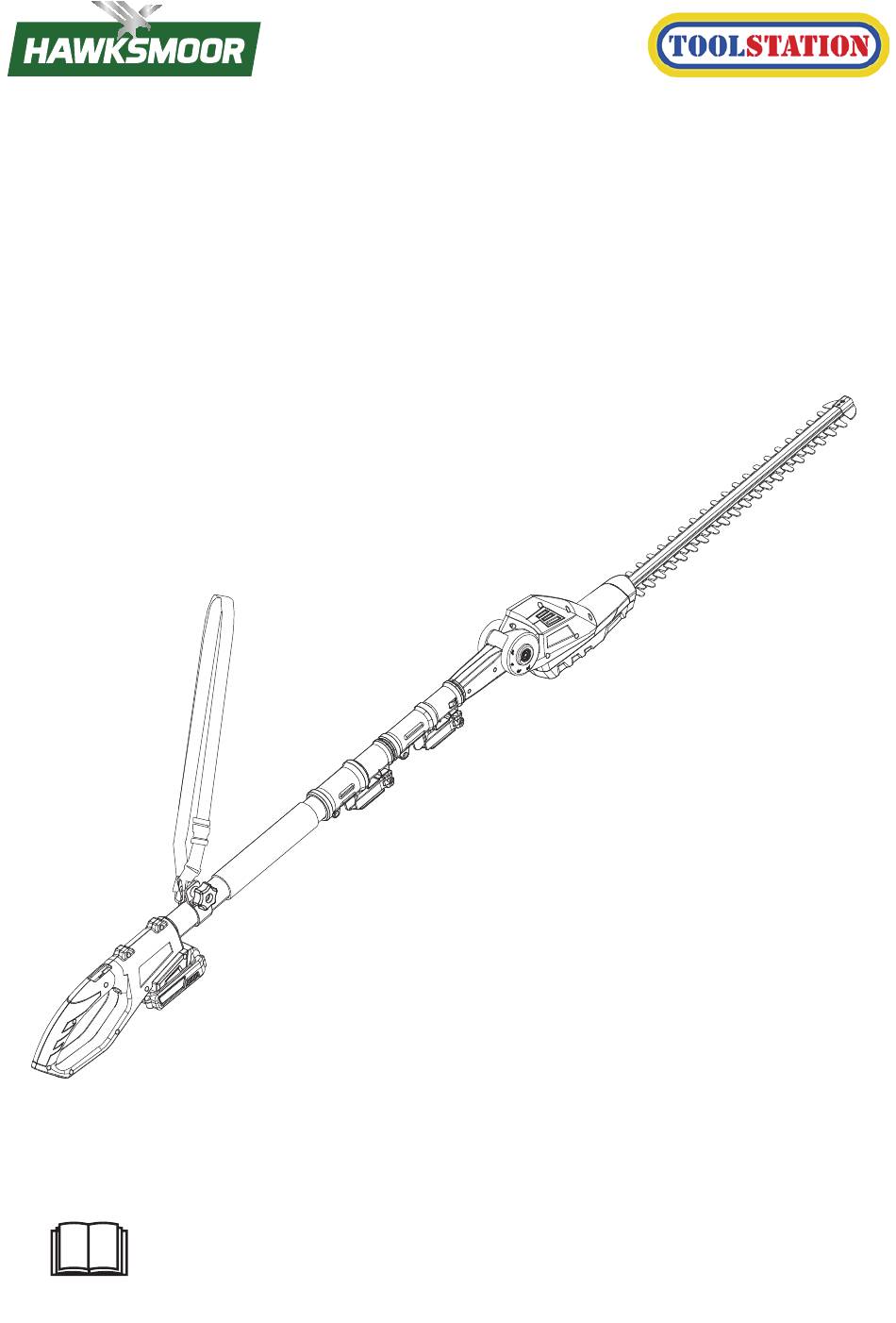

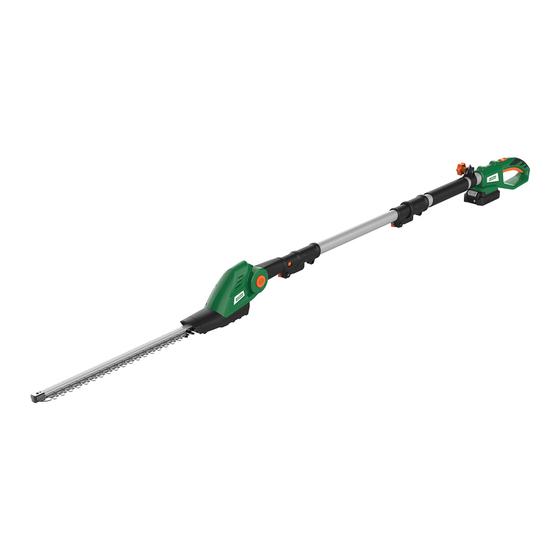

- Page 1 Original User’s Instructions 18V 46cm Cordless Long Reach Hedge Trimmer SKU: 86566 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 5 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 18 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS ----------------------------19 ∫... -
Page 3: What's In The Box
WHAT'S IN THE BOX Telescopic extension rear handle Hedge trimmer head with blade sheath Battery pack Charger If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk... -
Page 4: Specifications
SPECIFICATION • Dual action blade • Dual safety switch • Rubber overmould rear handle • Telescopic extension rear handle • 10 position pivot head • Equipped with shoulder strap for easy use Technical Data Model ASYPHT1510 Nominal voltage of product with battery 18V d.c./2.0Ah Li-ion No-load cutting speed 1400 /min... -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Symbol of a warning Read and refer to these operating instructions Wear hearing protection. Wear eye protection. Wear respiratory protection. Wear safety helmet. Wear protective clothing. Do not expose the product to rain or wet conditions (moisture). Objects thrown by the product could hit the user or other bystanders. - Page 6 Sharp blade can cut limbs. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Guarantee sound power level Remove the battery pack before adjusting, cleaning or maintenance, and before leaving the machine unattended for any period. Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem.
- Page 7 Positive terminal (Only for charger) Negative terminal (Only for charger) T 3.15A Fuse (Only for charger) The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessment www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk...
-
Page 8: Important Safety Warnings
IMPORTANT SAFETY WARNINGS General Power Tool Safety Warnings Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using the electric hedge trimmer, basic safety precautions, including the following, should always be followed to reduce the risk of fire,electric shock and personal injury. - Page 9 Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
- Page 10 Personal Safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 11 Power Tool Use and Care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
- Page 12 Service • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Product Safety Warnings Hedge Trimmer Safety Warnings: • Use the tool only with specifically designated battery packs. Use of any other battery packs will increase the risk of injury and fire.
- Page 13 • Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a “live” wire may make exposed metal parts of the hedge trimmer “live” and could give the operator an electric shock. •...
- Page 14 • Always use head protection when operating the extended- reach hedge trimmeroverhead. Falling debris can result in serious personal injury. Safety Warning For Battery Pack • Fully charge battery pack before the first use. • Recharge battery pack when the power output starts to slow. Do not continue to use product when battery capacity level is low.
- Page 15 • In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. • Should a Li-ion battery catch fire, ensure to use the correct fire extinguisher to combat the fire.
- Page 16 • Do not mix cells of different manufacture, capacity, size or type within a device. • Do not remove battery pack from its original packaging until required for use. Safety Warning For Battery Charger • Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer.
- Page 17 • Protect the battery charger from rain and moisture. If water accesses the battery charger there is an increased risk of electric shock. • Battery will heat up whilst charging. When charging batteries, ensure that the battery charger is in a well-ventilated area and to reduce the risk of fire, do not operate battery charger on or close to inflammable materials such as paper or textiles.
-
Page 18: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 10. Socket for trimmer head installation 1. Charger 11. Lock button for trimmer head installation 2. Battery pack 12. Rotating handle 3. Trigger switch on rear handle 13. Pivot angle adjustment push button 4. Trigger switch lock-off button 14. -
Page 19: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS NOTE: To reduce the risk of injury, user must read instruction manual. WARNING: Before assembly and adjusting to the long reach hedge trimmer, ensure the hedge trimmer is turned off and the battery pack is removed. Assemble the long reach hedge trimmer WARNING! This product requires assembly. - Page 20 2. Connecting the hedge trimmer head • Hold the telescopic extension rear handle and the hedge trimmer head level and still. Open the lever latch for trimmer head installation (9). Align the power connection pins (16) with the holes in the socket for trimmer head installation (10). Insert the power connection pins into the socket holes until the lock buttons for trimmer head installation (11) click into the shaft at the right seats.
- Page 21 4. Cutting angle adjustment This long reach hedge trimmer provides 10 cutting positions for different cutting applications, adjust the cutting head angle to fit the growth of the plant. Press the pivot angle adjustment push buttons (13) on the left and right of the trimmer head, and make the motor housing (14) revolve, until it snaps securely into place at one of the 10 positions indicated by the notches.
- Page 22 6. Starting or stopping the hedge trimmer Remove the blade protection sheath from the blade before operation. To turn on the machine, you should first push the trigger switch lock-off button (4) and then press the trigger switch on rear handle (3).
- Page 23 Charge the battery pack before operating when it is at medium or low battery charging level. Button Charging procedure 1) Slide the battery pack into the charger base to make connections. 2) Connect the battery charger to the power supply. The indicator light will be red to show that the charging has started.
-
Page 24: Care And Cleaning
CARE AND CLEANING WARNING! Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance. 1. Never use water to cleaning the unit. 2. Always clean the hedge trimmer immediately after use. Brush the blade using a stiff nylon brush to remove any debris. -
Page 25: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have:= PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Battery discharged Recharge battery Ensure the battery pack release Battery not fully connected Pole hedge trimmer button is fully locked does not operate Check to see if the machine head Machine head not assembled well... -
Page 26: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 86566 (ASYPHT1510) Product Description: Hawksmoor 18V 46cm Cordless Long Reach Hedge Trimmer 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. -
Page 27: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 28: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
