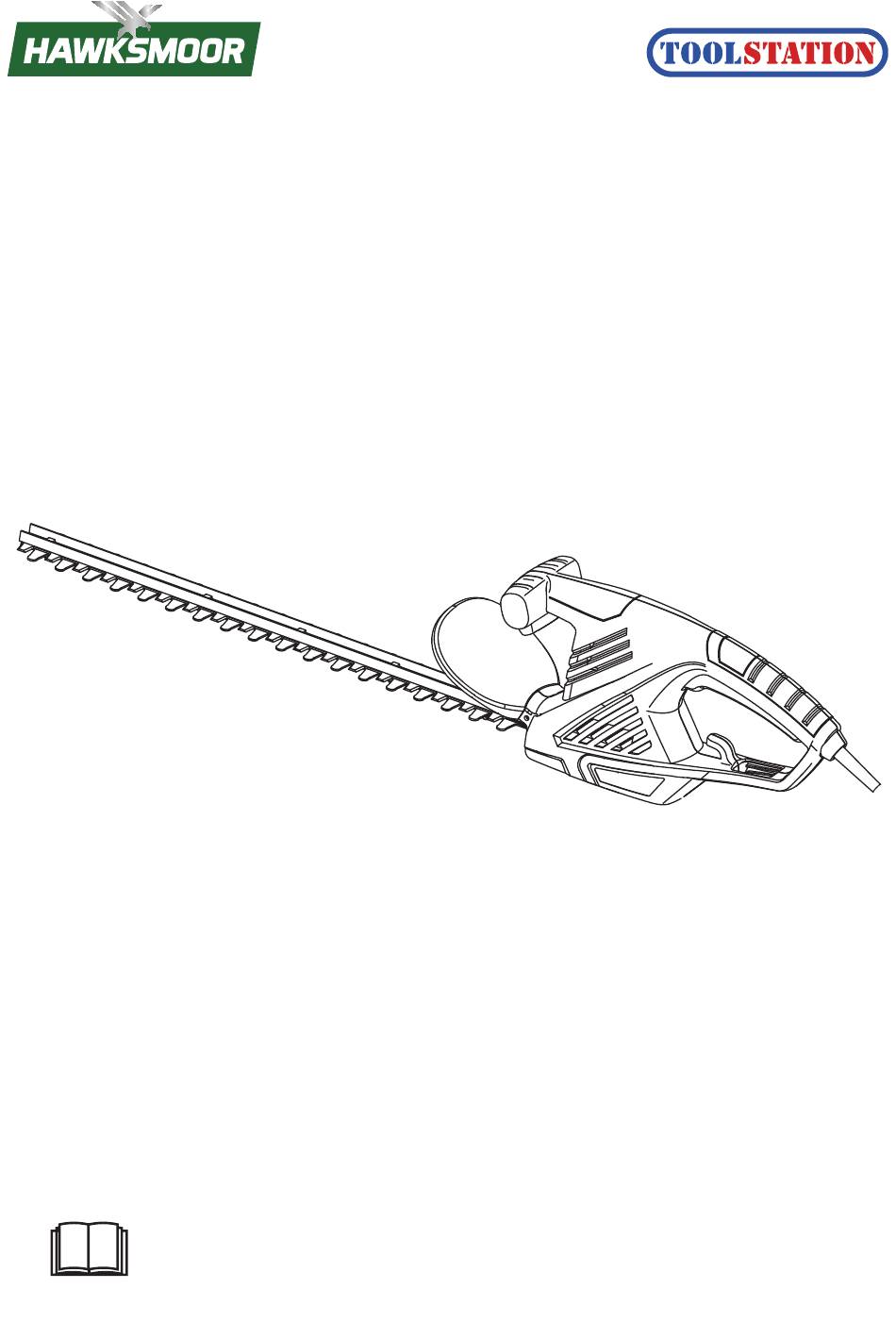

- Page 1 Original User’s Instructions 450W Electric Hedge Trimmer SKU: 89548 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 6 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 13 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------14 ∫... -
Page 3: What's In The Box
WHAT'S IN THE BOX Blade sheath x1 Safety guard Hedge trimmer x1 If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk... -
Page 4: Specifications
SPECIFICATION • Dual safety switch • Dual action blade • Electrical blade brake Technical Data Sku/Model 89548/HTEG62CL-510 Voltage 230-240V~50Hz Power Input 450W No Load Speed 1750 /min Max. Cutting Diameter 16 mm Max. Cutting Length 46 cm Blade length 51 cm Protection class Machine Weight Approx. - Page 5 How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. The use of the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration and noise accessories are used. And the tool is being used as intended by its design and these instructions.
-
Page 6: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS To reduce the risk of injury, user must read instruction manual Warning! Wear eye protection Wear ear protection Wear dust mask Keep hands away from blade Remove plug from the mains immediately if the cable is damaged or cut. Do not expose to rain Waste electrical products must not be disposed of with household waste. - Page 7 Double insulation The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done. UK Conformity Assessed Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation.
-
Page 8: Important Safety Warnings
IMPORTANT SAFETY WARNINGS GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. - Page 9 d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Page 10 f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 11 f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 12 d) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery back is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
-
Page 13: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Blade 2. Safety guard 3. Front handle switch lever 4. Front handle 5. Switch lever 6. Rear handle 7. Cable strain relief arm 8. Blade sheath 9. Cable 10. Plug Not all the accessories illustrated or described are included in standard delivery. -
Page 14: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS To reduce the risk of injury, user must read instruction manual Intended Use The machine is intended for cutting and trimming hedges and bushes in domestic use. 1. ASSEMBLY OF THE GUARD (SEE FIG. A) Loosen the two screws in the hole first. Insert the Safety Guard (a) into the slot as illustrated in Fig A;... - Page 15 2. STARTING AND STOPPING (SEE FIG. C) BEFORE STARTING YOUR HEDGE TRIMMER Press both sides of the front end of blade sheath (b) as shown in Fig C, and then remove the blade sheath. Fig C TO START YOUR HEDGE TRIMMER (SEE FIG. D) There are two switch levers fitted in your Hedge trimmer.
- Page 16 3. HOW TO USE YOUR HEDGE TRIMMER Inspect the area to be cut before each use, remove objects which can be thrown or become entangled in the cutting blades. Always hold the hedge trimmer with both hands and with the blade away from you before turning it Always keep the power cord behind the hedge trimmer when in use.
- Page 17 SIDE CUTTING (SEE FIG. F) When trimming the sides of the hedge, begin at the bottom and cut upwards, tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth. Fig F Warning: Check extension cords before each use.
-
Page 18: Care And Cleaning
CARE AND CLEANING CLEANING Disconnect from mains electrics supply. Using a soft brush-remove debris from all air intakes and cutting blade. Wipe over surface of your hedge trimmer with a dry cloth. Warning! Never use water for cleaning your hedge trimmer. Do not clean with chemicals, including petrol, or solvents as this can damage your hedge trimmer. -
Page 19: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEMS POSSIBLE CAUSES REMIDIES Insert the plug into a proper mains Out of electricity power. Trimmer fails to operate Return the trimmer to an authorised Damaged machine dealer for repair. -
Page 20: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 89548 (HTEG62CL-510) Product Description Hawksmoor: 450W Electric Hedge Trimmer 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration... -
Page 21: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 22: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
