Aiphone SECURITY SUBSTATION AI-RS150 Instruction Manual

SECURITY SUBSTATION
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
1. GENERAL DESCRIPTION
AIPHONE's AI-RS150, AI-RS160, AI-RS170, and AI-RS180 are Security Substations designed to be used with
AIPHONE's AI-900 Voice Security System.
2. CONNECTION

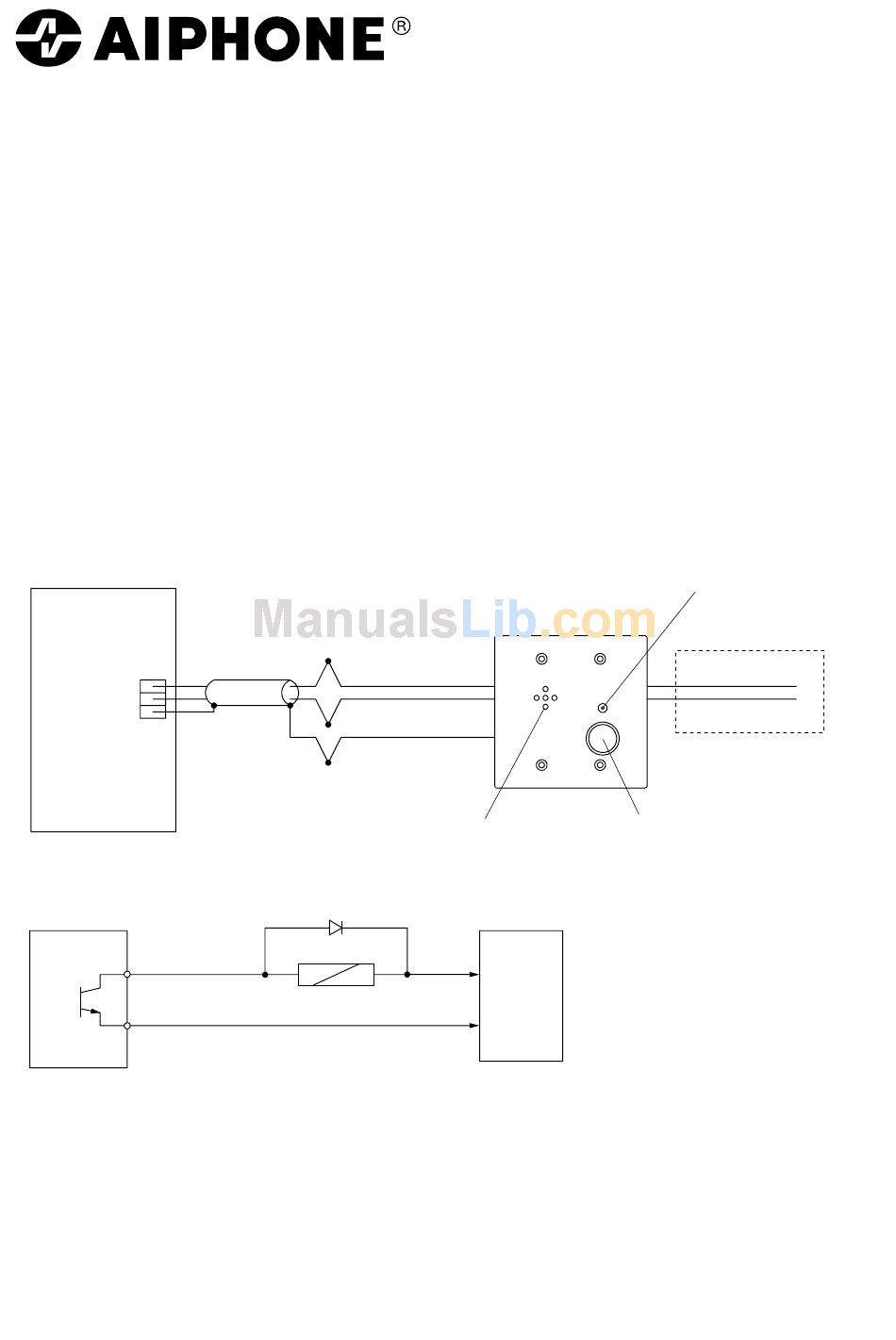

Connection to the AI-900RS (for 25 V line)
(AI-900RS)
A
B
C
Connection to the external relay (AI-RS180 only)
AI-RS180
Blue (HOT)
White (COM)
Note: AI-RS180 open collector output is 30 mA / 24 VDC (max.).
3. OPERATION
Pressing the call button calls the control station. The call lamp then flashes until the conversation begins, and
it remains lit during the conversation (AI-RS180 only). The open collector output is activated immediately after
pushing call buttons and remains active until call is cancelled (AI-RS180 only).
Orange
Brown
Black
Speaker
diode
relay
+
-
INSTRUCTION MANUAL
AI-RS150/160/170/180
Call button
External
power supply
+24 VDC
GND
AI-RS150
AI-RS160
AI-RS170
AI-RS180
Call lamp (AI-RS180 only)
Blue (HOT)
White (COM)
Open collector output
(AI-RS180 only)
