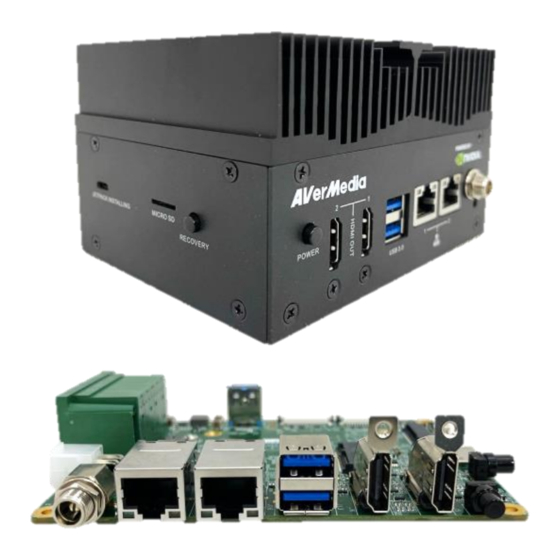

AVerMedia NX215 Carrier board and
NO115B/ TN115B/ NX215B/ D115OXB Box PC
®
Applies to NVIDIA
Jetson Nano/TX2 NX/Xavier NX/ Orin NX module
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing:
Contact
Technical Support:
Professional User
0
NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com
Advertisement
Table of Contents
Related Manuals for Avermedia NX215
Summary of Contents for Avermedia NX215
- Page 1 AVerMedia NX215 Carrier board and NO115B/ TN115B/ NX215B/ D115OXB Box PC ® Applies to NVIDIA Jetson Nano/TX2 NX/Xavier NX/ Orin NX module AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842...
-
Page 2: Table Of Contents
3.9 USB 3.1 Gen 1 Type-A Connector #1 , #2, #3 _______________________ 28 3.10 Gigabit Ethernet Connector _______________________________________ 28 3.11 Jetson platform/ USB 2.0 Micro B Connector ____________________ 29 3.12 RTC Battery Connector ____________________________________________ 29 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 3 7.0 Accessory Drawings ................49 7.1 Fan Module/ Adapter/ Power Cord __________________________________ 49 8.0 Dimension Drawings and Assembly Drawings ........56 8.1 Dimension Drawings of carrier board _______________________________ 56 8.2 Dimension Drawing of NO115B/ TN115B/ NX215B/D115OXB Box PC 57 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 4: Preface
The information contained in this user manual, including but not limited to any product specification is subject to change without notice. AVerMedia assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user manual. - Page 5 Version 1.6 31,OCt, 2022 Update Product specification/Safety Precaution Version 1.7 23,NOV, 2022 Update Carrier Board Interface/ Contact information Version 1.8 18, Dec, 2022 Add D115OXB information Version 1.9 31, March, 2023 Update D115OXB 20pin define NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 6 AVerMedia Global Offices https://www.avermedia.com/contact-us NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 7 AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
- Page 8 5. Do NOT leave this device in an un-controlled environment with temperatures beyond the device’s permitted storage temperature to avoid damage. 6. All adaptors and cables supplied by AVerMedia are verified. Do NOT use any others not supplied by AVerMedia to avoid any malfunction or fires.
- Page 9 (3) Exposure to moisture (4) Liquid intrusion into the device (5) Any obvious signs of damage displayed on the device (6) Device is not working as expected or in a manner as described in this manual NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 10: Introduction
NVIDIA Jetson Nano(Version B01)/TX2 NX/ Xavier NX/Orin NX modules and the rich I/O functions, AVerMedia NX215/ NO115B/ TN115B/ NX215B/ D1115OXB is the perfect choice in building a compact, high performance AI edge computing platform for the intelligent video analytics applications. -
Page 11: Product Specifications
Heat sink with fan (optional) Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU PCB/Electronics 120mm (W) x 90mm (L) x 26.5mm (H) Mechanical Info Weight: 125 g Certifications CE, FCC, KC NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 12 Fanless solution Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU PCB/Electronics W: 126mm (W) x 96mm (L) x 74mm (H) Mechanical Info Weight: 1kg Certifications CE, FCC, KC NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 13: Option Accessory
C-04: IMX290(2M)MIPI, 1080P(30fps) MIPI Camera (internal I/O) C-05: IMX290(2M)+ISP(YUV), 1080P(30fps) For 36 pin MIPI connector (D115OXB doesn’t support) Manufacturer: APPRO.PHO B-03: IMX334(4K) MIPI, 4K(30fps) A-06: IMX334(4K) V-by-One® HS x1, 4K(30fps) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 14: Product Overview
2.0 Product Overview 2.1 Block Diagram for Nano/TX2 NX/Xavier NX (PCN20220406-2) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 15 (Original) Jetson Nano/ TX2 NX/ Xavier NX NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 16: Block Diagram For Orin Nx
Block Diagram for Orin NX NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 17: Front View And Back View Of Carrier Board
Front View and Back View of Carrier board NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 18: Front View And Three-Quarter View Of Boxpc
1.1 Front View and Three-Quarter View of BoxPC Left view Right view NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 19 Top view Front view NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 20 Rear view Bottom view NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 21: Connector Summary
1.2 Connector Summary 2.0 NX215B/NO115B/TN115B/MX215B/D115OXB Interface Top View Interface SO-DIMM 260-pin 90° SMD Socket(H-9.2mm) for Jetson Nano / Jetson TX2 NX/Xavier NX/Orin NX External RTC Battery wafer FPC connector for 4-lane MIPI CSI-2 Fan Wafer NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 22 USB 3.1 Gen1 Dual Port Type A Connector USB 3.1 Gen1 Type A Connector Gigabit Ethernet Connector w/LEDs Gigabit Ethernet Connector w/LEDs USB 2.0 Micro B Connector 20-pin Expansion Terminal Blocks DIP switch Power Button w/LEDs Recovery Button w/LEDs NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 23: Feature Description
RTC battery for module Location Type Description 2.0mm wire-to-board header 02P type Manufacturer Pinrex, 721-94-02TWR9 and Part Number Mating Tyu, TU2001HNO-02 Connector Pin # Description Pinout PIN1 3V Power PIN2 Remarks RTC Battery: MITSUBISHI, CR2032 3V NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 24: Atx 4P
DC POWER JACK Function DC power input Location Type 2.5 mm power jack Description Manufacturer JKCR, and Part DCD 020 105B Number Mating Any 2.5mm power plug cable Connector Pin Number Description 12-24V Power Pinout Remarks NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 25: Hdmi Output
Please refer to HDMI standard. Remarks None 3.6 Micro SD Card Slot Function Micro SD Card Location SOCKET_MICRO SD Type Description CARD_9PIN_90°_SMD Manufacturer and Fullglory, FG-0011BAAS09A Part Number Pinout Refer to MicroSD card standard None Remark NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 26: Mipi Csi-2 Dphy Lanes
CSI0_CLK_P Pin2 CSI0_D0_N Pin10 Pin3 CSI0_D0_P Pin11 MIPI2_PWDN Pin4 Pin12 CAM2_MCLK Pin5 CSI0_D1_N Pin13 CSI0_I2C_SCL Pin6 CSI0_D1_P Pin14 CSI0_I2C_SDA Pinout Pin7 Pin15 +3V3_MIPI Pin8 CSI0_CLK_N PIN# Description PIN# Description Pin1 Pin9 CSI2_CLK_P Pin2 CSI2_D0_N Pin10 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 27 Pin3 CSI2_D0_P Pin11 MIPI2_PWDN Pin4 Pin12 CAM2_MCLK Pin5 CSI2_D1_N Pin13 CSI2_I2C_SCL Pin6 CSI2_D1_P Pin14 CSI2_I2C_SDA Pin7 Pin15 +3V3_MIPI Pin8 CSI2_CLK_N NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 28: Serdes (V-By-One® Hs)
Part Number Mating Connector 4 Lane MIPI CSI-2 camera connector (36PIN) Signal Pin Number Signal Number CSI4_D3_P 1.8V CSI4_D3_N 3.3V 3.3V 3.3V CSI4_D0_P MIPI4_PWDN PIN OUT CSI4_D0_N CSI4_I2C_SDA CSI4_I2C_SCL CSI4_CLK_P CSI4_CLK_N CSI4_D1_P CSI4_D1_N CSI4_D2_P CAM4_MCLK CSI4_D2_N NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 29: Usb 3.1 Gen 1 Type-A Connector #1 , #2, #3
FOXCONN, JFM38013-0L03-4F-BX3 Part Number Any standard 1Gb Ethernet mating Mating Connector connector can be applicable. Pinout Comply with Ethernet standards. J15 is via USB3.0 Ethernet controller and J16 is directly from Remarks NVIDIA Jetson SOM. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 30: Jetson Platform/ Usb 2.0 Micro B Connector
RTC battery for module Location Type Description 2.0mm wire-to-board header 02P type Manufacturer Pinrex, 721-94-02TWR9 and Part Number Mating Tyu, TU2001HNO-02 Connector Pin # Description Pinout PIN1 3V Power PIN2 Remarks RTC Battery: MITSUBISHI, CR2032 3V NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 31: 20-Pin Gpio Expansion
3.13 20-Pin GPIO expansion Function General-purpose input/output Location Type Expansion I/O Connector Description Manufacturer and Part ME252-35020-1 Number Mating 20-Pin GPIO expansion Connector NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 32 NX215+Orin NX/D115OXB (Original and now:PCN20220406-2) NX215+NX/NX215B (now:PCN20220406-2) Pinout NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 33 NX215+NX/NX215B (Original) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 34 NX215+TX2 NX/TN115B (now: PCN20220406-2) NX215+TX2 NX/TN115B (Original) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 35 NX215+NANO/ NO115B (now:PCN20220406-2) NX215+NANO/ NO115B (Original) GPIO uses 3.3V Remarks NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 36: Optional Function Selection
4 SPST DIP switch Manufacturer and DIPTRONICS IN OFF-SWITCHING Part Number 0.025A/24VDC (PCN20220406-2) Pinout (original) Default SW2 OFF Remark 3.15 Force Recovery Button Function Force recovery Location Button Type Description Manufacturer and Part Number Pinout None Remark NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 37: Power On Button
Remark Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for the internal use by AVerMedia. They are not open to the client application. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 38: Bsp Setup Instructions
If you want to get the BSP download link, Please contact with AVerMedia FAE. Default login username/password of the BSP is nvidia/nvidia If you have difficulties to access the BSP download link, please visit AVerMedia website at https://www.avermedia.com/professional/download, or contact technical support at https://www.avermedia.com/professional/technical_support or e-mail us at... - Page 39 2. Using the commands below in the Linux PC to start re-flashing BSP. $ sudo tar zxvf <BSP_tarball_filename>.tar.gz # where <BSP_tarball_filename> is the BSP tarball file name for your target device. $ cd JetPack_xxx/Linux_for_Tegra $ ./install.sh Note: sudo is required to extract the BSP. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 40: Software
The following commands can get PWM fan information. # get current speed setting of PWM Fan (0 ~ 255) $ cat /sys/devices/pwm-fan/cur_pwm # get Fan RPM value $ sudo bash -c "echo 1 > /sys/devices/pwm-fan/tach_enable" NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 41 $ sudo ip link set can0 up (2) Receive and Send # Receive $ candump can0 # Send $ cansend can0 <can_frame> * where: <can_frame> is CAN Bus frame message, see `cansend --help` for more detail. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 42 $ candump <interface> # Send $ cansend <interface> <can_frame> * where: <interface> is the interface name of CAN Bus, e.g. can0 or can1 <can_frame> is CAN Bus frame message, see `cansend --help` for more detail. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 43 ! nvvidconv ! xvimagesink -e Multiple: $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 sensor-mode=0 ! 'video/x-raw(memory:NVMM), width=(int)3264, height=(int)2464, format=(string)NV12, framerate=(fraction)21/1' ! nvvidconv ! xvimagesink -e & gst-launch-1.0 nvarguscamerasrc sensor-id=1 sensor-mode=0 ! 'video/x-raw(memory:NVMM), width=(int)3264, height=(int)2464, format=(string)NV12, framerate=(fraction)21/1' ! nvvidconv ! xvimagesink -e & NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 44 $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 sensor-mode=4 ! 'video/x-raw(memory:NVMM), width=(int)1640, height=(int)1232, format=(string)NV12, framerate=(fraction)30/1' ! nvvidconv ! xvimagesink -e $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 sensor-mode=5 ! 'video/x-raw(memory:NVMM), width=(int)820, height=(int)616, format=(string)NV12, framerate=(fraction)30/1' ! nvvidconv ! xvimagesink -e $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 sensor-mode=6 ! NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 45 $ gst-launch-1.0 v4l2src io-mode=4 device=/dev/video0 do-timestamp=true ! 'video/x-raw, width=1280, height=720, framerate=60/1, format=UYVY' ! xvimagesink sync=false $ gst-launch-1.0 v4l2src io-mode=4 device=/dev/video0 do-timestamp=true ! 'video/x-raw, width=1280, height=960, framerate=60/1, format=UYVY' ! xvimagesink sync=false > IMX334 : NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 46 ! xvimagesink -e GPIO usage (<= JetPack 4.6.x) (1) Output: (e.g. gpio232) $ sudo su $ gpio_id=232 $ echo $gpio_id > /sys/class/gpio/export $ echo out > /sys/class/gpio/gpio$gpio_id/direction $ echo 1 > /sys/class/gpio/gpio$gpio_id/value # HIGH NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 47 $ echo $gpio_id > /sys/class/gpio/export $ cat /sys/kerne/debug/gpio | grep 483 gpio-483 (PZ.05 $ gpio_index=PZ.05 $ echo in > /sys/class/gpio/$gpio_index /direction $ cat /sys/class/gpio/$gpio_index /value # 1: HIGH, 0: LOW (3) Disable $ sudo su NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 48: Force Recovery Mode
$ echo $gpio_id >/sys/class/gpio/unexport For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson Nano / TX2 NX/ Xavier NX , please visit AVerMedia website to contact our technical support function. (https://www.avermedia.com/tw/support/contact) 5.0 Force Recovery Mode USB 3.l/... -
Page 49: Power Consumption
(maximum power consumption up to 60W based on adapter ) The power consumption under the normal operating mode is depending Typical System ® on the application software running with NVIDIA Jetson Nano/ Power Consumption NX/Xavier NX/Orin NX. NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 50: Accessory Drawings
Operating Voltage Range: 4V~5.5V Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25 ℃) Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH) Bearing Type: Two Ball NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 51 Operating Voltage Range: 4V~5.5V Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25 ℃) Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH) Bearing Type: Two Ball NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 52 Operating Voltage Range: 4V~5.5V Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25 ℃) Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH) Bearing Type: Two Ball NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 53 Power Adapter 04131HGOUANK 64APOWERBRX-IPD (TW version) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 54 064APOWERBR2-IPD (US version) 064APOWERBRW-IPD (UK version) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 55 064APOWERBR5-IPD (EU version) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 56 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
-
Page 57: Dimension Drawings And Assembly Drawings
8.0 Dimension Drawings and Assembly Drawings Dimension Drawings of carrier board NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... -
Page 58: Dimension Drawing Of No115B/ Tn115B/ Nx215B/D115Oxb Box
Dimension Drawing of NO115B/ TN115B/ NX215B/D115OXB Box NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com... - Page 59 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 60 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 61 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
- Page 62 NX215/ NO115B/TN115B/NX215B/D115OXB User Manual www.avermedia.com...
