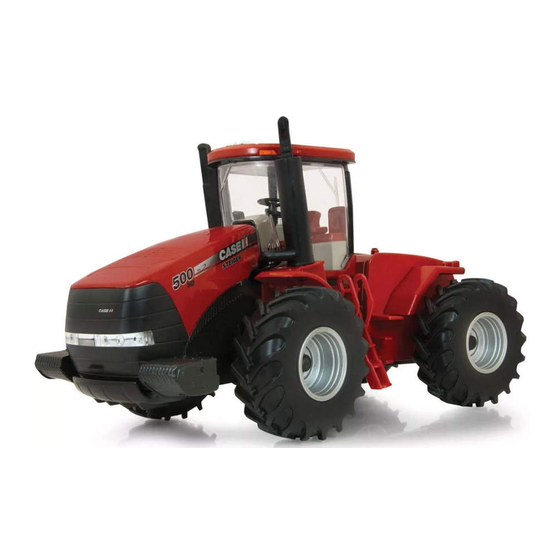

- Page 1 Steiger 350 / 400 / 450 / 500 / 550 / 600 ® Quadtrac 450 / 500 / 550 / 600 ® Tractor PIN ZCF100001 and above PIN ZDF100001 and above SERVICE MANUAL Part number 47488213 English March 2013...
- Page 2 SERVICE MANUAL Steiger 350 [ZCF100001 - ] , Steiger 350 [ZDF100001 - ] , Steiger 400 [ZCF100001 - ] , Steiger 400 [ZDF100001 - ] , Steiger 450 QT [ZCF100001 - ] , Steiger 450 QT [ZDF100001 - ] , Steiger 450 [ZCF100001 - ] , Steiger 450...
- Page 3 Contents INTRODUCTION Engine..................10 [10.001] Engine and crankcase ............. 10.1 [10.202] Air cleaners and lines .
- Page 4 [33.202] Hydraulic service brakes ............33.2 Hydraulic systems...............
- Page 5 [48.138] Track rollers ............... . 48.4 Cab climate control ..............
- Page 6 [90.151] Cab interior ............... . . 90.5 47488213 26/02/2013...
- Page 7 INTRODUCTION 47488213 26/02/2013...
-
Page 8: Safety Rules
Safety rules Steiger 350 [ZCF100001 - ] WE, Steiger 350 [ZDF100001 - ] WE, Steiger 350, Steiger 400 [ZCF100001 - ] WE, Steiger 400 [ZDF100001 - ] WE, Steiger 400, Steiger 450 [ZCF100001 - ] WE, Steiger 450 [ZDF100001 - ] WE, Steiger 450, Steiger 450 QT [ZCF100001 - ] WE, Steiger 450 QT [ZDF100001 - ]... -
Page 9: General Safety Rules
INTRODUCTION Safety rules Steiger 350 WE, Steiger 400 WE, Steiger 450 WE, Steiger 450 QT WE, Steiger 500 WE, Steiger 500 QT WE, Steiger 550 WE, Steiger 550 QT WE, Steiger 600 WE, Steiger 600 QT WE General safety rules Use caution when operating the machine on slopes. - Page 10 INTRODUCTION Wear protective equipment when appropriate. DO NOT attempt to remove material from any part of the machine while it is being operated or components are in motion. Make sure all guards and shields are in good condition and properly installed before operating the machine. Never operate the machine with shields removed.
- Page 11 SERVICE MANUAL Engine Steiger 350 , Steiger 400 , Steiger 450 QT , Steiger 450 , Steiger 500 QT , Steiger 500 , Steiger 550 QT , Steiger 550 , Steiger 600 QT , Steiger 600 47488213 26/02/2013...
- Page 12 Engine - Engine and crankcase Engine - Remove - 9 Liter tractors Steiger 350 Air conditioning - Evacuate - Air conditioning system (50.200) Prior operation: Hood - Remove - Hood support frame on row crop unit (90.100) Disconnect air conditioning high and low pressure hoses (1) from compressor.
- Page 13 Engine - Engine and crankcase With the help of an assistant turn fan off hub. Re- move out the right hand side. RCPH10FWD011BBC Label and disconnect heater hoses (1) and DEF/Ad- Blue® solenoid hoses (2). RCPH10FWD012BBC Disconnect starter connections (1). Remove ground strap from engine block (2).
- Page 14 Engine - Engine and crankcase Remove left hand air to air tube (1) and lower radiator hose (2). Loosen upper radiator hose clamp (3). RCPH10FWD014BBC Disconnect alternator cable (1). Disconnect fuel line (2). NOTE: Plug and cap disconnected fuel line and fitting. RCPH10FWD015BBC Secure cooling package with support strap (1).
- Page 15 Engine - Engine and crankcase Disconnect fuel return line. NOTE: Plug and cap disconnected hoses and fittings. RCPH10FWD017BBC Disconnect drive shaft from engine. RCPH10FWD018BBC Remove bracket on both sides over rear engine mounts. RCPH10FWD019BBC 47488213 26/02/2013 10.1 [10.001] / 6...
- Page 16 Engine - Engine and crankcase Remove front engine mount bracket. RCPH10FWD021BBC Attach 4130 load rotor lifting bale or equivalent. Re- move engine from tractor over left hand side rail. RCPH10FWD022BBC 47488213 26/02/2013 10.1 [10.001] / 7...
- Page 17 Engine - Engine and crankcase Engine - Install - 9 Liter tractors Steiger 350 Attach load rotor 4130 lifting bale or equivalent to an overhead hoist and the two engine lifting brack- ets. Install isomounts, lift engine and set into tractor frame.
- Page 18 Engine - Engine and crankcase Connect drive shaft to drive coupler. Torque the bolts to 95 - 108 N·m (70 - 80 lb ft). RCPH10FWD018BBC Connect fuel return line. NOTE: Remove plug and cap from hose and fitting. RCPH10FWD017BBC Install upper radiator hose (1) and right hand air to air tube (2).
- Page 19 Engine - Engine and crankcase Connect fuel line (1)and alternator cable (2). NOTE: Remove plug and cap from hose and fitting. RCPH10FWD015BBC Tighten upper radiator hose (1). Install lower radiator hose (2), and left hand air to air tube (3). RCPH10FWD014BBC Secure ground strap to engine block.
- Page 20 Engine - Engine and crankcase Connect Diesel Emission Fluid/AdBlue® (DEF/Ad- Blue®) hoses (1) to solenoid and engine tubing. Connect heater hoses (2) as marked during disas- sembly. RCPH10FWD012BBC Install fan from right hand side of engine with the help of an assistant. NOTE: Hub has left handed thread.
- Page 21 Engine - Engine and crankcase Tighten fan assembly to hub . NOTE: Hub has left handed thread. RCPH10FWD010BBC Plug in harness connector (1) and tie harness lead (2) to bracket. RCPH10FWD009BBC Attach lifting straps as shown. Use overhead crane to set hood support frame into position. NOTE: Be sure right hand side air conditioner line is in place while lowering hood support frame into position.
