MODEL: 25SC1
CONVECTION MICROWAVE OVEN
M i c r o w a v e O v e n
O w n e r ' s M a n u a l
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.

Advertisement

Table of Contents
loading

Related Manuals for IFB 25SC1

Summary of Contents for IFB 25SC1

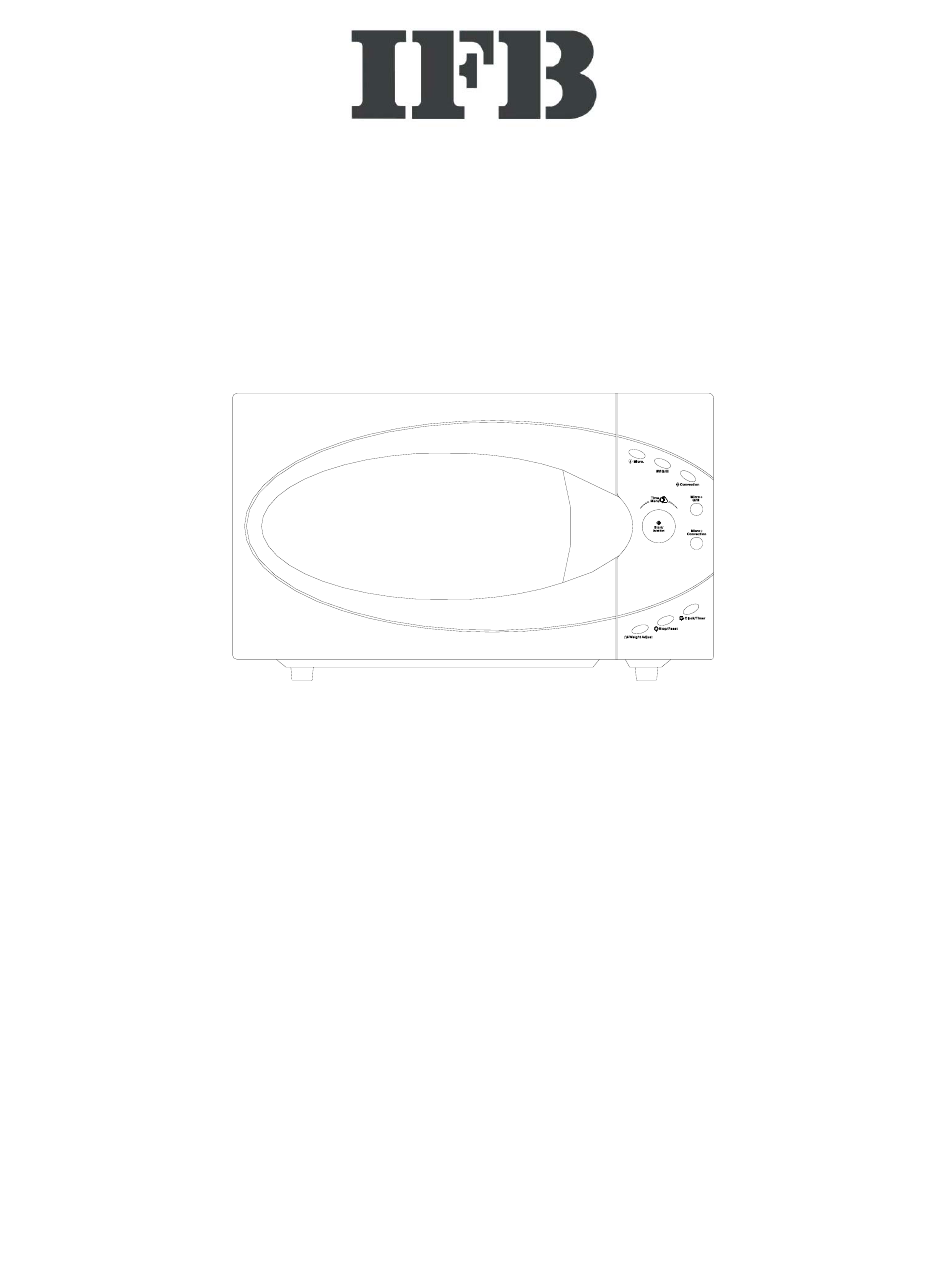

  • Page 1 MODEL: 25SC1 CONVECTION MICROWAVE OVEN M i c r o w a v e O v e n O w n e r ' s M a n u a l Please read these instructions carefully before installing and operating the oven.

  • Page 2: Table Of Contents

    Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Energy

    Power Consumption: 230V~50Hz, 1400W (Microwave) 230V, 1400W (Convection) 230V, 1200W (Heater) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 310mm(H)×508mm(W)×413mm(D) Oven Cavity Dimensions: 210mm(H)×338mm(W)×348mm(D) Oven Capacity: 25Litres Cooking Uniformity: Turntable System{Φ 314mm} Net Weight: Approx. 19kg If the oven fails to operate: programmed correctly and the timer is set.

  • Page 4: Grounding Instructions

    oven or over any hot or sharp surface. emergency. The socket must be readily accessible so Do not use the oven outdoors. that it can be easily unplugged in an This appliance must be grounded. This oven is If you have any questions about the equipped with a cord having a grounding wire grounding or electrical instructions, consult with a grounding plug.

  • Page 5: Microwave Cooking Principles

    corrosive chemicals or vapors in this are liable to explode. appliance. This type of oven is specifically Microwave heating of beverage can result designed to heat, cook or dry food. It is not in delayed eruptive boiling, therefore care designed for industrial or laboratory use. has to be taken when handling the Do not operate the oven when empty.

  • Page 6: Utensils Guide

    The ideal material for a microwave utensil is Round /oval dishes rather than square/oblong transparent to microwave, it allows energy to ones are recommend, as food in corners pass through the container and heat the food. tends to overcook. Microwave can not penetrate metal, so metal Narrow strips of aluminum foil may be used to utensils or dishes with metallic trim should not prevent overcooking of exposed areas.

  • Page 7: Control Panel

    DISPLAY SCREEN Cooking time, power, indicators and present time are displayed. MICRO. Press to select microwave power level. GRILL Press to set a grill cooking program. CONVECTION Press to program convection temperature. MICRO+GRILL Press to select one of two combination cooking settings.

  • Page 8: How To Set The Oven Controls

    BEEPS DURING OVEN SETTINGS 7 times 40%(P-40) Med. ONE BEEP: Oven accepts the entry. ♦ 8 times 30%(P-30) Low/Defrost TWO BEEPS: Oven does not accept the ♦ 9 times 20%(P-20) entry. Please check and try again. 10 times 10%(P-10) 11 times 0%(P-00) Suppose you want to cook for 5 minute at 60% SETTING THE CLOCK...

  • Page 9: Convection

    CONVECTION 3. Open the door and place container of food at the center of the turntable. During convection cooking, hot air is circulated throughout the oven cavity to brown and make 4. Rotate the TIME MENU dial to program crisp foods quickly and evenly. This oven can be cooking time.

  • Page 10: Speed Defrost (Wei.wei.adj

    3. When using plastic containers from the Press MICROWAVE + CONVECTION button to freezer, defrost only long enough to select convection temperature: remove from plastic in order to place in a Press Oven temperature(℃) microwave-safe dish. COMB1 once 4. The maximum defrosting time is 45 COMB2 twice minutes.

  • Page 11: Settings About Auto-Menu

    press WEIGHT.ADJUST button twice, rotate the “AUTO MENU” allow you to cook or reheat food dial to program the new popcorn automatically without entering power level or time. TIME MENU time, and then press START button to verify. The new popcorn time will remain whenever BAKED POTATO you use the POPCORN function until you reset Press...
  • Page 12 NOTE: then close the door to cook for the remaining time. To reset cooking time: Rotate the TIME MENU dial until “07” and “CODE” are displayed, press CAKE WEIGHT.ADJUST button twice, rotate the TIME 1. Rotate the TIME MENU dial until “07” and MENU dial to program the new cooking time, “CODE”...

  • Page 13: Cleaning And Care

    Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
