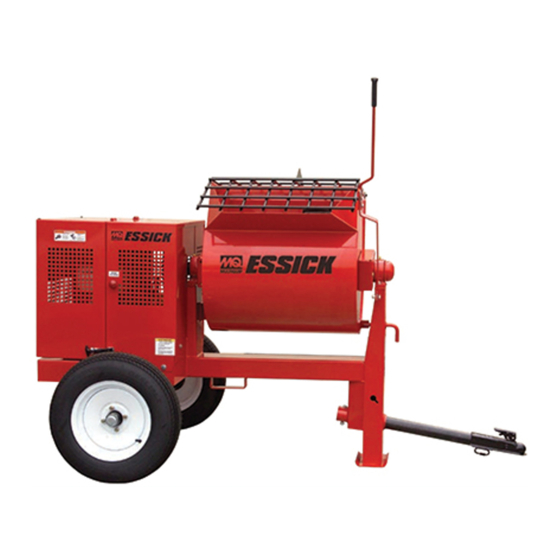

Plaster and mortar mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
MODEL
EM70SLF
PLASTER AND MORTAR MIXER
(MPOWER 177F-BH 9.0 HP GASOLINE ENGINE)
Revision #0 (09/22/22)
To find the latest revision of this publication or
associated parts manual, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESSICK EM70SLF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MULTIQUIP ESSICK EM70SLF

Summary of Contents for MULTIQUIP ESSICK EM70SLF

  • Page 1 EM70SLF PLASTER AND MORTAR MIXER (MPOWER 177F-BH 9.0 HP GASOLINE ENGINE) Revision #0 (09/22/22) To find the latest revision of this publication or associated parts manual, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — EM70SLF PLASTER/MORTAR MIXER • OPERATION MANUAL — REV. #0 (09/22/22)

  • Page 3: Silicosis/Respiratory Warnings

    SILICOSIS/RESPIRATORY WARNINGS WARNING WARNING SILICOSIS WARNING RESPIRATORY HAZARDS Grinding/cutting/drilling of masonry, concrete, metal and Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition may give other materials can generate dust, mists and fumes off dust or mists containing crystalline silica. Silica is a containing chemicals known to cause serious or fatal basic component of sand, quartz, brick clay, granite and injury or illness, such as respiratory disease, cancer,...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS EM70SLF Plaster and Mortar Mixer Proposition 65 Warning ........... 2 Silicosis/Respiratory Warnings ........ 3 Training Checklist ............ 5 Nameplate And Safety Decals ......... 6 Safety Information ..........7-11 Towing Guidelines ..........12-13 Safety Chain Connection ........14 Specifications (Mixer) ..........

  • Page 5: Training Checklist

    TRAINING CHECKLIST Training Checklist Description Date Read operation manual completely. Machine layout, location of components, checking of engine oil levels. Fuel system, refueling procedure. Operation of controls (machine not running). Safety controls, safety stop switch operation. Emergency stop procedures. Machine transport and storage. EM70SLF PLASTER/MORTAR MIXER •...

  • Page 6: Nameplate And Safety Decals

    NAMEPLATE AND SAFETY DECALS The EM-70SLF plaster and mortar mixer is equipped with a number of safety decals. These decals are provided for operator safety and maintenance information. Figure 1 below illustrates these decals as they appear on the machine. Should any of these decals become unreadable, replacements can be obtained from your dealer or the MQ Parts Department.

  • Page 7: Safety Information

    SAFETY INFORMATION Do not operate or service the equipment before reading Potential hazards associated with the operation of this the entire manual. Safety precautions should be followed equipment will be referenced with hazard symbols which at all times when operating this equipment. may appear throughout this manual in conjunction with Failure to read and understand the safety safety messages.
  • Page 8 „ NEVER use accessories or attachments that are not „ Avoid wearing jewelry or loose-fi tting clothes that may recommended by Multiquip for this equipment. Damage snag on the controls or moving parts as this can cause to the equipment and/or injury to the user may result.
  • Page 9 SAFETY INFORMATION ENGINE SAFETY WARNING „ NEVER place your hands inside the drum DANGER while starting or operating this equipment. „ Engine fuel exhaust gases contain poisonous carbon „ NEVER disconnect any emergency monoxide. This gas is colorless and odorless, and can or safety devices.
  • Page 10 SAFETY INFORMATION FUEL SAFETY „ ALWAYS tie down equipment during transport by securing the equipment with rope. DANGER „ NEVER tip the engine to extreme angles during lifting „ DO NOT start the engine near spilled fuel or combustible as this may cause oil to gravitate into the cylinder head, fl uids.
  • Page 11 SAFETY INFORMATION ENVIRONMENTAL SAFETY/DECOMMISSIONING EMISSIONS INFORMATION NOTICE NOTICE Decommissioning is a controlled process used to safely The gasoline engine used in this equipment has been retire a piece of equipment that is no longer serviceable. designed to reduce harmful levels of carbon monoxide If the equipment poses an unacceptable and unrepairable (CO), hydrocarbons (HC) and nitrogen oxides (NOx) safety risk due to wear or damage or is no longer cost...

  • Page 12: Towing Guidelines

    TOWING GUIDELINES TOWING SAFETY PRECAUTIONS „ Check the wheel mounting lug nuts with a torque wrench. Torque the lug nuts as described in the Maintenance NOTICE section of this manual. Check with your county or state towing safety „ Check the tightness of the axle mounting hardware. regulations department before towing your mixer.
  • Page 13 TOWING GUIDELINES TOW BAR TO VEHICLE (COUPLER ONLY) 1. Check the vehicle hitch ball and the mixer’s coupler for signs of wear or damage. Replace any parts that are worn or damaged before towing. 2. Use only a 2-inch ball diameter for the towing vehicle. This will match the mixer’s 2-inch coupler.

  • Page 14: Safety Chain Connection

    SAFETY CHAIN CONNECTION 4. Loop (cross) the safety chain and place it under the tow CAUTION bar. Secure the loop with the safety chain connector NEVER tow the mixer with the safety chain removed. link. See Figure 5. The safety chain is intended to prevent complete separation of the mixer from the towing vehicle in the event of a tow bar failure.

  • Page 15: Specifications (Mixer)

    SPECIFICATIONS (MIXER) Table 1. Mixer Specifications Max. Mixing Capacity 7.0 ft.³ (198 liters) Bag Capacity 1.5–2.5 bags Weight 690 lb. (313 kg) Drive V-belt/gear Dump Action Manual Figure 7. Mixer Dimensions Table 2. Mixer Dimensions Reference Letter/Parameter Dimensions in. (cm) (A) Height –...

  • Page 16: Specifications (Engine)

    SPECIFICATIONS (ENGINE) Table 4. Engine Specifications Model MPower 177F-BH Type 4 stroke, OHV, single cylinder tilt 25° Bore × Stroke 3.00 in. × 2.20 in. (76 mm × 55 mm) Displacement 16.48 in.³ (270 cm³) Max. Output 9.0 hp (6.7 kW) @ 3,600 rpm Torque 93 Nm /68.5 lbf-ft @ 420 rpm Fuel Tank Capacity...

  • Page 17: General Information

    GENERAL INFORMATION APPLICATION ENGINE MAINTENANCE This mixer is intended for the mixing of plaster and mortar For basic engine maintenance, refer to the Engine only. The mixer must be used for its intended purpose and Maintenance section in this manual. For more detailed is not suitable for the mixing of flammable or explosive engine maintenance, refer to the MPower engine owner’s substances.

  • Page 18: Components (Mixer)

    COMPONENTS (MIXER) Figure 9. Mixer Components PAGE 18 — EM70SLF PLASTER/MORTAR MIXER • OPERATION MANUAL — REV. #0 (09/22/22)
  • Page 19 COMPONENTS (MIXER) 1. Safety Grill — Provided for operator safety. This safety 10. Chock Blocks (Option) — When the mixer is not grill is designed to keep hands and solid objects out connected to the towing vehicle, place these blocks of the mixing drum when in use.

  • Page 20: Components (Engine)

    COMPONENTS (ENGINE) 5. Fuel Valve Lever — OPEN to let fuel flow, CLOSE to stop the flow of fuel. 6. Oil Drain Bolt — Remove this bolt to drain oil from the engine’s crankcase. 7. Dipstick/Oil Filler Cap — Remove this cap to determine if engine oil is low.

  • Page 21: Inspection

    INSPECTION BEFORE STARTING 4. If the oil level (Figure 12) is low, fill to the edge of the oil filler hole with the recommended oil type (Table 6). 1. Read all safety instructions at the beginning of this Refer to Table 4 for engine oil capacity. manual.
  • Page 22 INSPECTION TIRES EMERGENCY STOP SWITCH Check for worn or defective tires (Figure 13). Replace any The engine emergency stop switch (Figure 15) defective or worn tires immediately. should be tested every time the engine is started. See Starting the Mixer in the Operation section for more BALDNESS information.
  • Page 23 INSPECTION PADDLE BLADE ADJUSTMENT Adjust paddles as shown in Figure 16. CENTER ENGINE END CAST PADDLE ENGINE END CAST PADDLE DRUM END CENTER TOW END CAST PADDLE TOW END CAST PADDLE PADDLE BLADE IS TOO TIGHT AGAINST DRUM DRUM SIDE SIDE WALLS CORRECT INCORRECT...

  • Page 24: Operation

    OPERATION This section is intended to assist the operator with the initial 3. Move the throttle lever (Figure 19) away from the slow startup of the mixer. It is extremely important position, about 1/3 of the way toward the fast position. that this section be read carefully before attempting to use the mixer in the field.
  • Page 25 OPERATION 6. Place the belt slip lever in the START/STOP 8. Once the engine has started, the emergency stop (disengaged) position. See Figure 22. switch should be tested for proper operation. Push the emergency stop switch (Figure 24) and observe that the engine has stopped.
  • Page 26 OPERATION MIXING 1. Pull the drum latch pin (Figure 25) and place it on the left side (mix position) of the stop block. NOTICE Orientation of the drum stop block is viewed from the BELT SLIP tow bar end of the mixer. The stop block is welded to LEVER the front side of the drum.
  • Page 27 OPERATION DUMPING STOPPING THE MIXER Normal Shutdown CAUTION NEVER stand in front of or behind the 1. Place the throttle lever in the IDLE (slow) position, mixing drum while it is being placed in the and let the engine idle for 3–5 minutes. See Figure 29. dump position.
  • Page 28 OPERATION Emergency Shutdown CLEANING THE MIXER In the event of an emergency, push the emergency stop After each use, thoroughly clean the entire mixer as switch inward to STOP the engine (Figure 32). described in the Maintenance section of this manual. NOTICE EMERGENCY STOP SWITCH...

  • Page 29: Maintenance (Engine)

    MAINTENANCE (ENGINE) Use Table 7 as a general maintenance guideline when servicing your engine. For more detailed engine maintenance information, refer to the engine owner’s manual supplied with your engine. Table 7. Engine Maintenance Schedule Every 3 Every 6 Every 2 First Month Every Year Description (3)
  • Page 30 MAINTENANCE (ENGINE) MAINTENANCE SPARK PLUG Perform scheduled maintenance procedures as defined in Remove and clean the spark plug (Figure 34). Adjust the Table 7 and below: spark plug gap to 0.027–0.031 in. (0.7–0.8 mm). This unit has electronic ignition, which requires no adjustments. DAILY Thoroughly remove dirt and oil from the engine and control area.
  • Page 31 MAINTENANCE (ENGINE) ENGINE AIR CLEANER SPARK ARRESTER CLEANING 1. Remove the air cleaner cover and foam filter element Clean the spark arrester every 6 months or 100 hours of as shown in Figure 36. operation. 1. Remove the three 4 mm screws securing the exhaust BLOW COMPRESSED deflector (Figure 37) to the muffler protector, then AIR FROM THE...
  • Page 32 MAINTENANCE (MIXER) DRUM HEAD SEALS DRUM SUPPORT BRACKET LUBRICATION On each end of the mixing drum there is a drum head There is a set of drum support brackets (Figure 41) that will containing self-adjusting graphite seals. These seals require lubrication. These brackets are intended to make consist of packing rings, split glands, and spring-activated the drum rotate freely.
  • Page 33 MAINTENANCE (MIXER) COUNTERSHAFT BEARING LUBRICATION 3. Reassemble the hub and mount the wheel. To make sure all of the bearing surfaces are in contact, tighten There is a set of countershaft bearings (Figure 42) that the adjusting nut while turning the wheel in both will require lubrication.
  • Page 34 MAINTENANCE (MIXER) MAIN GEAR AND DRIVE PINION TOOTH CONTACT 8. Rotate the mixer to the dump position and remove debris. 1. Rotate the drive pulley in both directions. 9. Thoroughly clean the entire mixer, wheels, cabinet 2. Inspect the tooth pattern. and frame.
  • Page 35 MAINTENANCE (MIXER) WARNING ALWAYS wear safety glasses when removing or installing force-fitted parts. Failure to comply may result in serious injury. 4-LUG NUTS 5-LUG NUTS Table 8 shows causes and solutions of tire wear problems. Table 8. Tire Wear Troubleshooting Wear Pattern Cause Solution...
  • Page 36 MAINTENANCE (MIXER) SUSPENSION LONG-TERM STORAGE The rigid suspension and associated components (Figure 48) For storage of the mixer for over 30 days, the following is should be visually inspected monthly for signs of excessive recommended: wear, elongation of bolt holes or loosening of the mounting „...

  • Page 37: Troubleshooting (Mixer)

    TROUBLESHOOTING (MIXER) Troubleshooting (Mixer) Symptom Possible Problem Solution Check main gear. Worn or defective main (bull) gear? ¹ Replace if worn or broken. Check pinion gear. Worn or defective pinion gear? ¹ Replace if worn. Worn or defective V-belt? ¹ Replace V-belt.

  • Page 38: Troubleshooting (Engine)

    TROUBLESHOOTING (ENGINE) Troubleshooting (Engine) Symptom Possible Problem Solution Spark plug bridging? Check gap, insulation or replace spark plug. Carbon deposit on spark plug? Clean or replace spark plug. Short circuit due to defi cient spark plug Check spark plug insulation, replace if worn. insulation? Improper spark plug gap? Set to proper gap.
  • Page 39 TROUBLESHOOTING (ENGINE) Troubleshooting (Engine) - continued Symptom Possible Problem Solution Air cleaner dirty? Clean or replace air cleaner. Improper level in carburetor? Check fl oat adjustment, rebuild carburetor. Weak in power, compression is proper and does not misfi re. Defective spark plug? Clean or replace spark plug.
  • Page 40 © COPYRIGHT 2022, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
