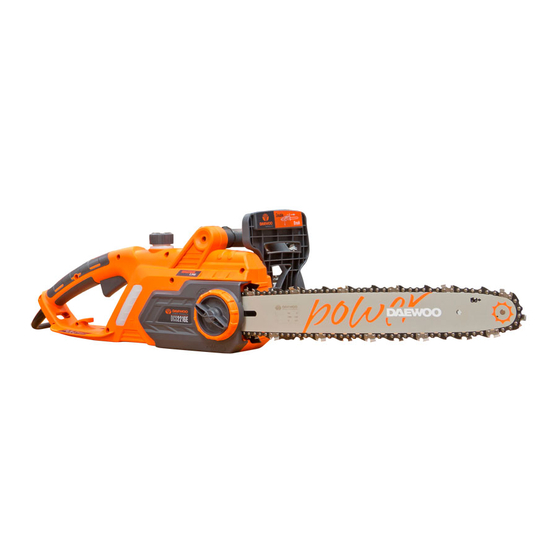

- Page 1 DCS2216E / 2416E Electric Chainsaw USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. GENERAL SAFETY INSTRUCTIONS ..................... 6 2. ELECTRICAL SAFETY ..........................7 3. MAITENANCE............................7 4. ASSEMBLY .............................. 9 5. OPERATION ............................11 6. USE ................................ 12 7. CLEANING AND MAINTENANCE ......................17 8. STORAGE AND TRANSPORT ......................19 9. DISPOSAL ............................. 19 10. - Page 6 Dear customer, Thank you for placing your trust in our product! Before using the product for the first time, please make sure you read these operating instructions! Here you will find information about how to use the product safely and ensure its long service life. You should pay attention to all of the safety instructions in this document! HOW TO USE THESE INSTRUCTIONS All of the necessary diagrams can be found on the first pages of this set of instructions.
-
Page 7: General Safety Instructions
These symbols identify the required personal protection equipment: … For your safety 1. GENERAL SAFETY INSTRUCTIONS • To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time. •... -
Page 8: Electrical Safety
– When it is cold, make sure your body and your hands, in particular, are kept warm. – Take regular breaks and move your hands at the same time to promote circulation. 2. ELECTRICAL SAFETY • The device may only be connected to a socket that is correctly installed and grounded. •... - Page 9 • Make sure that you can stand firmly and safely in each work position. When work- ing on a sloping subsurface, be espe- cially careful! • Always hold the device firmly in both hands. Use your right hand to grip the rear handle, your left hand to grip the other handle, even if you are left-handed.
-
Page 10: Assembly
• Expulsion of parts of the cut items • Damage to hearing • Breathing in of particles from cut items • Contact with petrol/oil For this reason, it is essential that this chain saw is always used with the additional per- sonal protective equipment as shown on the machine and described in these operating instructions. - Page 11 • Use tools when their use is sug- gested. WARNING! Risk of injury during assembly! Parts may only be assembled and disassembled when the motor is switched off (de-energise device). CAUTION! Risk of injuries due to cuts! The teeth of the saw chain are very sharp! Protective gloves must be worn for all work on the chain. DANGER! Risk of injury! An improperly mounted saw chain causes uncontrolled cutting behav- iour of the device! When...
-
Page 12: Operation
The saw chain is tensioned correctly if it lies close against the underside of the saw rail and can be moved easily by hand. Readjust tension of the saw chain when nec- essary (Re-tensioning the saw chain –p. 16). If there is sufficient chain greasing, the oil spraying off of the saw chain will form a slight trail. Checking the chain greasing NOTICE! Device damage! -
Page 13: Use
The rear hand guard The rear hand guard serves to protect the hand against a jumped chain and disturbing branches and twigs. Check before starting! DANGER! Risk of injury! The device must only be put into operation if no faults are found. If any part of the device is defecti- ve, it must be replaced before the next use. - Page 14 Before use, familiarize yourself sufficiently with the sawing technique for chain saws. You will find information about this in the trade literature. We recommend that you attend suitable training ses- sions. The notes here serve only as a complement! Correct posture DANGER! Risk of injury! Never work on unstable subsurfaces!
- Page 15 Avoid letting the area of the saw rail depicted on the right touch wood or other hard objects. In order to reduce the risk of injury in case of a rebound, the device is equipped with a chain brake which is triggered automatically on impact and which stops the saw chain immediately. For safety reasons, the functionality of the chain brake must be checked each time the device is used ( Checking the chain brake –...
- Page 16 With this technique, sawing occurs with the upper edge of the saw rail from below upwards. The saw chain thus pushes the device backwards towards the user. If the saw rail twists, the device can fly towards the user with great force. If the user does not balance out the force of the saw chain pushing backwards with his or her bodily force, there is a danger that only the tip of the saw rail will make contact with the wood and there will thus be a rebound ( Risk of rebound! ).
- Page 17 The felling of a tree occurs in two steps: 1. Notch the trunk by approximately one- third of its diameter on the felling direc- tion side. 2. On the other side, make the felling cut, which must be somewhat higher than the felling notch (approx.
-
Page 18: Cleaning And Maintenance
DANGER! Risk of injury! Branches that are high up or under tension can wedge the saw chain in the wood! 7. CLEANING AND MAINTENANCE DANGER! Risk of injury! Before any maintenance or cleaning work: – Pull out the plug. – Let the device cool down. DANGER! In the interest of your own safety! Only perform the maintenance work described here yourself. - Page 19 Branches that are high up or under tension can wedge the saw chain in the wood! – Remove coarse dirt. – Wipe down the device with a slightly damp cloth. Cleaning the oil guide groove of the saw rail NOTICE! Device damage! To clean the saw rail, use only a plas- tic spatula, never a steel tool.
-
Page 20: Storage And Transport
8. STORAGE AND TRANSPORT Storage DANGER! Risk of injury! Make sure that unauthorized persons do not have access to the device! Fault/malfunction Cause Remedial measure Motor not running. No mains voltage? Check cable, plug, socket and fuse. Cable faulty? Have replaced by an electri- cian. -
Page 21: Technical Data
Disposal of the packaging The packaging consists of card- board and correspondingly marked plastics that can be recycled. – Make these materials available for recy- cling. 10. TECHNICAL DATA DCS2216E DCS2416E Voltage/frequency: 220-240V~50 Hz Voltage/frequency: 220-240V~50 Hz Power: 2200 W Power: 2400 W Bar length: 405 mm (16") -
Page 22: Warranty
Manufactured under license of Daewoo International Corporation, Korea...
