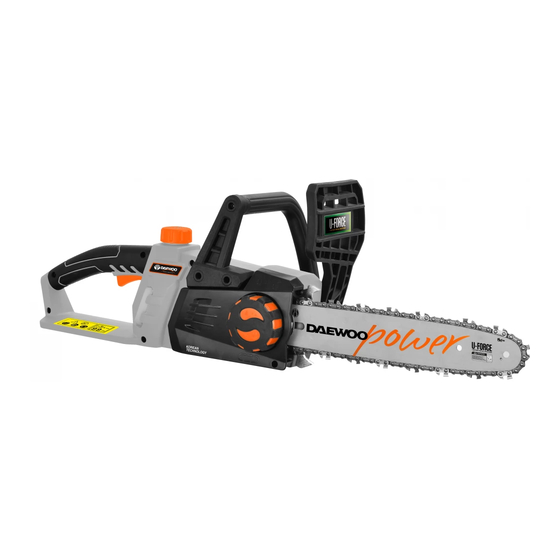

- Page 1 DALCHS18-10 Lithium Chainsaw USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SAFETY INSTRUCTIONS ........................7 2. DESCRIPTION ............................12 3. SYMBOLS ............................. 13 4. ASSEMBLY ............................. 13 5. USE ................................. 14 6. MAINTENANCE ............................17 7. TECHNICAL SPECIFICATIONS ......................17 8. TROUBLESHOOTING ..........................20 9. EXPLODED VIEW ........................... 21 WARRANTY ............................... -
Page 7: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! Read all warnings, safety instructions and other instructions carefully before use. Failure to follow all the instructions and safety instructions can result in the risk of electric shock, re and/or serious personal injury. Save these instructions and safety instructions for future referen- ce. - Page 8 ting a tool to the mains supply when the switch is in the ON position, increases the risk of accidents and injuries. • Remove adjuster keys/spanners before switching on the power tool. Spanners or the like that are left in a rotating part of the tool can cause personal injury. •...
- Page 9 SPECIAL SAFETY INSTRUCTIONS • Keep your hands and the rest of your body away from the chain when the power tool is running. Check that the chain is not touching the ground or an object when starting the product. A moment of inattention or carelessness can result in serious personal injury.
- Page 10 REDUCTION OF NOISE AND VIBRATIONS • To reduce noise and vibrations when in use, limit the time the product is used, and use low-power/vibration and noise mode and suitable safety equipment. • Take the following precautions to minimise the risks of exposure to vibrations and/or noise. •...
- Page 11 • Only use the type of battery supplied with the tool. • Recycle used batteries in accordance with local regulations. • A small amount of uid can leak out of the battery during extreme usage, or in extreme temperatu- res. Follow the instructions below if you discover uid on the battery. •...
-
Page 12: Description
REMAINING RISKS • Even if the product is used in accordance with the instructions it is impossible to rule out all risk factors. The following are potential risks associated with the type and design of the product: • Damage to lungs (if an effective face mask is not worn). •... -
Page 13: Symbols
3. SYMBOLS The following symbols may be used on the saw, the battery and/or the charger. WARNING! Wear safety gloves. Read the instructions Wear safety shoes. before use. Keep dry. Store in a dry Wear safety glasses. place. Wear ear protection. Keep at a safe distance. -
Page 14: Use
NOTE: Note the positioning of the guide when tting the chain. CHECKING THE CHAIN TENSION Check the chain tension before using for the rst time, after the rst cuts, and then about every 10 minutes. The links hanging underneath the bar should be in full contact with the bar. Tension the chain if it is too slack. - Page 15 CHECK BEFORE STARTING IMPORTANT: Do not use the chain saw if it is damaged or not working properly. Damaged parts must be repaired or replaced before using the chain saw. • Check that the chain brake is working properly. • Check that the hand guard is undamaged. •...
- Page 16 RISK OF KICKBACK WARNING! Kickback can occur if the tip or topside of the bar comes into contact with wood or other solid objects. The saw then kicks back, which can cause fatal or serious personal injury. • Always check before use that the chain brake is working properly. •...
-
Page 17: Maintenance
Follow the instructions: • If the trunk is supported along its length it can be sawn from above (top cut). (SEE FIG. 21) • If the trunk is supported in one end, it should be sawn in two steps. • First cut one third of the diameter of the trunk from underneath to prevent splitting. Then saw from the top to meet the rst cut and avoid the bar getting clamped. - Page 18 CHECKING THE CHAIN LUBRICATION Do not use the chain saw without adequate lubrication of the chain, this will wear out the chain quicker. 1. Check the oil level in the tank. 2. Start the chain saw. 3. Run the chain when holding the bar about 15 cm over a suitable surface for 15 seconds. If the chain lubrication is working properly there should be splashing of oil on the surface.
-
Page 19: Technical Specifications
• Check the bar at regular intervals for wear and damage, and replace if necessary. • Clean the oil channels on the bar to ensure proper lubrication of the bar and chain. WARNING! Never t a new chain on a worn sprocket or worn guide ring. CHECKING THE CHAIN TENSION 1. -
Page 20: Troubleshooting
Noise and vibration measured ACC. to EN 60745-1:2009/A11:2010, EN 60745-2-13:2009/A1:2010 Sound pressure level L 86.9 dB (A), K=3 dB Deviation K Sound power L (measured) 97 dB (A), K=2,37 dB Deviation K Sound power L (guaranteed) 99 dB (A) Always wear ear protection The declared values for vibration and noise, which have been measured according to a standardi- sed test method, can be used to compare different tools with each other and for a preliminary assessment of exposure. -
Page 21: Exploded View
9. EXPLODED VIEW... - Page 22 1. Rotary knob (x1) 68. Oil tank (x1) 2. Screw (x3) 69. Rubber sheath on oil tank (x1) 70. Oil tak cap assembly (x1) 3. Konb cover plate (x1) 4. Spring (x3) 71. Spring (x1) 5. Steel ball (x3) 72. Seal ring (x1) 73.
-
Page 23: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 2 years for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 24 Manufactured under license of Daewoo International Corporation, Korea...
