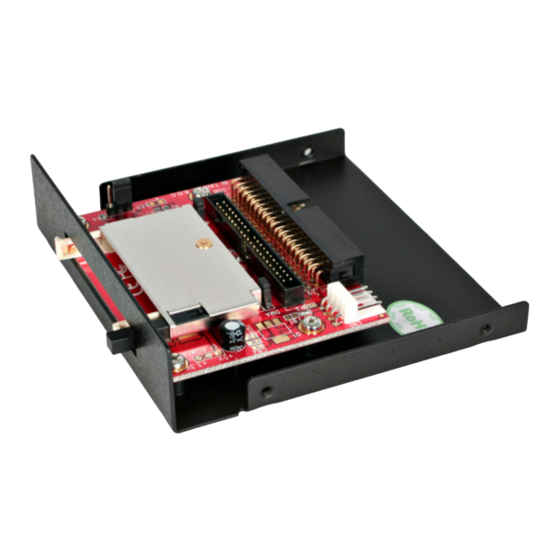

CompactFlash Card to IDE/SATA Adapter
with 3.5" Bay Enclosure
35BAYCF2IDE
35BAYCF2SAT
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/25/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com 35BAYCF2IDE
Summary of Contents for StarTech.com 35BAYCF2IDE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/25/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front Panel Mount Configuration ....................... 2 Rear Slot Mount Configuration ......................2 Installation ....................3 Front Panel Mount Installation ......................3 Rear Panel Mount Installation ......................4 Driver Installation ............................4 Operating notes ..................5 Jumper Settings ............................ -
Page 4: Introduction
CompactFlash media, installed in either the front or back of your computer based on individual needs, connected to the host computer using either an IDE (35BAYCF2IDE) or SATA (35BAYCF2SAT) connection. Packaging Contents • 1 x CompactFlash Adapter • 1 x 3.5”... -
Page 5: Front Panel Mount Configuration
Front Panel Mount Configuration 35BAYCF2IDE pictured CF Ejection tab Master/Slave jumper 44-pin IDE connector SP4 Power connector 40-pin IDE connector Rear Slot Mount Configuration 35BAYCF2SAT pictured SP4 Power connector SATA connector Expansion Card Bracket (optional) CF Ejection tab Activity LED... -
Page 6: Installation
6. Connect an available SP4 power connector (provided by computer power supply), to the power port on the CompactFlash adapter. 7. Connect the SATA (for 35BAYCF2SAT) or IDE (for 35BAYCF2IDE) port on the CompactFlash adapter to an available SATA or IDE connector on the motherboard, using a standard SATA or IDE cable. -
Page 7: Rear Panel Mount Installation
SP4 power connector (provided by computer power supply), to the power port on the CompactFlash adapter. 5. Connect the SATA (for 35BAYCF2SAT) or IDE (for 35BAYCF2IDE) port on the CompactFlash adapter to an available SATA or IDE connector on the motherboard as appropriate, using a standard SATA or IDE cable (as appropriate). -
Page 8: Operating Notes
Jumper Settings Please note that 35BAYCF2IDE allows you to select Master or Slave designation for the connected CompactFlash card, using an onboard jumper. Once you have determined which setting you wish to use, simply locate the jumper on the adapter and adjust. -
Page 9: Specifications
Specifications 35BAYCF2IDE 35BAYCF2SAT Host Interface IDE/ATA SATA revision 1.0 3.5in Front Bay, Form Factor Expansion Card Slot (Full Profile) 1 x 40 pin IDE male 1 x 7 pin SATA male 1 x 44 pin IDE male Connectors 1 x SP4 Power male... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
