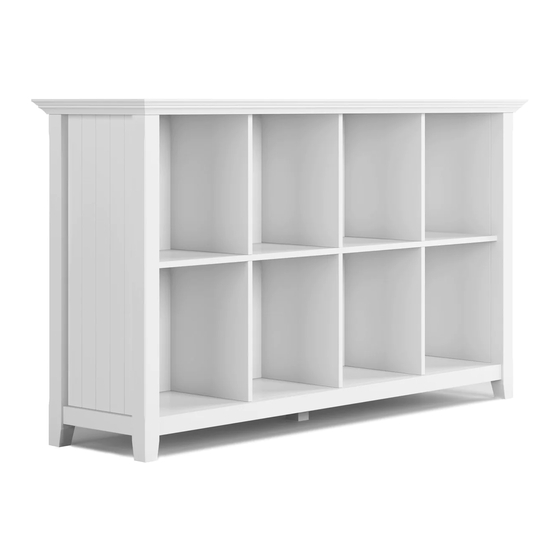

- Page 1 Acadian / Normandy / Brunswick 8 Cube Storage Sofa Table Model # AXCACA20-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCACA20-WH Part Description V16-A V16-BL V16-BR LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-D V16-E TOP DIVIDER (L&R Same) TOP SHELF BOTTOM DIVIDER (L&R Same) QTY 3 QTY 1 QTY 3 V16-F V16-G V16-HL BOTTOM SHELF...
- Page 8 Pre-Assembly Information Model # AXCACA20-WH Hardware Description CAM LOCK PIN ALLEN KEY SCREW WOOD DOWEL CAM LOCK M6 X 30mm M8 X 30mm QTY 18 SETS QTY 27 QTY 17 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW ALLEN KEY M4 X 15mm M4 X 25mm QTY 1 QTY 34...
- Page 9 Components - Key Diagram Model # AXCACA20-WH V16-A V16-HL V16-H V16-H V16-HR V16-E V16-C V16-C V16-C V16-D V16-D V16-D V16-F V16-BR V16-BL V16-G...
- Page 10 Assembly Model # AXCACA20-WH Step 1 V16-C V16-C V16-C V16-E 1. Insert 1 Dowel 3 into guide hole on each Top Divider V16-C . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCACA20-WH Step 2 V16-C V16-C V16-C V16-D V16-D V16-E V16-D 1. Insert 1 Dowel 3 into guide hole on each Bottom Divider V16-D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCACA20-WH Step 3 V16-C V16-C V16-D V16-C V16-D V16-D V16-E V16-F 1. Insert 1 Dowel 3 into guide holes on each Bottom Divider V16-D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCACA20-WH Step 4 V16-BR V16-E V16-F V16-BL...
- Page 14 Assembly Model # AXCACA20-WH Step 5 V16-BR V16-A V16-C V16-C V16-C V16-BL V16-F V16-G...
- Page 15 Assembly Model # AXCACA20-WH Step 6 Warning Label V16-A V16-HR V16-H V16-H V16-HL 1. Attach Back Panels V16-H , V16-HL , V16-HR to back frame of cube storage using 34 Phillips Screws Round Head 5 through guide holes. 2. Use Phillips Screwdriver to tighten screws.
- Page 16 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 7 NOTE: The screwdriver is not included in the hardware pack.
- Page 17 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
