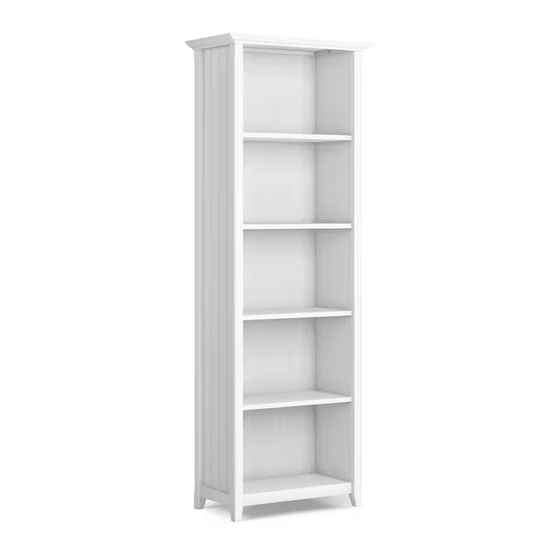

- Page 1 Acadian / Normandy / Brunswick 5 Shelf Bookcase Model # AXCACA55-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. -
Page 7: Bottom Shelf
Pre-Assembly Information Model # AXCACA55-WH Part Description V16-AL V16-AR V16-B LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 V16-C V16-D V16-E CABINET SHELF BOTTOM SHELF MIDDLE SHELF QTY 3 QTY 1 QTY 1 V16-F Warning Label BACK PANEL QTY 1... - Page 8 Pre-Assembly Information Model # AXCACA55-WH Hardware Description CAM LOCK PIN ALLEN KEY SCREW ALLEN KEY M6 X 30mm CAM LOCK QTY 1 QTY 6 SETS QTY 12 M4 X 25mm - QTY 2 ( 1 is extra ) M4 X 15mm - QTY 1 PHILLIPS SCREW M4 X 25mm - QTY 1 ROUND HEAD...
- Page 9 Components - Key Diagram Model # AXCACA55-WH V16-B V16-AR V16-AL V16-F V16-E V16-E V16-D V16-E V16-C...
- Page 10 Assembly Model # AXCACA55-WH Step 1 V16-AR V16-AL 1. Attach three Cam Lock Pins 2 into pre-drilled holes on each Side V16-AL , V16-AR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCACA55-WH Step 2 V16-AL V16-D V16-AL V16-D 1. Align Cam Lock Pin with guide holes and attach Middle Shelf V16-D to Left Side V16-AL . 2. Insert three Cam Locks 2 into guide holes on Middle Shelf V16-D . 3.
- Page 12 Assembly Model # AXCACA55-WH Step 3 V16-AL V16-D V16-C V16-AL V16-D V16-C 1. Use three Allen Key Screws 1 to attach Bottom Shelf V16-C through guide holes from Bottom Shelf V16-C to pre-drilled holes of Left Side V16-AL . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 13 Assembly Model # AXCACA55-WH Step 4 V16-AR V16-D V16-AL V16-C V16-AR V16-D V16-AL V16-C 1. Repeat Step 2-3 for Right Side V16-AR .
- Page 14 Assembly Model # AXCACA55-WH Step 5 V16-B V16-AR V16-AL 1. Attach Top V16-B to Sides V16-AL , V16-AR using six Allen Key Screws 1 through guide holes from Sides V16-AL , V16-AR (3 screws on each Side). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCACA55-WH Step 6 Note: Warning Label V16-F V16-F 1. Use Phillips Screws Round Head 5 to attach Back Panel V16-F through guide holes to the back of Bookcase. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # AXCACA55-WH Step 7 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 V16-E V16-E V16-E V16-E V16-E 1. Use four Shelf Supports 4 for each Cabinet Shelf V16-E in desired location. 2. Two Shelf Supports 4 may be used on back top of each Cabinet Shelf V16-E as a tipping restraint.
- Page 17 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 8 NOTE: The screwdriver is not included in the hardware pack.
- Page 18 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
