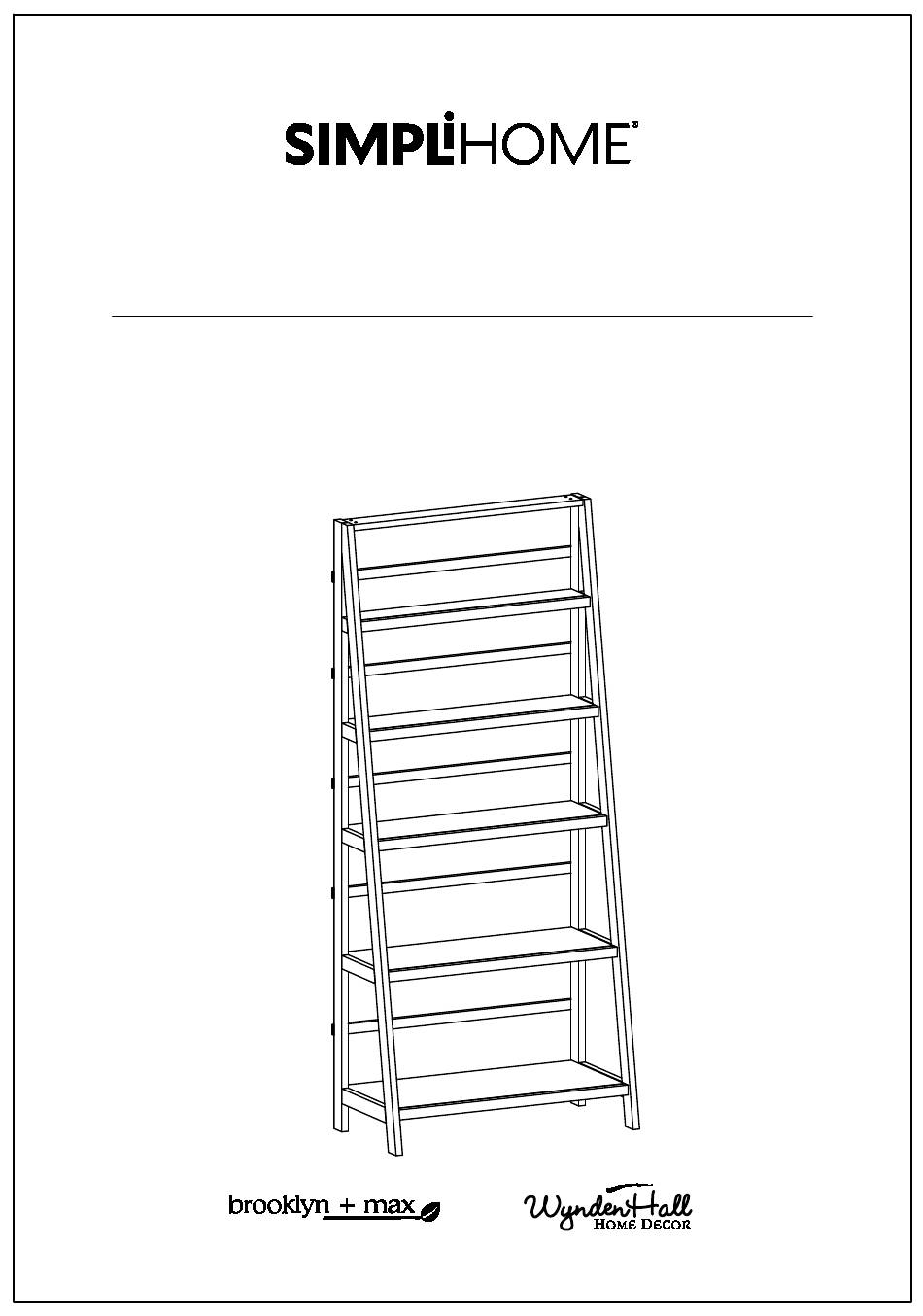

- Page 1 Acadian / Normandy / Brunswick Bookcase Model # AXCACA09-WH...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCACA09-WH Part Description V16-B V16-AL V16-AR BACK BAR LEFT SIDE RIGHT SIDE QTY 5 QTY 1 QTY 1 V16-C V16-D V16-E SHELF SHELF SHELF QTY 1 QTY 1 QTY 1 V16-F V16-G V16-H SHELF SHELF SHELF...
- Page 8 Pre-Assembly Information Model # AXCACA09-WH Hardware Description CAM LOCK PIN WOOD DOWEL PHILLIPS SCREW CAM LOCK M4 X 30mm M8 X 30mm QTY 24 SETS QTY 20 QTY 2 M4 X 25mm - QTY 2 ( 1 is extra )
- Page 9 Components - Key Diagram Model # AXCACA09-WH V16-H V16-B V16-G V16-B V16-F V16-B V16-E V16-B V16-D V16-B V16-C V16-AL V16-AR...
- Page 10 Assembly Model # AXCACA09-WH Step 1 V16-F V16-H V16-E V16-D V16-C V16-G V16-AL 1. Insert one Dowel 3 into pre-drilled hole on Shelf V16-C . 2. Use rubber mallet to tap Dowel 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 Assembly Model # AXCACA09-WH Step 2 V16-AR V16-H V16-G V16-F V16-E V16-D V16-C 1. To attach Right Side V16-AR to Shelves V16- C V16- D V16- E V16- F V16- G V16- H , repeat step 1.
- Page 12 Assembly Model # AXCACA09-WH Step 3 V16-AR V16-F V16-E V16-C V16-AL 1. Attach Brackets 4 to bottom corner of Shelves V16-C V16-E V16-F and Sides V16- V16- using Phillips Screw Round Heads 5 . AL , 2. Use phillips screwdriver to tighten Screws.
- Page 13 Assembly Model # AXCACA09-WH Step 4 V16-B V16-B V16-B V16-AL V16-B V16-B V16-B V16-AR 1. Attach Back Bars V16-B to back of Sides using Phillips Screws 2 into pre-drilled holes. 2. Use phillips screwdriver to tighten Screws.
- Page 14 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 5 NOTE: The screwdriver is not included in the hardware pack.
- Page 15 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
