Controls MVP-M102 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Product Manual
Part Number: MVP-M102
Revision: 1.0
______________________________________________________________________________________________________________________________________
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-M102 and is the answer not in the manual?

Questions and answers

Related Manuals for Controls MVP-M102

Summary of Contents for Controls MVP-M102

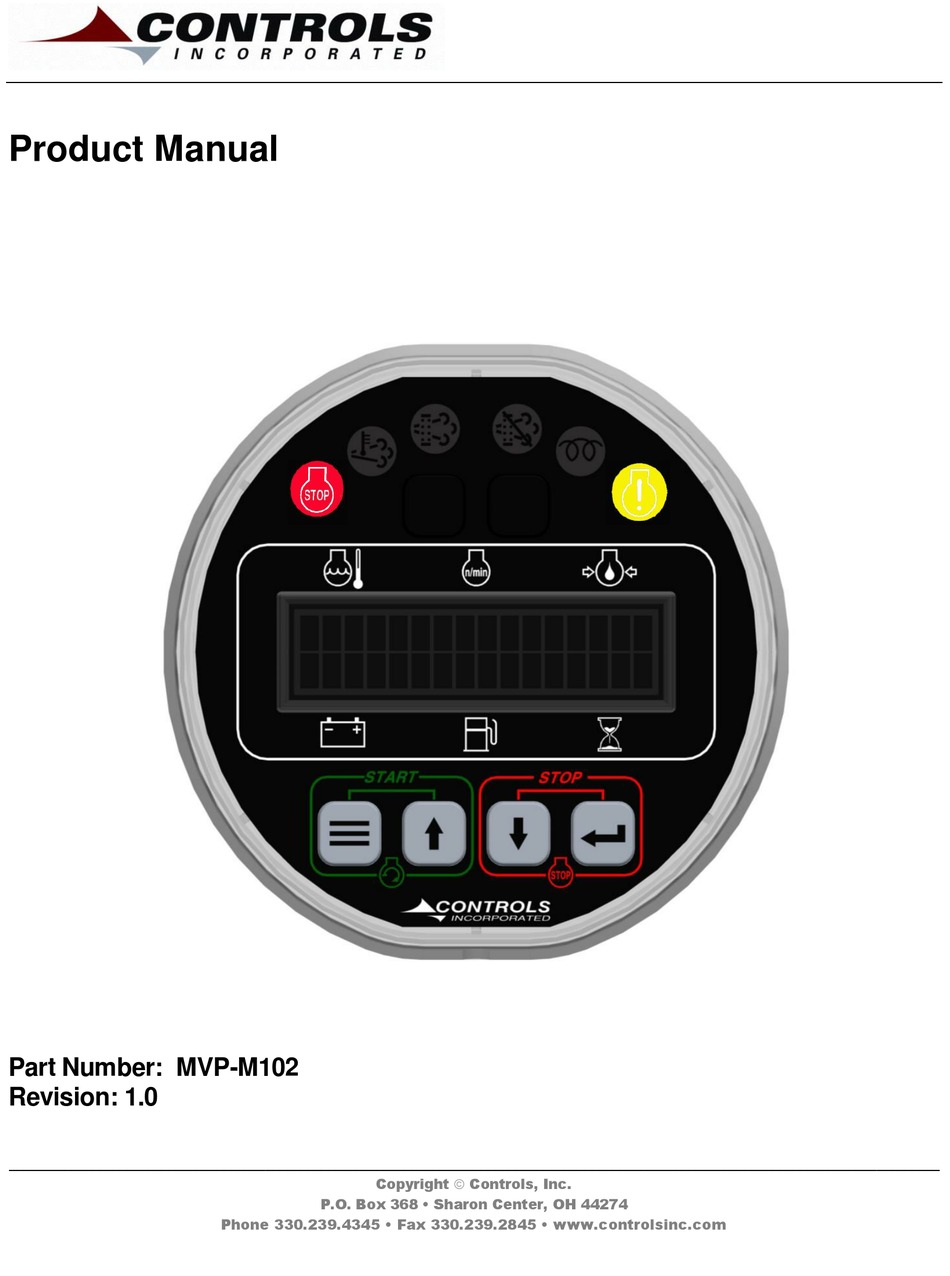

  • Page 1 Product Manual Part Number: MVP-M102 Revision: 1.0 ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS PRIOR TO ENGINE START ………………...…………………………………………………………………….….…….……….…………... CAN Bus CONFIGURATION INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..

  • Page 3: Prior To Engine Start

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Prior to starting the engine, select the proper throttle control mode and parameters required for application.

  • Page 4: Installation Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 3 -...

  • Page 5: Connector Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION - 4 -...

  • Page 6: Engine Alarms, Codes And Messages

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes.

  • Page 7: Active And Stored Engine Ecu Codes

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Engine Fault Alarm Lamp Lamp Active and Stored Engine ECU Codes The panel also provides the ability to check the engine ECU for all ACTIVE and STORED engine ECU codes.

  • Page 8: Control Panel Analog And Digital Inputs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel has one analog input and up to one digital input available to monitor other components, senders or signals.
  • Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Analog 1 Function Options 1) Fuel Level S-W – Fuel amount, in percentage, can be measured and displayed using a standard Stewart Warner scale sender of 240 ohms –...

  • Page 10: Menu System

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
  • Page 11 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
  • Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Input Configuration Analog 1 Function Digital 1 Function Module Configuration Units (English/Metric)
