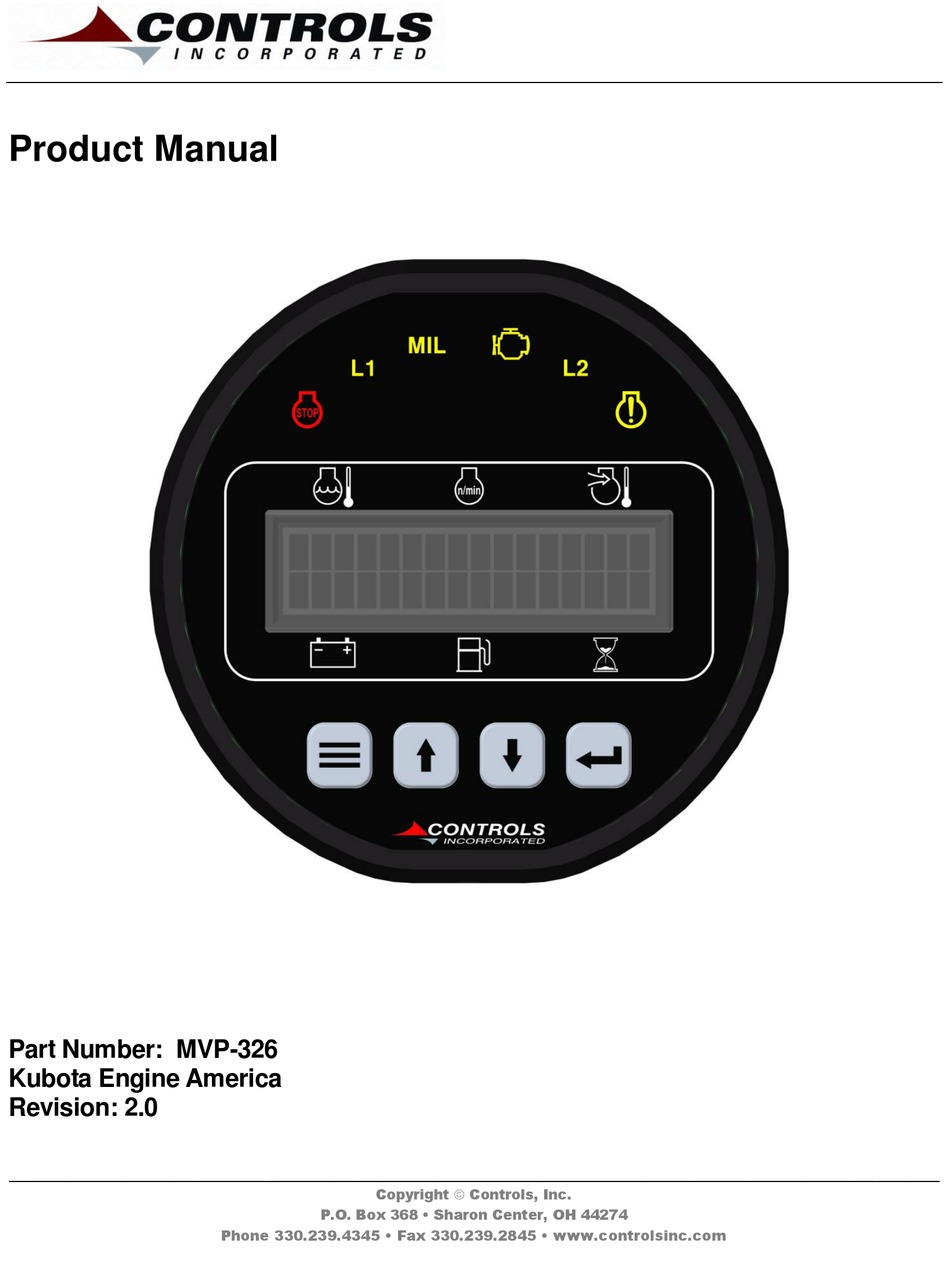

Product Manual
Part Number: MVP-326
Kubota Engine America
Revision: 2.0
______________________________________________________________________________________________________________________________________
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-326 and is the answer not in the manual?

Questions and answers

Related Manuals for Controls MVP-326

Summary of Contents for Controls MVP-326

  • Page 1 Product Manual Part Number: MVP-326 Kubota Engine America Revision: 2.0 ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS OPERATING SPECIFICATIONS.. ……...…………………………………………………………………….….……………………….…………... INSTALLATION INFORMATION ……...………………………………...…………………………………………………………………..CONNECTOR INFORMATION ……...………………………………...……………………………………..…………………………………. MENU SYSTEM ……………………………………………………………………………………………..…………………………..…………………….……...

  • Page 3: Operating Specifications

    S Y S T E M S & S O L U T I O N S MVP-326 OPERATING SPECIFICATIONS ECO MODE OFF MODE - Standard throttle control using UP and DOWN buttons (between MIN SPEED 800 rpm and MAX SPEED 2400 rpm).
  • Page 4 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S If the Leaf Detector input becomes disengaged, a Leaf Detector Delay (10 seconds, not configurable) is started.

  • Page 5: Installation Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 4 -...

  • Page 6: Connector Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION BATTERY B+ CLUTCH 1 CAN HIGH THROTTLE DOWN LEAF DETECT CAN LOW...

  • Page 7: Menu System

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
  • Page 8 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
  • Page 9 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Manufacturer TSC Minimum Speed TSC Maximum Speed Performance Display Off/On...
  • Page 10 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Sender Check By-Pass (Default = 0:10) Engine Safety Configuration Oil Pressure Check (Default = Run)
  • Page 11 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Maintenance Configuration Service Messages Schedule Selection Schedule Reset Schedule Interval Schedule Warning Schedule Trip...

  • Page 12: Engine Alarms, Codes And Messages

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes.

  • Page 13: Active And Stored Engine Ecu Codes

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Engine Fault Alarm Lamp Lamp Active and Stored Engine ECU Codes The panel also provides the ability to check the engine ECU for all ACTIVE and STORED engine ECU codes.

  • Page 14: Engine Parameters

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE PARAMETERS CAN Bus Communication This module communicates to the engine ECU via the J1939 CAN Bus network. This is a two wire connection to the engine ECU.

  • Page 15: Control Panel Digital Inputs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL DIGITAL INPUTS The panel has three digital inputs with one available to monitor other components, senders or signals.
  • Page 16 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Digital Input Function Activation 1) Off / Always / Run – Describes when the parameter will be monitored for alarm conditions.

  • Page 17: Prior To Engine Start

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Prior to starting the engine, select the proper throttle control mode and parameters required for application.

  • Page 18: Control Panel Specific Alarms And Shut Downs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS The panel has its own engine safety alarms and shut downs that can be enabled. These alarms and shut downs are managed by the control panel independent from the engine ECU.
  • Page 19 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S NOTES: 1) Off / Always / Run – Describes when the parameter will be monitored for alarm conditions. Run refers to when the engine is running.
