User Manual
IP CA M E R A
TCN-20M
(COD. KUNTC20M)
DT01846HE0510R00
1/38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCN-20M and is the answer not in the manual?

Questions and answers

Related Manuals for HESA TCN-20M

Summary of Contents for HESA TCN-20M

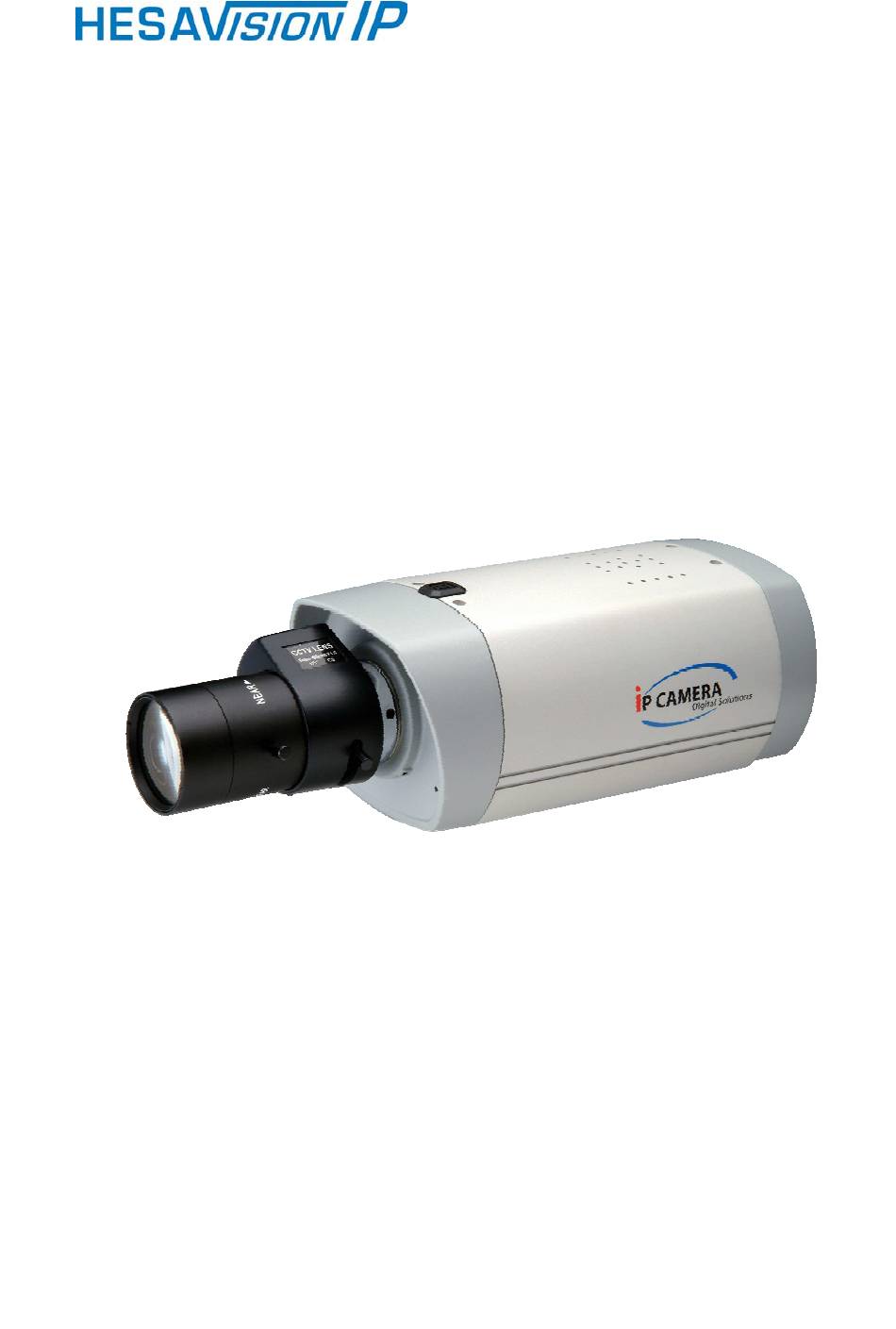

  • Page 1 User Manual IP CA M E R A TCN-20M (COD. KUNTC20M) DT01846HE0510R00 1/38...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION_TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE.............................. 4 PRODUCT SPECIFICATIONS......................4 III. PRODUCT INSTALLATION ......................... 6 ............................6 ONITOR ETTING I/O P ..................7 ARDWARE NSTALLATION AND SSIGNMENT IP A ..............................9 SSIGNMENT :..........................11 NSTALL CTIVE CONTROL LIVE VIDEO ............................13 CONFIGURATION ..........................15 ................................16 YSTEM ................................19 ETWORK A/V S ..............................25 ETTING...

  • Page 4: Preface

    I. Preface This is a CMOS IP camera with the web server built in. User can view real-time video via IE browser. It supports H.264, JPEG and MPEG4(3GPP Only) video compression which provides smooth and high video quality. The video can be stored in the SD card and playback remotely.
  • Page 5 Ethernet 10/ 100 Base-T Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP Wireless (Optional) Wireless 802.11b/g Security WEP,WPA-PSK,WPA2-PSK System 1600x1200, 1280x1024, 1280x960,1280x720, Video Resolution 800x600,640x480, 320x240, 176x144 Triple Streaming CMOS setting Brightness, Contrast, Sharpness, BLC, Night Mode Image snapshot Full screen monitoring...

  • Page 6: Product Installation

    III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 6/38...

  • Page 7: Hardware Installation And I/O Pin Assignment

    B. Hardware Installation and I/O Pin Assignment Connect power adaptor Connect IP Cam to PC or network with Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”. PoE ( Power Over Ethernet) 802.3af, 15.4W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a...
  • Page 8 Ethernet PoE IP Camera Ethernet Cable Switch Ethernet Cable PoE IP Camera 8/38...

  • Page 9: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe_Chinese version IPInstallerEng.exe_English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE)
  • Page 10 Please make sure the subnet of PC IP address and IP CAM IP address are the same. The same Subnet: IP CAM IP address: 192.168.1.200 PC IP address: 192.168.1.100 Different Subnets: IP CAM IP address: 192.168.2.200 PC IP address: 192.168.1.100 To Change PC IP address: Control Panel Network Connections...

  • Page 11: Install Active Xcontrol

    D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
  • Page 12 When popup the following dialogue box, click “Yes”. 12/38...

  • Page 13: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the IP CAMERA_The following program interface shows.
  • Page 14 _Get into the administration page _Video Snapshot Show system time, video resolution, and video refreshing rate Select video streaming source (When streaming 2 setting in_Video Setting_ is closed, this function will not display) IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connects to the PC to talk to server side, which is IP Camera side Control the relay which is connected to this camera.

  • Page 15: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 15/38...

  • Page 16: System

    A. System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name_This is the Camera name. This name will show on the IP Installer. Select language_There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 17 User Management IP CAMERA supports three different users, administrator, general user, and anonymous user. Anonymous User Login_ Yes_Allow anonymous login No_Need user name & password to access this IP camera Add user_ Type the user name and password, then click “Add/Set”. Click “edit”...
  • Page 18 iii_ System update_ To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system_re-start the IP camera Factory default_delete all the settings in this IP camera. Setting Management_User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 19: Network

    B. Network IP Setting IP Camera supports DHCP and static IP. DHCP_Using DHCP, IP Camera will get all the network parameters automatically. Static IP_Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 20 Please follow the procedure to activate UPnP open the Control Panel from the Start Menu select Add/Remove Programs Select Add/Remove Windows Components and open Networking Services section Click Details and select UPnP to setup the service The IP device icon will be added to “MY Network Places” User may double click the IP device icon to access IE browser PPPoE_ Select “Enabled”...
  • Page 21 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 22 Camddns service_ Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating_Information update Idle_Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com_Register successfully. Update Failed, the name is already registered_The user name has already been used.
  • Page 23 iv_ Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice_Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks_ scan all wireless services.
  • Page 24 Authentication_There are Open System and Shared Keys, it is based on different encryptions. This has to be the same as the Router’s setting. Encryption_There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. Key Type_There are HEX and ASCII.

  • Page 25: A/V Setting

    C. A/V Setting Image Setting For the security purpose, there are three areas can be setup for privacy mask. Click Area button first and pull a area on the above image. Finally, click Save button to reserve the setting. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. Adjust “Brightness”, “Contrast”, “Hue”, “Saturation”...
  • Page 26 Video System: click the drop down list to select the system type Streaming 1 Basic Mode_ Resolution_ There are 8 resolutions can be chosen. 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Quality_ There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is.
  • Page 27 Streaming 1 Advanced Mode_ Resolution_ There are 8 resolutions can be chosen. 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Bitrate Control Mode There are CBR_Constant Bit Rate_ and VBR_Variable Bit Rate_to use. CBR_32Kbps~4Mbps (the higher the CBR is, the better the video quality is) VBR_1(Low)~10(High) –...
  • Page 28 1600x 1200, 1280x1024, 1280x960, 1280x720, 800x600, 640x480, 320x240, 176x144 Quality_ There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate_The video refreshing rate per second. Video Format_H.264 or JPEG RTSP Path: RTSP output connecting route Streaming 2 Advanced Mode_...
  • Page 29 3GPP mode suggested setting: 176x144 resolution, 5FPS, MPEG4 format Enable or Disable 3GPP Streaming 3GPP: 3GPP output name iii_ Audio_ IP CAMERA supports 2-way audio. User can send audio from IP Camera Built-in mic to remote PC; User can also send audio from remote PC to IP Camera’s external speaker.

  • Page 30: Event List

    D. Event List IP CAMERA provides multiple event settings. Event Setting Motion Detection_ IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 31 Multi-JPEG (With Record File Setting), only with JPEG compression format. Single JPEG (Single File with Interval Setting) Record Time Setting_ Pre Alarm and Post Alarm setups for video start and end time when motion detected, I/O, or other devices got triggered. Note: Pre/Post Alarm record time is base on record time setting and IP Cam built-in Ram memory.
  • Page 32 CATUTION!! Please connect to propriety relay box to reduce the risk of electric shock & damaged. A l a r m I n p u t S e t t i n g By GPIO I/O port input that provide related action while I/O input triggered. G P I O O u t p u t S e t t i n g...
  • Page 33 Trigger the normal on (Normal Close) indoor illumination off when event / motion occur at COM: 9PIN D-SUB WEB SERVER / IP CAMERA iv_ Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. v_ SD card Please Insert SD card before use it.
  • Page 34 Playback_ It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del.

  • Page 35: Network Configuration

    VI. Network Configuration Configuration 1_ Internet Access_ADSL or Cable Modem IP address_One real IP or one dynamic IP Only IP CAMERA connects to the internet For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start PPPoE.
  • Page 36 iii_ Configuration 3_ Internet Access_ADSL or Cable Modem IP address_one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed_IP sharing Use virtual IP, set up port forwarding in IP sharing. 36/38...

  • Page 37: Factory Default

    VII. Factory Default To recover the default IP address and password, please follow the following steps. Remove power, and press and hold the button in the back of IP CAMERA. Factory Default iii_ Power on the camera. Don’t release the button during the system booting. iv_ It will take around 30 seconds to boot the camera.
  • Page 38 38/38...
