HESA TCN-11SDDN User Manual

Ccd ip camera with the web server built in
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

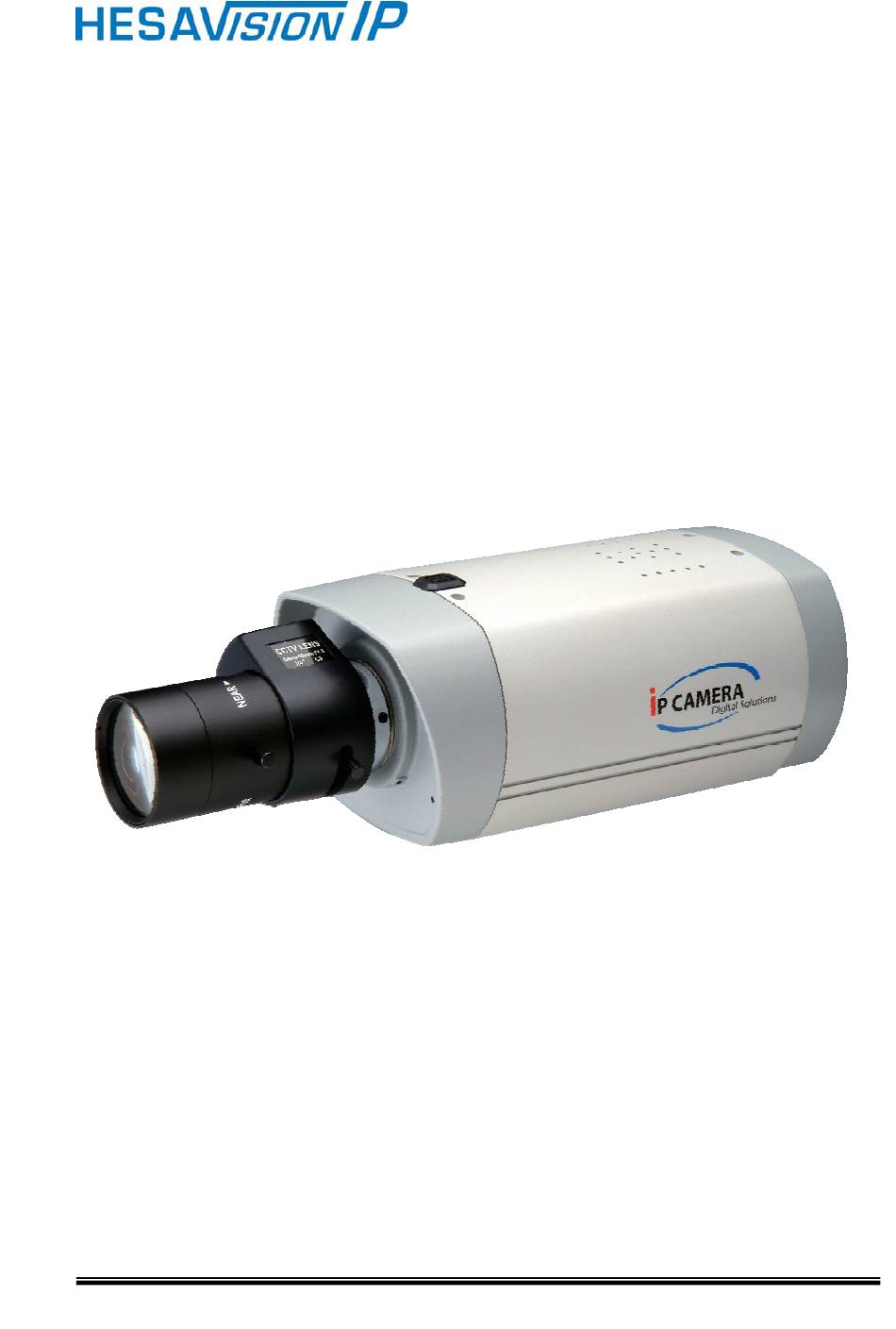

User Manual
IP CA M E R A
TCN-11SDDN
(COD. KUNTC11SD)
DT01845HE0510R00
1/36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCN-11SDDN and is the answer not in the manual?

Questions and answers

Related Manuals for HESA TCN-11SDDN

Summary of Contents for HESA TCN-11SDDN

  • Page 1 User Manual IP CA M E R A TCN-11SDDN (COD. KUNTC11SD) DT01845HE0510R00 1/36...
  • Page 2 WARINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION_TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).

  • Page 3: Table Of Contents

    Content PREFACE.............................. 4 PRODUCT SPECIFICATIONS......................4 III. PRODUCT INSTALLATION ......................... 6 ............................6 ONITOR ETTING I/O P ..................7 ARDWARE NSTALLATION AND SSIGNMENT IP A ..............................8 SSIGNMENT :..........................10 NSTALL CTIVE CONTROL LIVE VIDEO ............................12 CONFIGURATION ..........................14 ................................15 YSTEM ................................18 ETWORK A/V S ..............................24 ETTING...

  • Page 4: Preface

    I. Preface This is a professional CCD IP camera with the web server built in. User can view real-time video via IE browser. It supports MPEG-4 & JPEG video compression which provides smooth and high video quality. The video can be stored in the SD card and playback remotely.
  • Page 5 Network Protocol HTTP, TCP/ IP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP Wireless (Optional) Wireless 802.11b/g 64/ 128 bit System NTSC_720x480, 704x480,352x240, 176x120 Video Resolution PAL_720x576, 704x576,352x288, 176x144 Video adjust Brightness, Contrast, Saturation, Hue CCD setting AES, BLC, AGC, Day/ Night(Auto) Image snapshot Full screen monitoring Compression format...

  • Page 6: Product Installation

    III. Product Installation A. Monitor Setting Right-Click on the desktop. Select “ Properties” Change color quality to highest (32bit). 6/36...

  • Page 7: Hardware Installation And I/O Pin Assignment

    B. Hardware Installation and I/O Pin Assignment Connect power adaptor Connect IP Cam to PC or network with Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for IP CAMERA”. I/O Pin Assignment: Please refer to following figure.

  • Page 8: Ip Assignment

    C. IP Assignment Use the software, “IP Installer” to assign the IP address of IP CAMERA. The software is in the attached software CD. IP installer supports two languages IPInstallerCht.exe_Chinese version IPInstallerEng.exe_English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE)
  • Page 9 Please make sure the subnet of PC IP address and IP CAM IP address are the same. The same Subnet: IP CAM IP address: 192.168.1.200 PC IP address: 192.168.1.100 Different Subnets: IP CAM IP address: 192.168.2.200 PC IP address: 192.168.1.100 To Change PC IP address: Control Panel Network Connections...

  • Page 10: Install Active Xcontrol

    D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
  • Page 11 When popup the following dialogue box, click “Yes”. 11/36...

  • Page 12: Live Video

    IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the IP CAMERA_The following program interface shows.
  • Page 13 _Get into the administration page _Video Snapshot Show system time, video resolution, and video refreshing rate IP CAMERA supports 2-way audio. Click the “Chatting” check box. Then you can use microphone which connect to the PC to talk to server side, which is IP CAMERA side.

  • Page 14: Configuration

    V. Configuration Click to get into the administration page. Click to go back to the live video page. 14/36...

  • Page 15: System

    A. System System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name_This is the Camera name. This name will show on the IP Installer. Select language_There are English, Traditional Chinese, and Simplified Chinese to select.
  • Page 16 Anonymous User Login_ Yes_Allow anonymous login No_Need user name & password to access this IP camera Add user_ Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user. 16/36...
  • Page 17 iii_ System update_ To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Reboot system_re-start the IP camera Factory default_delete all the settings in this IP camera. Setting Management_User may download the current setting to PC, or upgrade from previous saved setting.

  • Page 18: Network

    B. Network IP Setting IP Camera supports DHCP and static IP. DHCP_Using DHCP, IP Camera will get all the network parameters automatically. Static IP_Please type in IP address, subnet mask, gateway, and DNS manually. Port Assignment: user may need to assign different port to avoid conflict when setting up IP assignment.
  • Page 19 PPPoE_ Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed_When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
  • Page 20 Enable this service Key-in the DynDNS server name, user name, and password. Set up the IP Schedule update refreshing rate. Click “Apply” If setting up IP schedule update too frequently, the IP may be blocked. In general, schedule update every day (1440 minutes) is recommended.
  • Page 21 Camddns service_ Please enable this service Key-in user name. IP Schedule update is default at 5 minutes Click “Apply”. DDNS Status Updating_Information update Idle_Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com_Register successfully. Update Failed, the name is already registered_The user name has already been used.
  • Page 22 iv_ Wireless Setting (Wireless Network Optional) Supports 802.11 b/g wireless connection. Notice_Wireless network and Ethernet network use the same IP, the user has to unplug Ethernet cable, if Ethernet cable is not unplug, wireless setting can not be executed. Status of Wireless Networks_ scan all wireless services.
  • Page 23 Authentication_There are Open System and Shared Keys, it is based on different encryptions. This has to be the same as the Router’s setting. Encryption_There are 64 bits and 128 bits. This is based on Key Type based on the Router’s setting. Key Type_There are HEX and ASCII.

  • Page 24: A/V Setting

    C. A/V Setting Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” to get clear video. For CCD Setting, IP CAMERA supports “Auto Electronic Shutter”, “Back Light Compensation”, and “Automatic Gain Control”. Video Setting User may select 2 streaming output simultaneously: Streaming 1 Setting: Basic mode and Advanced mode Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode (Max Video Frame Rate for both streaming combined is 25 FPS) Streaming 1 Basic Mode_...
  • Page 25 Resolution_ There are 4 resolutions to choose. NTSC – 720_480 / 720_576 4CIF – 704_480 / 704_576 – 352_240 / 352_288 QCIF – 176_120 / 176_144 Quality_ There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate_The video refreshing rate per second.
  • Page 26 Streaming 1 Advanced Mode_ Resolution_ There are 4 resolutions to choose. NTSC – 720_480 / 720_576 4CIF – 704_480 / 704_576 – 352_240 / 352_288 QCIF – 176_120 / 176_144 Bitrate Control Mode There are CBR_Constant Bit Rate_ and VBR_Variable Bit Rate_to use.
  • Page 27 Resolution_ There are 4 resolutions to choose. NTSC – 720_480 / 720_576 4CIF – 704_480 / 704_576 – 352_240 / 352_288 QCIF – 176_120 / 176_144 Quality_ There are 5 levels to adjust: Best/ High/ Standard/ Medium/ Low The higher the quality is, the bigger the file size is. Also not good for internet transmitting Video Frame Rate_The video refreshing rate per second.
  • Page 28 3GPP: 3GPP output name Streaming 2, 3GPP mode: 3GPP mode suggest setting: QCIF, lower than 128kbps, 5FPS, GOP= 1x FPS or 2x FPS, MPEG4 format Fix Resolution_ QCIF – 176_120 / 176_144 Bitrate Control Mode There are CBR_Constant Bit Rate_ and VBR_Variable Bit Rate_to use.
  • Page 29 The Audio will not be smooth when enable SD card recording function simultaneously. 29/36...

  • Page 30: Event List

    D. Event List IP CAMERA provides multiple event settings. Event Setting Motion Detection_ IP CAMERA allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 31 “Apply”. The interval of two video files on SD card is fixed with 30 seconds. I/O Setting IP CAMERA supports 2 input/ 2 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card.
  • Page 32 iv_ Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure. v_ SD card Please Insert SD card before use it. Make sure pushing SD card into the slot completely.

  • Page 33: Network Configuration

    VI. Network Configuration Configuration 1_ Internet Access_ADSL or Cable Modem IP address_One real IP or one dynamic IP Only IP CAMERA connects to the internet For fixed real IP, set up the IP into IP CAMERA. For dynamic IP, start PPPoE.
  • Page 34 iii_ Configuration 3_ Internet Access_ADSL or Cable Modem IP address_one real IP or one dynamic IP IP CAMERA and PC connect to the internet Device needed_IP sharing Use virtual IP, set up port forwarding in IP sharing. 34/36...

  • Page 35: Factory Default

    VII. Factory Default To recover the default IP address and password, please follow the following steps. Remove power, and press and hold the button in the back of IP CAMERA. Factory Default iii_ Power on the camera. Don’t release the button during the system booting. iv_ It will take around 30 seconds to boot the camera.
  • Page 36 36/36...
