Think ahead SR-2819 Operation

RF wireless LED remote controller

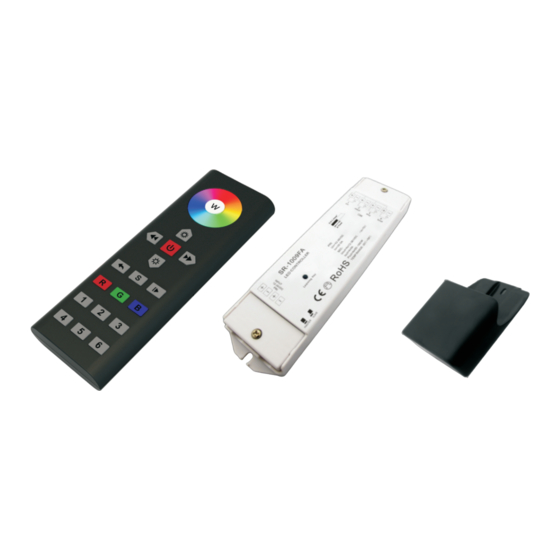

Model:SR-2819 with SR-1009Fxx
Six zones/areas
Press-button RGBW controller
Receivers work with WIFI-RF convertor to be controlled by smart phone

Product introduction

SR-2819 RGBW remote controller has 6 different zones. It can get Red/ Green/ Blue/ White color directly. The
remote controller can save up to 6 colors or 6 modes into corresponding buttons (1-6 positions) for each zone.
You can choose any color through color wheel. you can set the system as RGB 3-channeloutput, or RGBW 4-
channel output

Parameter

Remote
Operation Voltage
Part No.
SR-2819 3.6VDC
Receiver
Part No. Iuput Voltage
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC

Product Size

140.0
Operation DIMENSIONS
Frequency ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz 48x140x16
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at

Brief introduction of buttons

ON/OFF of all zones
Speed down under dynamic mode
Return previous status button
Save button: save up to 6 colors
or modes into 6 positions
(6-zone buttons)
6 zones: each zone can save
6 color or modes

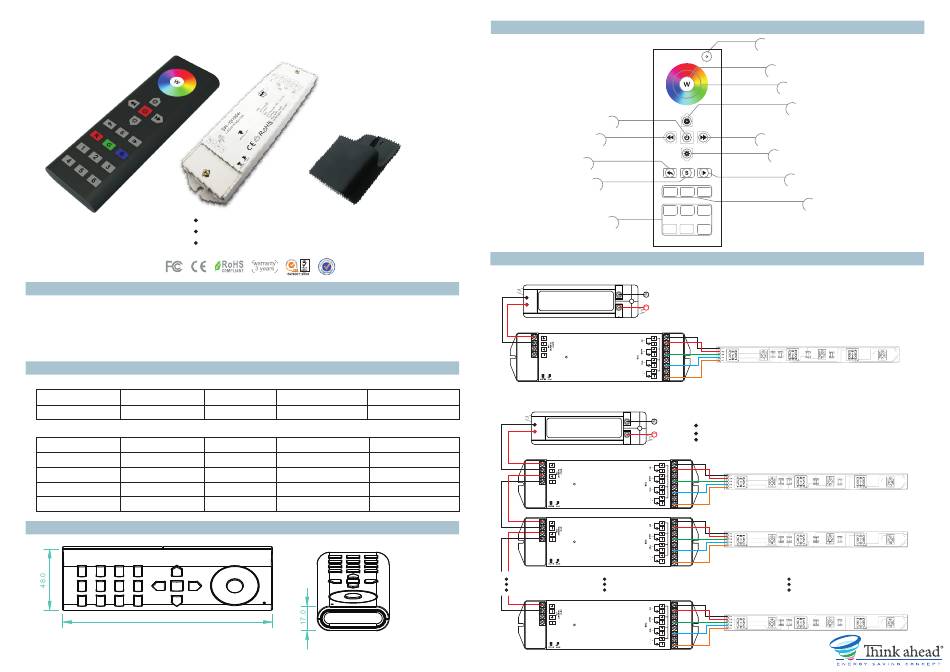

Wiring diagram

1)Receiver Connection Diagram for Single Unit
Power Supply
12-36VDC
Learning Key
Remarks 2) Receiver Connection Diagram for Multiple Units
batteries
Power Supply
12-36VDC
Remarks
Learning Key
Learning Key
Learning Key
R G B
1 2 3
4 5 6
110V-230VAC
SR-1009FA
LED CONTROLLER
Note:
One receiver can work with 1-8pcs SR-2819
110V-230VAC
One SR-2819 control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
Indicator: indicate the state of
remote control
White channel: the 4th channel
Touch color wheel
Brightness: dim up
Speed up under dynamic mode
Brightness: dim down
Pause/Run button: 10 modes
built-in
R/G/B channels
