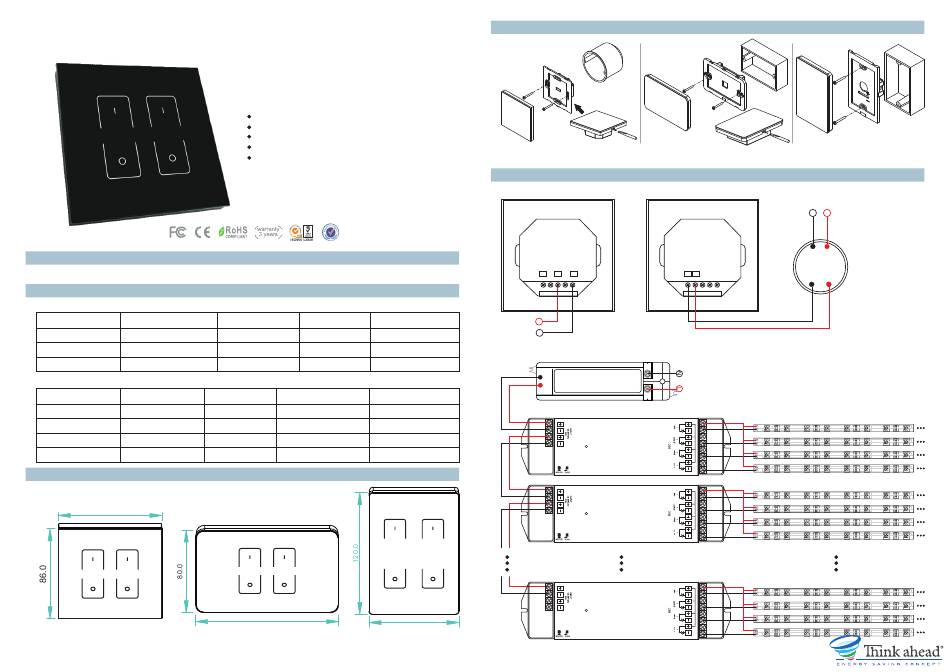

Think ahead SR-2833T1 Manual

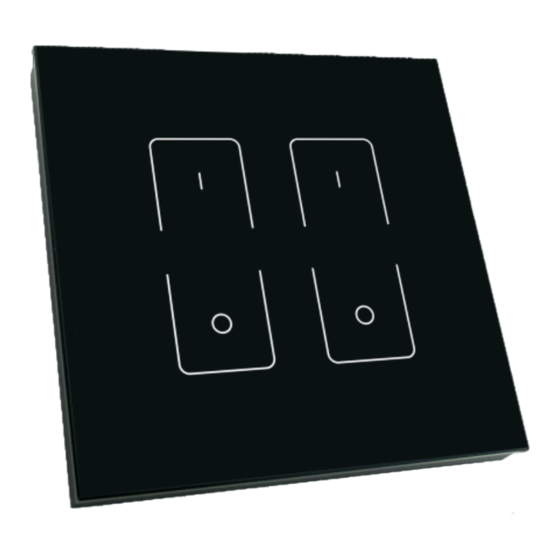

2 zone RF wireless wall mounted touch dimmer remote
Feature
This is a RF Wireless full touch wall mounted dimmer Remote 2 zones
Parameter
Remote
Operation Voltage
Part No.
SR-2833T1 12-24VDC/110-240VAC
SR-2833T1(IT) 12-24VDC/110-240VAC
SR-2833T1(US) 12-24VDC/110-240VAC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Product Size
86.0
SR- 2833 T1
SR-2833T1
2 zone
Touch sensitive
Glass interface
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as wel l.
Output
RF Frequency Control distance
RF Wireless Signal 434MHz/868MHz About 30m
RF Wireless Signal 434MHz/868MHz About 30m
RF Wireless Signal 434MHz/868MHz About 30m
Current Output Remarks
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W Constant current
120.0
SR- 2833 T1(IT) SR- 2833
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Installation
SR- 2833 T1
Wiring diagram
1)Sender Connection
SR-2833T1-AC
L N
L
110V-230VAC
N
2)Receiver Connection Diagram
Power Supply
12-36VDC
Learning Key
Learning Key
Learning Key
75.0
T1(US)
SR- 2833 T1(IT)
Diagram
SR-2833T1-DC
GND Vin
110V-230VAC
SR-1009FA
LED CONTROLLER
4x5A
SR-1009FA
LED CONTROLLER
4x5A
SR-1009FA
LED CONTROLLER
4x5A
SR- 2833 T1(US)
110V-230VAC
N L
Power Supply
12-24VDC
