Two zones dim remote
Feature

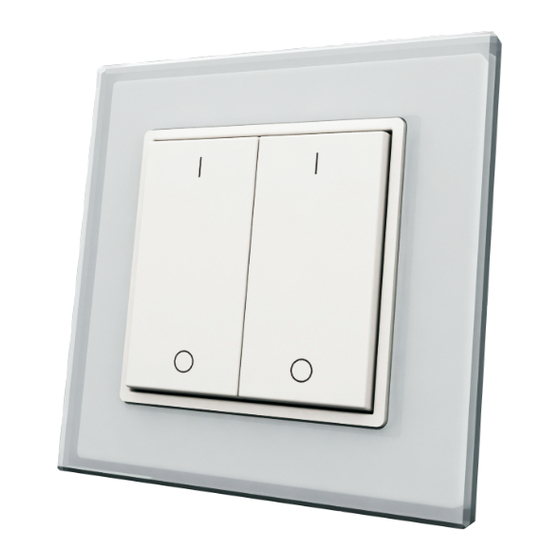

This is a RF Wireless Push Remote,can be wall mounted, or sticked on wall easily by 3M glue.
Parameter
Remote
Part No.
Operation Voltage
SR-2801K2
3VDC Cr2430 battery 434MHz/868MHz
Receiver
Iuput Voltage
Part No.
SR-2501N
12-36VDC
SR-2501NEA
12-36VDC
SR-2502N
12-36VDC
SR-2503N
12-36VDC
SR-2501NS
12-36VDC
SR-2502NS
12-36VDC
SR-2503NS
12-36VDC
Product Size
86.0
SR-2801K2
Operation
Remarks
Frequency
RF Wireless
Current
Output
Remarks
4x5A
Constant voltage
4x(60-180)W
4x8A
4x(96-288)W
Constant voltage
4x350mA
Constant current
4x(4.2-12.6)W
4x700mA
4x(8.4-25.2)W
Constant current
1x8A
1x(96-288)W
Constant voltage
1x350mA
Constant current
1x(4.2-12.6)W
1x700mA
1x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Installation
Wiring diagram
Power Supply
12-36VDC
SR-2501N
RF Easy Dimmer
Learning Key
GND
SR-2501N
RF Easy Dimmer
Learning Key
GND
SR-2501N
RF Easy Dimmer
Learning Key
GND
110V-230VAC
