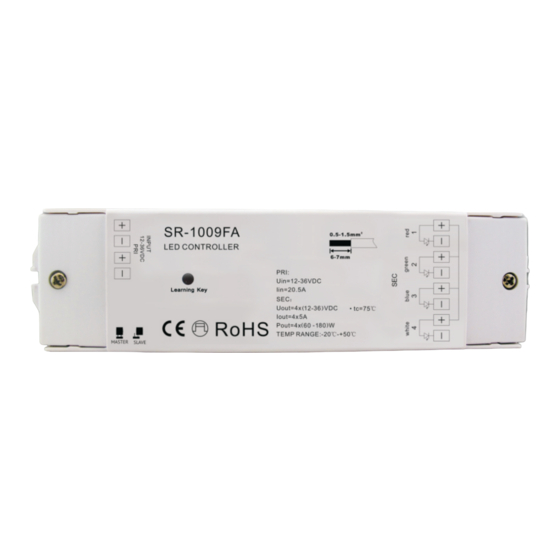

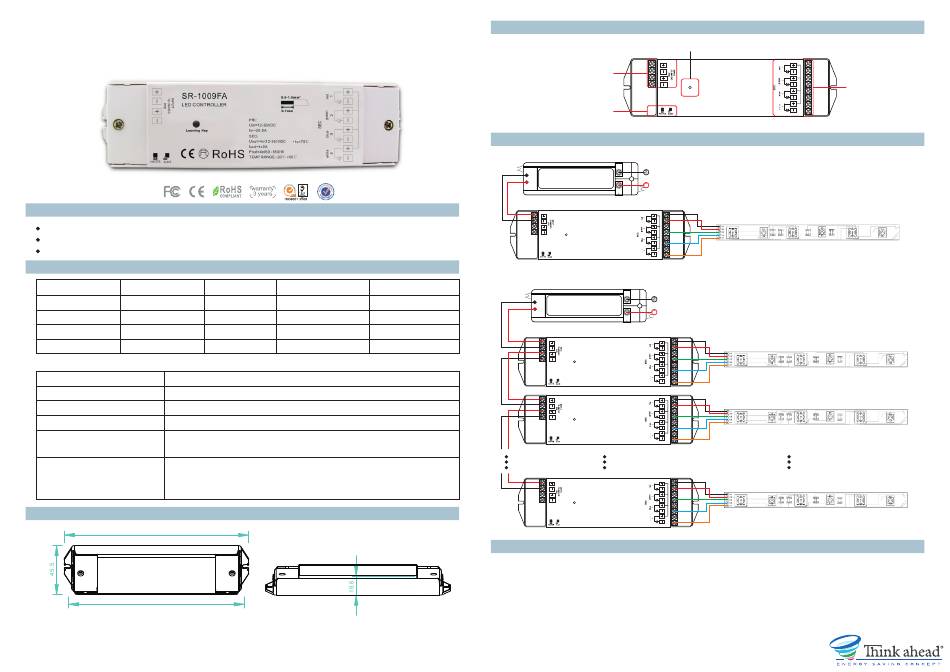

Think ahead SR-1009F Series Quick Start Manual

Receiver for RGBW Remote & Wifi transmitter
Feature
Work with different sender
Work with WIFI transmitter
Control RGBW, RGB, CC-CW, Single color LED lighting.
Parameter
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Suitable sender
RGB+W remote
CCT remote
Dimmer remote
RGB+W wall mounted panel
SR-2822/ SR-2822
CCT wall mounted panel
SR-2825(US)/SR-2830B/ SR-2830
SR-2833k1, SR-2833k2, SR-2833T1/ SR-2833T1
Dimmer wall mounted panel SR-2833T2/SR-2833T2
SR-2825A
Product Size
178.9
170.4
Model: SR-1009FX
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA 4x(4.2-12.6)W Constant current
4x700mA 4x(8.4-25.2)W
Constant current
SR-2818, SR-2819, SR-2819S, SR-2838
SR-2819CCT, SR-2819S-CCT, SR-2838-CTT
SR-2819S-DIM, SR-2838-DIM, SR-2833
SR-2820/ SR-2820(IT)/ SR-2820(US), SR-2835RGB
(IT) / SR-2822(US), SR-2825B/ SR-2825
(IT) / SR-2830(US), SR-2835DIM
(IT) / SR-2833T1(US),
(IT) / SR-233T2(US), SR-2835DIM, SR-2825A
(IT) / SR-2825A(US), SR-2830A/ SR-2830A (IT) / SR-2830A(US)
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Brief introduction of buttons
12-36VDC power input
or connect next DALI dimmer
Short circuit for master.
Open circuit for slave.
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Power Supply
12-36VDC
Learning Key
2) Receiver Connection Diagram for Multiple Units
Remarks
Power Supply
12-36VDC
Learning Key
Learning Key
(IT) /
Learning Key
Operation
Learning (matching)
a. Do wiring according to connection diagram
b. Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiver.
d. Touch any zone button on remote control.
e. Then touch color wheel.
f. Connected LED light will blink to confirm zone designation.
g. Press at learning button on receiver over 5 seconds until LED light flash, then delete the learned ID.
Learning to sender
SR-1009FA
Learning Key LED CONTROLLER
110V-230VAC
SR-1009FA
LED CONTROLLER
110V-230VAC
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
For LED lighting
(RGB/CCT/Single color
LED light)
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
RGB/W or CDW LED strip
