SEKURYX CK4-P208 Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Format DisplayPort
Max. Pixel Clock 248 MHz
Input Interface (16) DisplayPort 20-pin
Output Interface (2) DisplayPort 20-pin
Up to 4K
Resolution
(3840x2160@30Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Data Rate 1.65 Gbps
USB
Input Interface (8) USB Type B
(2) USB 1.1 Type A for KM
Output Interface
Devices
USB 1.1 and USB 2.0
Emulation
Compatible
AUDIO
Audio Input (8) 3.5mm stereo audio
Audio Output (1) 3.5mm stereo audio
CONTROL
Front Panel Front panel SELECT buttons
OTHER
External 100-240 VAC/
Power
12VDC3A @ 36W
Dimensions 17.0" W x 2.7" H x 8.69" D
Weight 6.9 lbs
NIAP PP 4.0, UL, CE, ROHS
Approvals
Compliant
Operating Temp. +32 to +104°F (0 to +40°C)
Storage Temp. -4 to 140°F (-20 to +60°C)
Up to 80% (no
Humidity
condensation)
WHAT'S IN THE BOX
VIDEO Q-TY DESCRIPTION
Secure 8-Port, DH DP KVM
CK4-P208 1
Switch
12V DC, 3A power adapter
12VDC3A 1 with center-pin positive
polarity.
1 Quick Start Guide

NOTICE

The information contained in this document is
subject to change without notice. SEKURYX makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SEKURYX will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material. No part of this document may
be photocopied, reproduced, or translated into
another language without prior written consent from
SEKURYX, Inc.
DESIGNED
AND MADE
IN THE USA
(877) SEK-URYX
info@sekuryx.com

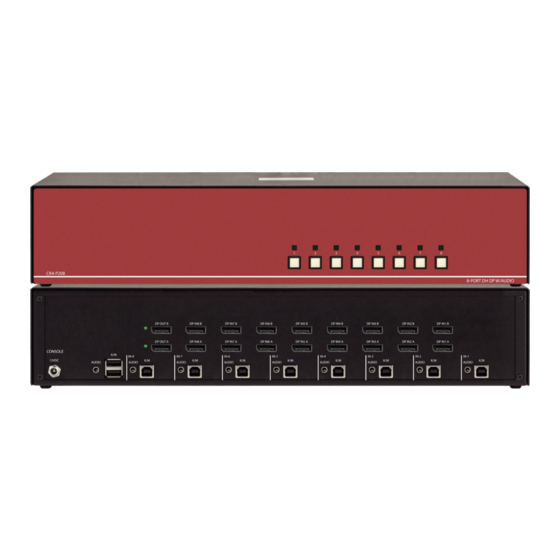

CK4-P208
Secure 8-Port, DH DP KVM
Switch
QUICK START GUIDE
Full manual link is
https://www.sekuryx.com/documents-niap4/
