Revision: 1.0
USER MANUAL

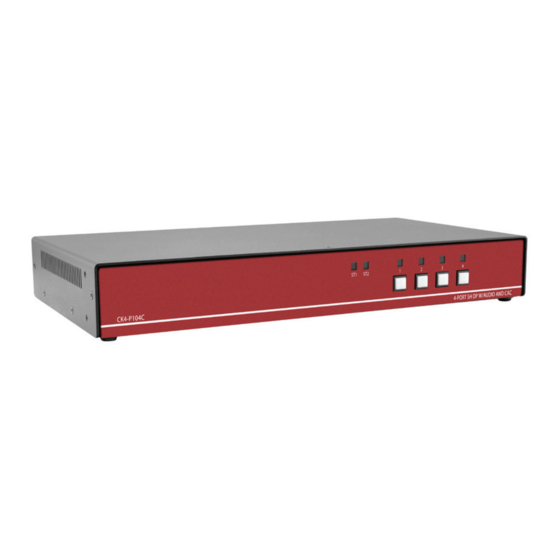

Secure DP KVM Switch with CAC Port
CK4-P102
CK4-P102C
CK4-P202
CK4-P202C
CK4-P104
CK4-P104C
CK4-P204
CK4-P204C
CK4-P404C
CK4-P108
CK4-P108C
CK4-P208
CK4-P208C
and 4K Ultra-HD Support
2-Port SH Secure Pro DP KVM w/audio, PP 4.0
2-Port SH Secure Pro DP KVM w/audio and CAC, PP 4.0
2-Port DH Secure Pro DP KVM w/audio, PP 4.0
2-Port DH Secure Pro DP KVM w/audio and CAC, PP 4.0
4-Port SH Secure Pro DP KVM w/audio, PP 4.0
4-Port SH Secure Pro DP KVM w/audio and CAC, PP 4.0
4-Port DH Secure Pro DP KVM w/audio, PP 4.0
4-Port DH Secure Pro DP KVM w/audio and CAC, PP 4.0
4-Port QH Secure Pro DP KVM w/audio and CAC, PP 4.0
8-Port SH Secure Pro DP KVM w/audio, PP 4.0
8-Port SH Secure Pro DP KVM w/audio and CAC, PP 4.0
8-Port DH Secure Pro DP KVM w/audio, PP 4.0
8-Port DH Secure Pro DP KVM w/audio and CAC, PP 4.0
Designed and Manufactured in the USA
Release Date: July 21, 2021
Advertisement
Table of Contents
Related Manuals for SEKURYX CK4-P102
Summary of Contents for SEKURYX CK4-P102

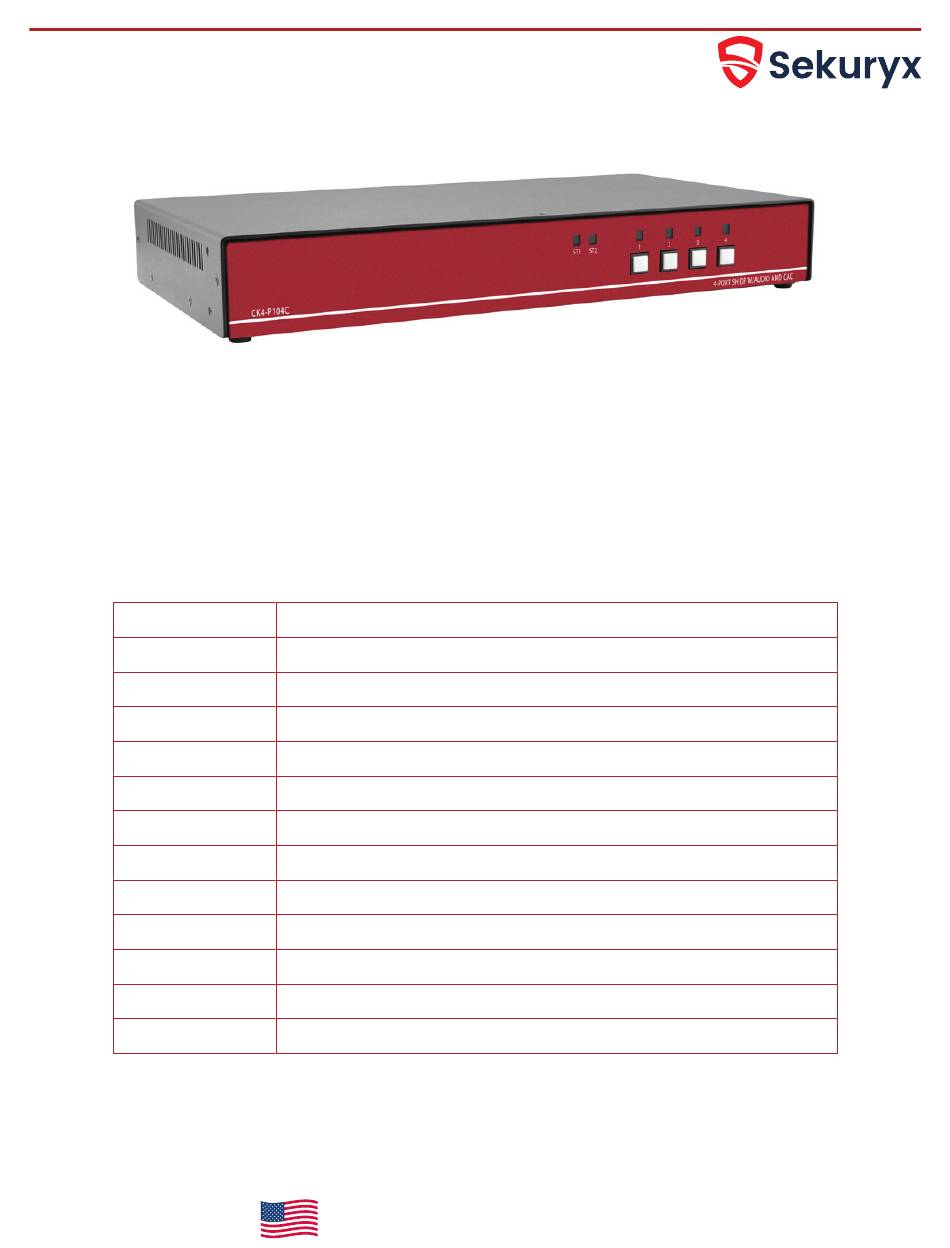

- Page 1 Release Date: July 21, 2021 USER MANUAL Secure DP KVM Switch with CAC Port and 4K Ultra-HD Support CK4-P102 2-Port SH Secure Pro DP KVM w/audio, PP 4.0 CK4-P102C 2-Port SH Secure Pro DP KVM w/audio and CAC, PP 4.0 CK4-P202 2-Port DH Secure Pro DP KVM w/audio, PP 4.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS_____________________________________________________ WHAT’S IN THE BOX?____________________________________________________________ SECURITY FEATURES____________________________________________________________ FRONT AND REAR_______________________________________________________________ INSTALLATION__________________________________________________________________ CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER__________________ CAC PORT CONFIGURATION______________________________________________________ AUDITING: Dumping the Event Log via User Menu Options________________________________ RESET: Restore Factory Default_____________________________________________________ LED’s BEHAVIOR________________________________________________________________ SYSTEM OPERATION____________________________________________________________ TROUBLESHOOTING____________________________________________________________ TECHNICAL SUPPORT___________________________________________________________... -
Page 3: Technical Specifications
CK4-P204 / CK4-P204C / CK4-P108 / CK4-P108C (8) DisplayPort 20-pin (female) CK4-P404C / CK4-P208 / CK4-P208C (16) DisplayPort 20-pin (female) CK4-P102 / CK4-P102C / CK4-P104 / CK4-P104C / CK4- (1) DisplayPort 20-pin (female) P108 / CK4-P108C User Console CK4-P202 / CK4-P202C / CK4-P204 / CK4-P204C /... -
Page 4: What's In The Box
WHAT’S IN THE BOX? PART NO. Q-TY DESCRIPTION CK4-Px0x / Secure Pro DP KVM w/audio, PP 4.0 / CK4-Px0xC Secure Pro DP KVM w/audio with CAC, PP 4.0 PS12VDC2A / 12V DC, 2A (minimum) power adapter with center-pin positive polarity. PS12VDC3A Quad head models require a 12V DC 3A (minimum) power adapter with center-pin positive polarity. -
Page 5: Installation
INSTALLATION SYSTEM REQUIREMENTS 1. SEKURYX Secure PSS is compatible with standard personal/portable computers, servers or thin- clients, running operating systems such as Windows or Linux. 2. The peripheral devices that are supported by the KVM are listed in the following table:... - Page 6 INSTALLATION (Continued) SINGLE-HEAD UNITS: 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DisplayPort cable to connect the DisplayPort output port from each computer to the corresponding DP IN ports of the unit. 3.
- Page 7 INSTALLATION (Continued) MULTI-HEAD UNITS: 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use DisplayPort cables to connect the DisplayPort output ports of each computer to the corresponding DisplayPort IN ports of the unit. For example, if using CK4-P404C, the four DisplayPort ports of one computer must all be connected to one channel.
- Page 8 INSTALLATION (Continued) — DP IN — USB K/M IN — USB CAC IN — AUDIO IN — DP OUT — USB K/M OUT — USB CAC OUT — AUDIO OUT — DP IN — USB K/M IN — USB CAC IN —...
- Page 9 INSTALLATION (Continued) EDID LEARN: The KVM is designed to learn the connected monitor’s EDID upon power up. In the event of connecting a new monitor to the KVM, a power recycle is required. The KVM will indicate to the user the EDID learn process by flashing the front panel’s LEDs. Port one green and push button blue LEDs will both begin to flash for about 10 seconds.
-
Page 10: Cac Installation: Common Access Card, Smart Card Reader
CAC (COMMON ACCESS CARD, SMART CARD READER) INSTALLATION The following steps are intended for the system administrator or IT manager only. If you have the optional CAC ports there will be 2 ports on a 2 host ports KVM, 4 ports on a 4 host ports KVM, 8 ports on a 8 host ports KVM and 16 ports on a 16 host ports KVM. -
Page 11: Auditing: Dumping The Event Log Via User Menu Options
The Event Log is a detailed report of critical activities stored in the KVM memory. A comprehensive feature list and guidance for Administration and Security Management Tools can be found in the Administrator’s Guide available for download from: http://sekuryx.com/documentation/. To view or dump the Event Log: 1. -
Page 12: Led's Behavior
Monitor is not connected permanently disabled. Please Monitor is connected contact SEKURYX technical support at Flashing EDID problem – Learn EDID to fix the problem support@sekuryx.com. User Console Interface – CAC LED: If all Front Panel LED’s are on and not... -
Page 13: System Operation
Check if the USB cables connecting the unit and the computers are properly connected. • Make sure the CAC port is enabled. TECHNICAL SUPPORT For product inquiries, warranty questions, or technical questions, please contact info@sekuryx.com. Secure DP KVM Switch with Dedicated CAC Port and 4K Ultra-HD Support... -
Page 14: Limited Warranty Statement
Customer is responsible for maintaining proof of date of purchase. SEKURYX limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. - Page 15 NOTICE The information contained in this document is subject to change without notice. SEKURYX makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SEKURYX will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
