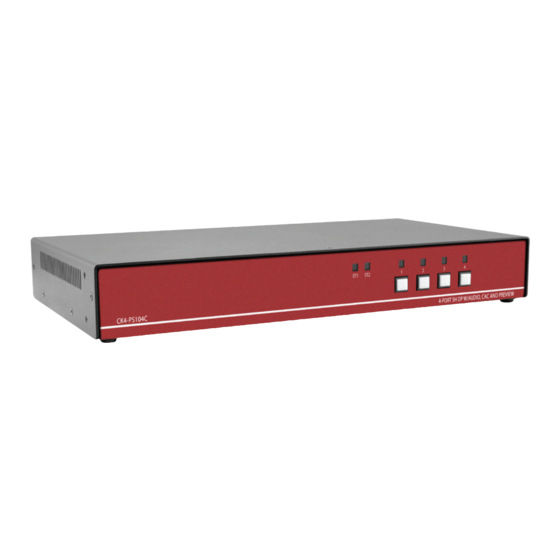

- Page 1 Release Date: July 21, 2021 USER MANUAL Secure 4 Port Single Head DP KVM Switch with CAC Port, Preview Screen and 4K Ultra-HD Support CK4-PS104C 4-Port SH Secure Pro DP KVM w/audio, preview screen and CAC, PP 4.0 Designed and Manufactured in the USA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS_____________________________________________________ WHAT’S IN THE BOX?____________________________________________________________ SECURITY FEATURES____________________________________________________________ FRONT AND REAR_______________________________________________________________ INSTALLATION__________________________________________________________________ CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER__________________ CAC PORT CONFIGURATION______________________________________________________ AUDITING: Dumping the Event Log via User Menu Options________________________________ RESET: Restore Factory Default_____________________________________________________ LED’s BEHAVIOR________________________________________________________________ SYSTEM OPERATION____________________________________________________________ TROUBLESHOOTING____________________________________________________________ TECHNICAL SUPPORT___________________________________________________________... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO Format DisplayPort1.2 Host Interface (4) DisplayPort 20-pin User Console (1) DisplayPort 20-pin; Interface (1) DisplayPort 20-pin (preview screen) Max Resolution 3840 x 2160 @ 30 Hz 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft. -
Page 4: What's In The Box
Check if any of the front panel port selection buttons are jammed. In this case, release the jammed button and recycle the power. CK4-PS104C Rear Panel Secure DP KVM Switch with Dedicated CAC Port, Preview Screen and 4K Ultra-HD Support... -
Page 5: Installation
INSTALLATION SYSTEM REQUIREMENTS 1. SEKURYX Secure PSS is compatible with standard personal/portable computers, servers or thin- clients, running operating systems such as Windows or Linux. 2. The peripheral devices that are supported by the KVM are listed in the following table:... - Page 6 INSTALLATION (Continued) 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DisplayPort cable to connect the DisplayPort output port from each computer to the corresponding DP IN ports of the unit. 3.
- Page 7 INSTALLATION (Continued) EDID LEARN: The KVM is designed to learn the connected monitor’s EDID upon power up. In the event of connecting a new monitor to the KVM, a power recycle is required. The KVM will indicate to the user the EDID learn process by flashing the front panel’s LEDs. Port one green and push button blue LEDs will both begin to flash for about 10 seconds.
-
Page 8: Cac Port Configuration
CAC (COMMON ACCESS CARD, SMART CARD READER) INSTALLATION The following steps are intended for the system administrator or IT manager only. If you have the optional CAC ports there will be 4 ports on a 4 host ports KVM. CAC connection to the computer requires a USB cable connection separate from the keyboard and mouse. -
Page 9: Auditing: Dumping The Event Log Via User Menu Options
The Event Log is a detailed report of critical activities stored in the KVM memory. A comprehensive feature list and guidance for Administration and Security Management Tools can be found in the Administrator’s Guide available for download from: http://sekuryx.com/documentation/. To view or dump the Event Log: 1. -
Page 10: Led's Behavior
Monitor is not connected permanently disabled. Please Monitor is connected contact SEKURYX technical support at Flashing EDID problem – Learn EDID to fix the problem support@sekuryx.com. User Console Interface – CAC LED: If all Front Panel LED’s are on and not... - Page 11 PREVIEW SELECTION To switch display modes, press the desired preview mode button on the front control panel. The active screens on the preview display will show the input number being displayed in each section. Similar to the images below, the OSD will display a small number in the top right corner of each window to indicate the active input computer being viewed for each viewing mode.
-
Page 12: System Operation
Check if the USB cables connecting the unit and the computers are properly connected. • Make sure the CAC port is enabled. TECHNICAL SUPPORT For product inquiries, warranty questions, or technical questions, please contact info@sekuryx.com. Secure DP KVM Switch with Dedicated CAC Port, Preview Screen and 4K Ultra-HD Support... - Page 13 Customer is responsible for maintaining proof of date of purchase. SEKURYX limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a.
- Page 14 NOTICE The information contained in this document is subject to change without notice. SEKURYX makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SEKURYX will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
