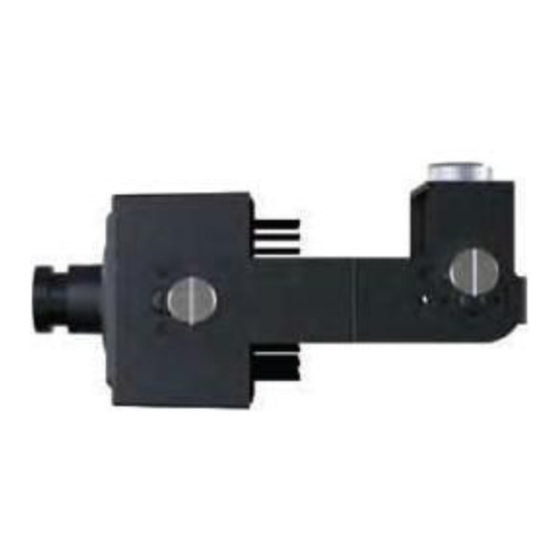

Weldex WDP-17S05MF Quick Installation Manual

WDP-17S05MF Quick Installation Guide
Camera Cable Connections
Speaker
12V/24VDC
Plug
Power Supply
Blue wire Sensor input
Wire
Green wire Alarm output
Black wire Ground
VLC Media Player 2.0.6[or Higher version] Setup
1. Install the 'vlc-2.0.6-win32-weldex-certification.
exe' executable file.
IP Scan Software Setup
Change the Camera's Network settings
③ ⑤ ⑩
③ Click Search on the IPScan window.
④ Click the row of the device you wish to configure.
⑤ Click the IP Setup icon.
⑥ Enter the admin's password. default password is [admin]
For more information, refer to the WDP-17S05MF User Operation Manual.
Rev. A
Phone Jack
DC Jack
Wire
2. From the [Select the type of install] dropdown
menu, choose [custom].
3. Confirm the installation path and
click[Next] to start copying files to the PC.
① Install the latest 'IPScan software' executable file.
② Run the IP Scan shortcut icon on main screen.
⑦ If you want to change IP address, enter a valid IP address, Subnet mask, and Gateway.
⑧ You can select the IP service type such as DHCP, Static IP.
⑨ Click Apply icon and wait for 30 seconds.
⑩ Click Web Browser icon.
■ The WDP-17S05MF is also POE(Power Over Ethemet)
compatible.
4. Uncheck the [Run VLC media player 2.0.6] checkbox
5. Click on the [Finish] button to complete the installation.
⑥
Milestone
Laptop IP Router
VMS
Network
NVR Desktop
⑧
⑨
