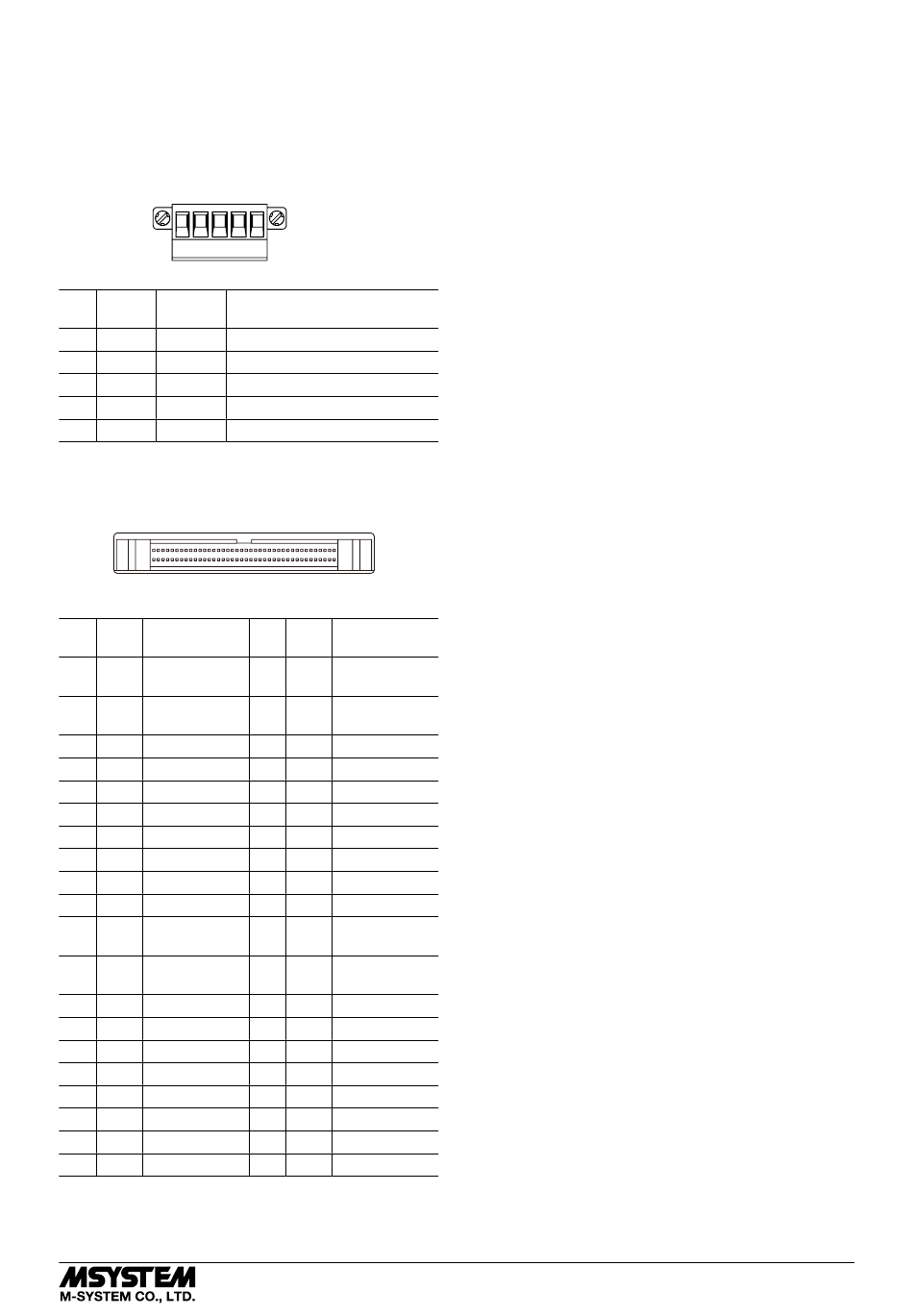

■ TERMINAL ASSIGNMENT

• Communication/power supply Terminal Assignment
Unit side connector: MSTB2,5/5-GF-5,08AU (Phoenix Contact)
Cable side connector: MSTB2,5/5-STF-5,08AU (Phoenix Contact)
Applicable wire size: 0.2 - 2.5mm
Stripped length: 7mm
1 2 3
PIN
COLOR ID
NO.
1 Red V+
2 White CAN_H
3 – Drain
4 Blue CAN_L
5 Black V-
• Output Terminal Assignment
Applicable connector: XG4M-4030 (Omron)
39
40
PIN
ID FUNCTION
No.
1 VS2+ Exc. supply +
(output)
3 VS2- Exc. supply -
(output)
5 Y15 Output 15
7 Y14 Output 14
9 Y13 Output 13
11 Y12 Output 12
13 Y11 Output 11
15 Y10 Output 10
17 Y9 Output 9
19 Y8 Output 8
21 VS1+ Exc. supply +
(input)
23 VS1- Exc. supply -
(input)
25 X15 Input 15
27 X14 Input 14
29 X13 Input 13
31 X12 Input 12
33 X11 Input 11
35 X10 Input 10
37 X9 Input 9
39 X8 Input 8
2
4 5
FUNCTION
Communication/power supply (+)
Network data High
Shield
Network data Low
Communication/power supply (-)
1
2
PIN
ID FUNCTION
No.
2 VS2+ Exc. supply +
(output)
4 VS2- Exc. supply -
(output)
6 Y7 Output 7
8 Y6 Output 6
10 Y5 Output 5
12 Y4 Output 4
14 Y3 Output 3
16 Y2 Output 2
18 Y1 Output 1
20 Y0 Output 0
22 VS1+ Exc. supply +
(input)
24 VS1- Exc. supply -
(input)
26 X7 Input 7
28 X6 Input 6
30 X5 Input 5
32 X4 Input 4
34 X3 Input 3
36 X2 Input 2
38 X1 Input 1
40 X0 Input 0
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
R7F4HD-DAC32C
EM-8006-E P. 3 / 9
