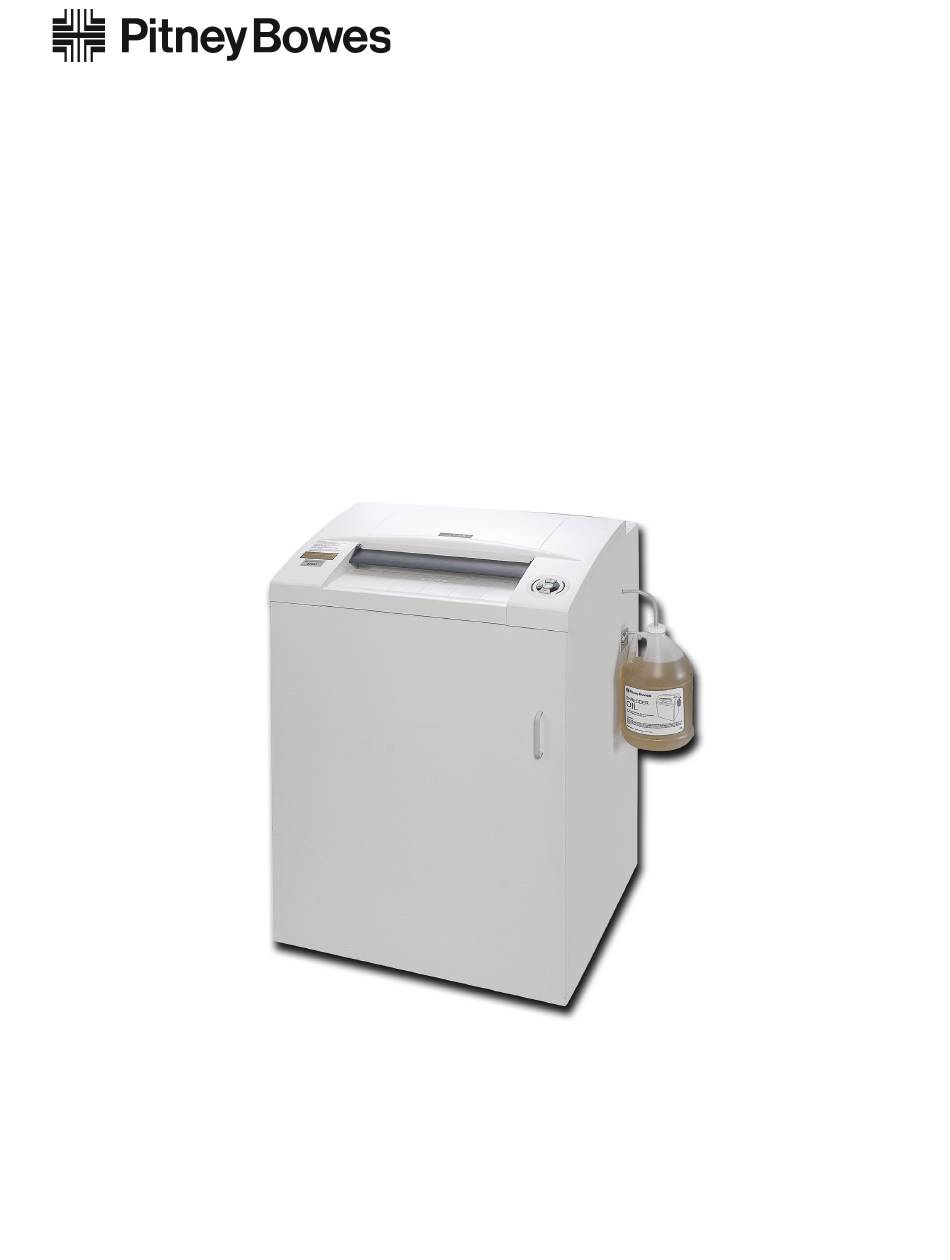

- Page 1 Cross-Cut Shredder SH75 Operator Guide SV62927 Rev. C...
- Page 2 This page intentionally left blank.
- Page 3 All rights reserved. This book may not be reproduced in whole or in part in any fashion or stored in a retrieval system of any type or transmitted by any means, electronically or mechanically, without the express written permission of Pitney Bowes.
-
Page 4: Table Of Contents
Technical Support ......................7 Supplies ..........................7 Pitney Bowes Supply Line ....................7 SH75 Cross-Cut Shredder Overview ..................8 SH75 Specifications and Technical Data ................9 Parts of the Machine ......................10 Operation ..........................13 Switching the Machine On ....................13 Feeding of Single Sheets .................... -
Page 5: Safety Information
SH75 Cross-Cut Shredder | 5 Safety Information Familiarize yourself with proper procedures and methods before you install, operate or repair the system to avoid personal injury or damage to the equipment. Important Safety Notes Before operating, please read the Operating Manual! WARNING! The machine may not be operated by more than one person at any given time. -
Page 6: System Power Notes
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult Pitney Bowes Service or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 7: Service And Support
SH75 Cross-Cut Shredder | 7 Service and Support Technical Support This product is serviceable. Contact the appropriate service number for your country. Availability Monday through Friday, 8:00 AM - 8:00 PM ET Country Service Number Website Address United States 1-800-522-0020 www.pb.com... -
Page 8: Sh75 Cross-Cut Shredder Overview
SH75 Cross-Cut Shredder Overview The SH75 is a cross-cut shredder with security level 3. It is a high volume and medium security shredder that serves the shredding needs of organizations worldwide. It is a multimedia shredder which can not only shred paper but also CDs, floppies, paper clips and staples. -
Page 9: Sh75 Specifications And Technical Data
SH75 Cross-Cut Shredder | 9 SH75 Specifications and Technical Data Shredded Piece Size 0.16” x 1.81” (paper) Cutting Width 0.16x1.81 in. (cross-cut) Cutting Speed 3.94 in./sec. Cutting Capacity Capacity up to 40 sheets* Noise Level 52 db(A) Use Time Up to 5 hours of shredding per day Machine Dimensions Width: 25.98”, Depth: 22.05”, Height: 41.34”... -
Page 10: Parts Of The Machine
10 | SH75 Cross-Cut Shredder Parts of the Machine Figure 2 Light Barrier Figure 1 Parts of the Machine P.I.P.S ™ Personal Injury Protection Shield ™ SV62927 Rev. C | Operator Guide... - Page 11 SH75 Cross-Cut Shredder | 11 Icon Item Part Description Function button This button has three functions: Ready/Off/Stop a. Ready The machine changes to “Ready” if you press this button briefly. At the same time the integral LED display comes on.
- Page 12 12 | SH75 Cross-Cut Shredder Icon Item Part Description Control display (Oil The oiler is internal and self-contained. All you have cutters) to do is change the jug when it is empty. On the initial installation there is a plug in the oiler hose that is inserted into the oil jug.
-
Page 13: Operation
SH75 Cross-Cut Shredder | 13 Operation Switching the Machine On Proceed as follows to switch the machine to “Ready”: • Press the ON/Sleep/Stop button to turn on the machine. ◦ If the button lights up, the machine is ready to be fed material. -
Page 14: Emptying The Receptacle
WARNING: Never feed the shredder with a quantity of material exceeding the maximum indicated. Refer to ”SH75 Specifications and Technical Data” on page 9! Should the machine become overloaded, follow the instructions under “Material Jam in the Machine” on page 17. -
Page 15: Maintenance
• wipe the top and bottom photocells with a small brush or cotton swab Lubricating the Cutter Blades Your Pitney Bowes SH75 is equipped with an automatic oiling mechanism. When first setting up the machine and after any extended period of non use, allow the machine to run for a period of time to allow the tubing to fill with oil and the wick inside the machine to become saturated. -
Page 16: Cleaning The Photocells
16 | SH75 Cross-Cut Shredder Cleaning the Photocells If paper particles should come to rest in the inlet guide (“Figure 4 Cleaning the Photocells”), for example after a paper jam, it is possible that the machine will not turn off, due to the broken light barrier. -
Page 17: Malfunctions
• Is there a material jam in the machine? Refer to “Material Jam” on page 18. • Is the motor overloaded? Refer to “Motor Overload” on page 18. If none of these test points apply, please contact Pitney Bowes Service. Operator Guide | SV62927 Rev. C... -
Page 18: Troubleshooting
□ Is the collection bin properly pushed in? □ Is the collection bin full? □ Is there a material jam in the machine? □ Is there a motor overload condition? If you can’t resolve the issue, contact Pitney Bowes Service. SV62927 Rev. C | Operator Guide... - Page 19 This page intentionally left blank.
- Page 20 1 Elmcroft Road Stamford, Connecticut 06926-0700 www.pb.com SV62927 Rev. C June 2013 © Pitney Bowes Inc. All Rights Reserved Printed in the USA...
