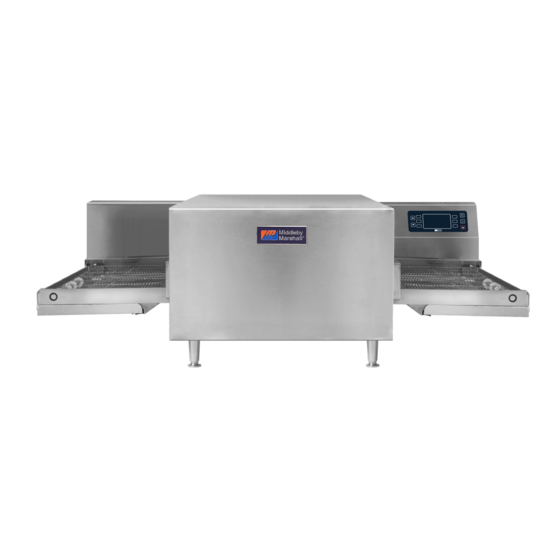

- Page 1 PS2020 PS2620 Series Electric Ovens: English OWNER’S OPERATING & INSTALLATION MANUAL Combinations: PS2020 Series Electric Ovens • Single Oven PS2620 Series Electric Ovens • Double-Stacked Oven © Middleby Marshall Inc. All rights reserved.
- Page 2 Middleby Marshall suggests a service contract with a Middleby Authorized Service Agent (ASA). Please carefully read this manual and retain it for future reference.
- Page 3 For further information, call 877-34-OVENS 877-346-8367...
- Page 4 This page intentionally left blank...
-
Page 5: Table Of Contents
Table of Contents Safety Information Important Safety Information - Please Read First General Safety Information Reducing Fire Risk Preventing Oven Damage Grounding Instructions Power Cord Replacement Specifications and Installation PS2020 Dimensions PS2020 Electrical Specifications PS2620 Dimensions PS2620 Electrical Specifications Packaging Certifications Construction Installation Instructions... - Page 6 Adjusting the Top and Bottom Air Oven Modes Config Mode Smart Card Screen (Loading a Menu) Accessing the Fault Count Screen Accessing the Setup Mode Setup Mode Changing the Display Temperature Changing the Belt Direction Edit Options Screen Changing the Speaker Volume Info Screen Updating the Firmware Troubleshooting...
- Page 7 Important Safety Information – Please Read First Improper installation, adjustment, alteration, service, or maintenance of this equipment can cause property damage, injury, or death. Thoroughly read the installation, operating, and maintenance instructions before installing or servicing this equipment. Strictly adhere to the following safety information to reduce the risk of: Damage to the oven Damage to property near the oven...
-
Page 8: Safety Information
SAFETY INFORMATION Reducing Fire Risk If materials inside the oven ignite or if smoke is observed, 1. Turn off the oven. 2. Disconnect the power cord or shut off power at the fuse/circuit breaker panel. Carefully attend the oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. -
Page 9: Ps2020 Dimensions
PS2020 Dimensions Exterior Height 13.0” (330 mm) --with legs 17.0” (432 mm) Width 48.0” (1219 mm) 8.5" 8.5" (216 mm) (216 mm) Depth 35.8” (909 mm) 35.8"(909 mm) 35.8"(909 mm) Conveyor Figure 1: PS2020 Oven Dimensions – Side Length 48.0” (1219 mm) Width 20.0”... -
Page 10: Ps2620 Dimensions
SPECIFICATION AND INSTALLATION PS2620 Dimensions Exterior Height 13.0” (330 mm) --with legs 17.0” (432 mm) Width 48.0” (1219 mm) 1061.3 215.0 Depth 35.8” (909 mm) 41.8 Figure 1: PS2620 Oven Dimensions – Side Conveyor Length 48.0” (1219 mm) Width 26.0” (660 mm) Electrical Specifications North America 3 Phase... -
Page 11: Packaging
Contact Customer Service for more information. Delivery and Initial Inspection WARNING: DO NOT stack ovens more All Middleby Marshall ovens are shipped so as to than three high. prevent damage. It is the operator’s responsibility to ensure the oven is Upon delivery, inspect the shipping container for properly positioned on countertop. -
Page 12: Installation Near Open Heat Source
Source PS2020 and PS2620 is approved for ventless operation while single or double stacked. When placing a Middleby Marshall oven near an open heat source (see Figure 11), adhere to the To ensure continued compliance with all health, building, and fire codes, you are required to... -
Page 13: Daily Cleaning Instructions
Daily Cleaning Instructions = Wash, rinse, sanitize. = Completely dry with clean towel. (Use only Middleby Marshall-approved cleaner). WARNING: Always disconnect power before cleaning or servicing oven. WARNING: DO NOT attempt to clean the oven until it has cooled (screen reads “Oven Off”). -
Page 14: Weekly Cleaning Instructions
Weekly Cleaning Instructions = Wash, rinse, sanitize. (Use only = Completely dry with clean towel. Middleby Marshall-approved cleaner). WARNING: Always disconnect power before cleaning or servicing oven. WARNING: DO NOT attempt to clean the oven until it has cooled (screen reads “Oven Off”). - Page 15 Step 3: Remove Inner Oven Step 4: Clean Oven Components Components Replace lters if damaged or torn.
- Page 16 CLEANING Step 5: Replace Oven Components Step 6: Verify Chain Tension Acceptable - Chain (A) is tight and easily clears crumb tray holder (B) Call service to have link removed - Chain (A) is loose and risks contact with crumb tray holder (B) Step 7: Ready the Oven for Use...
-
Page 17: Oven Controls
Figure 12: Oven Controls Oven Controls Oven Controls Figure 12. Figure 19 1. Display 4. Back/Off Key The display shows current oven operation Depending on the mode the oven is in, the and/or user programming information. back/off key will return the oven to the previ- ous screen or turn the oven off (page 9). -
Page 18: Cooking
BREAKFAST STANDARD OvEN OPERATION LUNCH LUNCH WINGS BREAKFAST PIZZA BREAKFAST BREAKFAST PIZZA OVEN OFF SOAKING COOLING DOWN LUNCH WINGS BELT 10:00 LUNCH WINGS BREAKFAST PIZZA BREAKFAST PIZZA BREAKFAST OVEN IDLE BELT SPEED COOKING BELT LUNCH WINGS LUNCH WINGS 10:00 BREAKFAST PIZZA WARM UP Figure 13: Cooking Modes... - Page 19 Cooking belt speed select screen. If you select con- tinue, the oven will not save the belt speed. Figure 13. Happens When... This section explains how to cook a food -The user selects a cooking profile from mode product by describing the “standard operation” 1 or 6.
-
Page 20: Editing A Cooking Profile
STANDARD OvEN OPERATION Editing a Cooking Profile Changing a Cooking Profile Name 1. From the cooking screen (Figure 14), To edit a cooking profile, the oven must be press L1 to access the name change in the cooking mode and the full edit or flex screen (Figure 15). -
Page 21: Adjusting The Belt Speed
Adjusting the Belt Speed 2. Adjust the air speed. 1. Press the soft key adjacent to the conveyor - Press the up key to increase the air belt (Figure 14, page 11). speed in 5% increments up to 100%. + Flex option enabled: the user can only 2. -
Page 22: Oven Modes
OvEN MODES Config Mode The config mode (Figure 16) serves four Accessing the Fault Count Screen main purposes: From the config mode (Figure 16), press R1 1. To access the smart card screen. to access the fault counts screen (Figure 20, 2. -
Page 23: Changing The Display Temperature
Changing the Display Temperature COUNTS FAULT The oven can display the temperature F6: 0 F1: 0 in either Celsius or Fahrenheit units. To F7: 0 F2: 0 F8: 0 F3: 0 change the display temperature, press L1 in F4: 0 F9: 0 F5: 0 F10: 0... -
Page 24: Info Screen
Please note that the oven will be inoperable until a successful update is performed. As such, Middleby Marshall rein- forces proper handling of smart cards to help prevent static damage, and recommends that each service technician keep a backup copy. -
Page 25: Troubleshooting
Please attempt the recommended action before calling Customer Support (800-908-8726) or your Authorized Distributor. If any fault or error message occurs that is not listed below, contact Middleby Marshall Customer Support (800-908-8726). WARNING: Food and oven cavity are hot! Use extreme caution when troubleshooting the issues below. - Page 26 TROubLEShOOTING Issue Possible Cause(s) Resolution F2: Low Temp - Oven power interrupted. - Verify wall circuit breaker is on. Reset During Cook breaker and then power oven back on. - Excessive load. - Reduce load. - Oven is not clean. - Clean the oven following the weekly cleaning instructions on pages 4-7.
-
Page 27: Replaceable Parts
Replaceable Parts The following is a list of parts that may need replacing during the life of the oven. For more information, please contact Middleby Marshall. Call 877-34-OVENS or your authorized distributor. Part Description Middleby Marshall Part Number Air Filter... -
Page 28: North America Limited Warranty
Equipment’s owner’s manual (as may be updated by Middleby Marshall from time to time, the “Manual”), a copy of which is provided to you with the Equipment or otherwise will be furnished to you upon request, is excluded from this limited warranty. - Page 29 If the full invoiced amount for Equipment purchased has not been paid within forty-five (45) days from the invoice date, then Middleby Marshall will have no obligation to honor this or any other warranty on the Equipment until payment is received in full, including any accrued interest or other charges, has been satisfied, at which time warranty coverage will be reinstated, but the Warranty Period will not be extended.
- Page 30 Marshall will invoice customer and customer will pay such invoice based on terms of net 10 days. Customer also agrees to pay any cost incurred by Middleby Marshall or its service agent associated with a service agent responding to a call for service, but then being refused or unable to gain access to the Oven on Customer’s premises.
-
Page 31: International Limited Warranty
International Limited Warranty This Limited Warranty shall apply to the sales of the Middleby Marshall PS2020 Conveyor oven (the “Equipment”) manufactured by Middleby Marshall Inc. (“Middleby Marshall”), and sold to purchasers outside of the United States, Canada, and Puerto Rico by an Authorized Distributor of Middleby Marshall International (the “Authorized Distributor”). - Page 32 Authorized Distributor or its authorized service agents in connection with Your warranty claim; 3. You make the Equipment available to Middleby Marshall, the Authorized Distributor or its authorized service agents; 4. The Equipment has been installed by an Authorized Distributor and you have provided all necessary information for the Authorized Distributor to register the Equipment in the Middleby Marshall global warranty system;...
- Page 33 PROFITS, OR SUBSTITUTE USE SUFFERED BY YOU OR ANY THIRD PARTY, WHETHER ARISING IN CONTRACT, TORT (INCLUDING NEGLIGENCE), OR OTHERWISE RESULTING FROM ANY BREACH BY Middleby Marshall OR THE AUTHORIZED DISTRIBUTOR OF THE LIMITED WARRANTY PROVIDED HEREIN, EVEN IF Middleby Marshall AND/OR THE AUTHORIZED DISTRIBUTOR WERE APPRISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 34 Middleby Marshall shall be valid unless in a signed form from Middleby Marshall. Waiver: Waiver by Middleby Marshall or an Authorized Distributor of any default will not be deemed a continuing waiver of such default or a waiver of any other default.
- Page 35 For service or information: Customer Support at 1-877-346-8367 Global Operations Customer Support: 14 00 Toastm as t er D ri ve 1-8 77- 346 -83 67 Elgin, IL 60120 w ww . m i ddl eby m ar s hal l. c o m 1- 847-741- 330 0 DOC-1030 / Rev.
