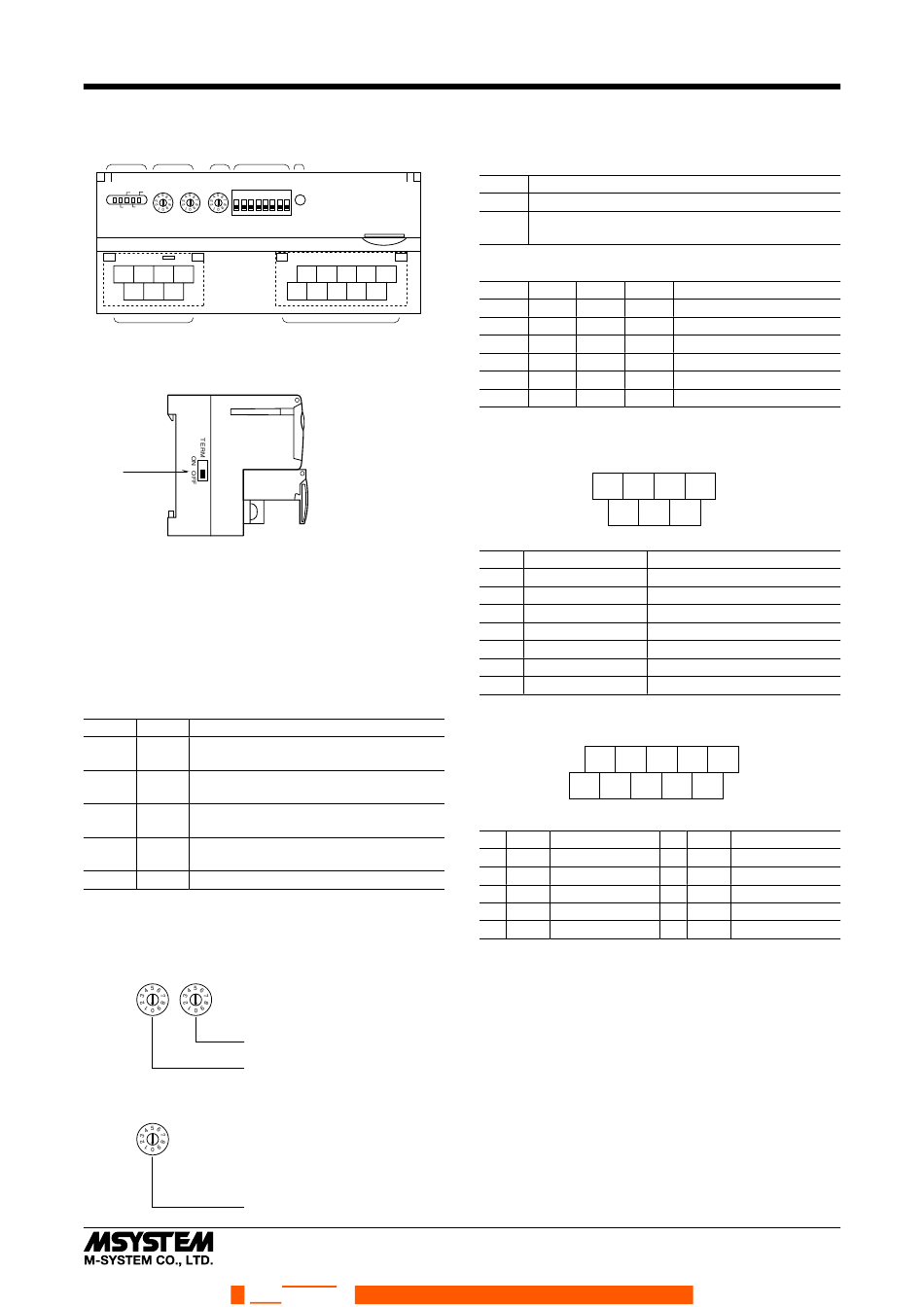

COMPONENT IDENTIFICATION

■ FRONT VIEW
(A) (B) (C) (D)
1 2 3 4 5 6 7 8
X10 X1
PWR ERR
RD
RUN SD
STATION ADD. B.RATE
4 5 6 7
1 2 3
(F)
■ SIDE VIEW
(H)
(A) Status Indicator LED *
1
(B) Station Address Setting Rotary SW
(C) Baud Rate Setting Rotary SW
(D) Operating Mode Setting DIP SW (SW1)
(E) PC Configurator Jack
(F) CC-Link, Power Supply Terminals
(G) Output Terminals
(H) Terminating Resistor SW
*1. Refer to 'Status Indicator LED' section for detailed information.
■ STATUS INDICATOR LED
ID COLOR FUNCTION
PWR Red Turns on when the internal 5V is sup-
plied normally.
RUN Red Turns on when the refresh data is re-
ceived normally.
ERR Red Turns on when the received data is
abnormal.
SD Red Turns on when the module is transmit-
ting.
RD Red Turns on when the module is receiving.
■ STATION ADDRESS
Station Address is selected between 1 and 64 in decimal.
The left switch determines the tenth place digit, while the
right switch does the ones place digit of the address.
Station Address Setting (x1)
Station Address Setting (x10)
■ BAUD RATE
Baud Rate is selected with the rotary switch.
0 : 156 kbps
1 : 625 kbps
2 : 2.5 Mbps
3 : 5 Mbps
4 : 10 Mbps
Baud Rate Setting
SEN TRONIC
(E)
CNFG.
6 7 8 9 10
1 2 3 4 5
(G)
056 222 38 18 mailbox@sentronic.com
AG
■ OPERATING MODE
(*) Factory setting
• Output at the loss of communication (SW1-4)
SW1-4 OUTPUT AT THE LOSS OF COMMUNICATION
OFF Reset the output (to -15% or approx. -11.5V DC)
Hold the output (*)
ON
(maintains the last data received normally)
• Output range (SW1-5, 1-6, 1-7, 1-8)
SW1-5 SW1-6 SW1-7 SW1-8
OFF OFF OFF OFF
ON OFF OFF OFF
ON ON OFF OFF
OFF OFF ON OFF
ON OFF ON OFF
ON ON ON ON
Note : Be sure to set unused SW1-1 through 1-3 to OFF.
■ POWER SUPPLY, CC-LINK TERMINAL ASSIGNMENT
4 5
DA DG
1 2
DB SLD
NO. ID
1 DB
2 SLD
3 FG
4 DA
5 DG
6 U(+)
7 V(–)
■ OUTPUT TERMINAL ASSIGNMENT
6 7 8
NC V0
1 2 3
NC COM0 COM1 COM2
NO. ID FUNCTION
1 NC No connection
2 COM0 Common 0
3 COM1 Common 1
4 COM2 Common 2
5 COM3 Common 3
■ TERMINATING RESISTOR
To use the terminating resistor, turn the switch ON, and
OFF to invalidate. (Factory setting OFF)
www.sentronic.com
R7C-YV4
OUTPUT RANGE
-10 – +10V DC (*)
-5 – +5V DC
0 – 10V DC
0 – 5V DC
1 – 5V DC
PC Configurator setting
6 7
U(+) V(–)
3
FG
FUNCTION, NOTES
White
Shield
FG
Blue
Yellow
Power input
Power input
9 10
V1 V2 V3
4 5
COM3
NO. ID FUNCTION
6 NC No connection
7 V0 Voltage output 0
8 V1 Voltage output 1
9 V2 Voltage output 2
10 V3 Voltage output 3
