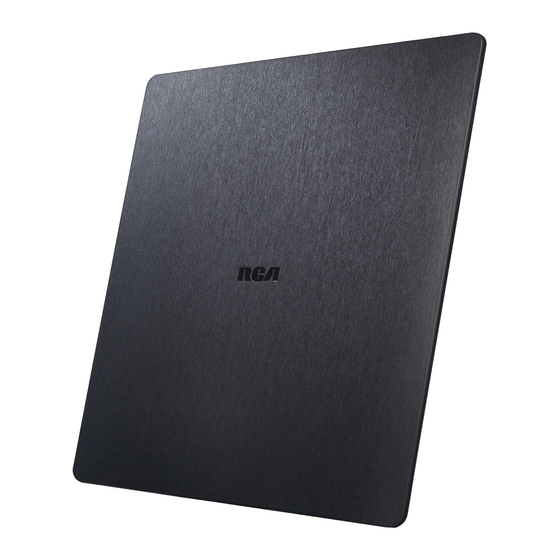

RCA ANT1ME Quick Start Manual

amplified indoor HDTV
antenna with signal meter
QUICK START GUIDE
Use the RCA Signal Finder App to find
1
the best location for your antenna.
In the Google Play or Apple App Stores,
search for "RCA Signal Finder" and look for the
icon shown here. Then download and install
the App.
Launch the App and follow the directions
there to find the best location and orientation
for your antenna.
Antenna Placement Tips
The antenna works best in a vertical position, using either
the integrated stand or mounted on a wall.
Avoid metal surfaces (like a metal stand).
Move the antenna close to or in a window.
Position the antenna as high as possible.
Connect the antenna to the provided
2
amplifier insert.
Antenna
Coaxial Cable
Use the antenna's signal meter to
3
fine-tune antenna location and
orientation.
Plug the antenna amplifier's power
adapter into a standard AC outlet.
Don't connect it to your TV yet.
Important: This power adapter should
be plugged in so that it stays vertical
or lays flat.
STOP!
Amplifier Insert
DO NOT RETURN this product to the store!
Visit RCAAntennaHelp.com for instructional
and how-to videos.
Check out setup videos at
www.RCAAntennaHelp.com
Connect the amplifier insert to your
4
TV or digital converter box.
Amplifier Insert
Unplug the antenna amplifier and make sure your TV is
turned off.
Connect the coaxial cable from the antenna amplifier to
the antenna input on your TV or digital converter box.
Plug in the amplifier's power cord to
5
a power outlet.
You can use this antenna with or without its amplifier. Try with
the amplifier first—it provides the best performance in most
situations.
6
Scan for channels on your TV.
Most TVs have a channel scan option in their menu
system, many times in a SETUP or CHANNEL menu under
ANTENNA.
For detailed instructions on performing a channel scan,
see the owner's manual that came with your TV.
Important: You must perform a channel scan to receive
any channels!
ANT1ME Insert 02
The signal meter on
the antenna's amplifier
measures the signal of the
strongest UHF signal your
antenna is receiving.
Move your antenna until the
signal meter shows at least
the middle yellow indicator.
For best performance, try to
get the green!
TV or
converter
ANTENNA box (back)
IN
