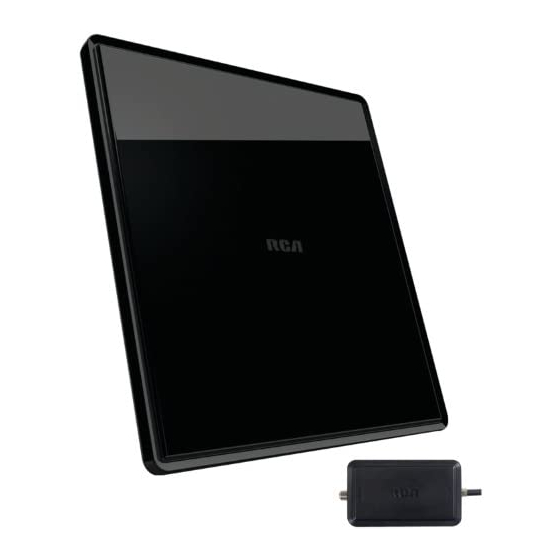

RCA ANT1750F User Manual

Multi-directional slim digital antenna
Hide thumbs


Advertisement

FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the
FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the radio or television off and on, the user
is encouraged to try to correct interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on another circuit.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
Industry Canada Regulatory Information
CAN ICES-3 (B)/NMB-3 (B)
Avis d'Industrie Canada
CAN ICES-3 (B)/NMB-3 (B)
Congratulations on your purchase of the ANT1750F
With this contemporary antenna, rabbit ears are a thing of the past. This sleek, attractive
antenna features the most advanced technology, including a patented engineering design that
provides excellent reception for both analog and digital TV broadcasts.
Multi-Directional Antennas
A multi-directional antenna is able to receive signals from any direction. Useful for both
analog and digital reception, the ANT1750F looks great, facilitates optimal reception,
and requires very little space. The patented multi-directional technology ensures that the
antenna does not need to be adjusted according to the location of the transmitting signal.
ANT1750F
Multi-Directional Slim Digital Antenna /
Antena multidireccional plana para interiores /
Antenne numérique mince multidirectionnelle
User's Guide / Guía del Usuario / Guide de l'utilisateur
Multi-Directional Slim Digital
Antenna.
1

Advertisement

Table of Contents
loading

  Related Manuals for RCA ANT1750F

  Summary of Contents for RCA ANT1750F

  • Page 1 Multi-Directional Antennas A multi-directional antenna is able to receive signals from any direction. Useful for both analog and digital reception, the ANT1750F looks great, facilitates optimal reception, and requires very little space. The patented multi-directional technology ensures that the antenna does not need to be adjusted according to the location of the transmitting signal.
  • Page 2 And, with its compact footprint, the ANT1750F is so unobtrusive, you can hang it on the wall, stand it up or lay it fl at. Its attractive design complements any décor. The ANT1750F: •...
  • Page 3: Positioning The Antenna

    After locating the optimal position for your antenna, choose from one of three options: • Lay the ANT1750F fl at The ANT1750F has raised feet on its bottom to prevent scratching of furniture. Make sure you place the antenna on a fl at, level surface.
  • Page 4 To connect the ANT1750F without the amplifi er directly to your TV: ANT1750F Built-In 1. Make sure your TV is turned off. Coaxial Cable 2. Connect the ANT1750F’s built-in coaxial cable to the antenna input on your TV. 3. Re-scan for channels on your TV.
  • Page 5 Important: This power unit should be plugged in so that it stays vertical or lies fl at. 6. Re-scan for channels on your converter box. To connect the ANT1750F without the amplifi er to a converter box: ANT1750F Built-In 1. Make sure your TV is turned off.
  • Page 6: Coaxial Cable Installation Precautions

    Coaxial Cable Installation Precautions • Do not bend coaxial cables into less than a three-inch radius. Tighter bends can cause shorts and can change a cable’s impedance. • Do not install a coaxial cable where it will have a pulling tension greater than 15 pounds during installation.
