RCA ANT1150E Quick Start Manual

ultra-thin multi-directional
amplified indoor HDTV antenna
QUICK START GUIDE
Use the RCA Signal Finder App to find the
1
best location for your antenna.
In the Google Play or Apple App Stores, search for "RCA Signal
Finder" and look for the icon shown here. Then download and
install the App.
Launch the App and follow the directions there to find the
best location and orientation for your antenna.
Antenna Placement Tips
Avoid metal surfaces (like a metal stand).
Move the antenna close to or in a window.
Position the antenna as high as possible.
2
Connect the antenna to your TV.
3
Plug in the antenna's amplifier.
TIP: The Bypass / Amplifier switch lets you turn the amplifier for TV signals
on (Amplifier) or off (Bypass). Most TV channels will perform better with this
switch left in the Amplifier position. However, if a channel is not providing the
performance you expect, try watching it with this switch in the Bypass position to
see if that makes a difference.
STOP!
Make sure your TV is turned off. Then
connect the antenna's coaxial cable to
the antenna input on your TV or digital
converter box.
Important: Make sure you uncoil the
antenna's cable completely. Leaving it
coiled will reduce reception performance.

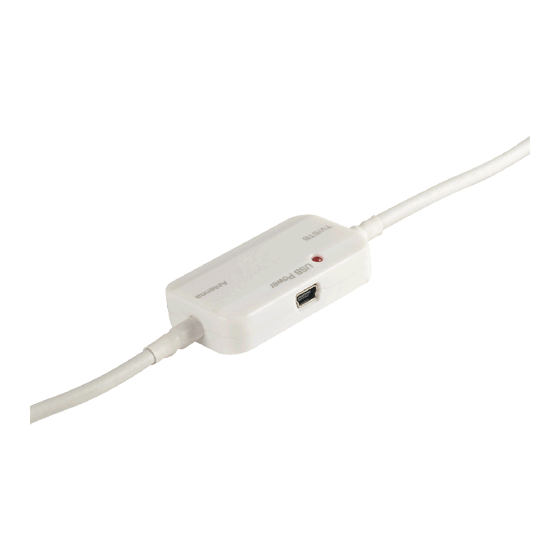

Plug one end of the included USB to
micro-USB cable into the amplifier on the
antenna's built-in cable.
DO NOT RETURN this product to the store!
Visit RCAAntennaHelp.com for instructional and how-to videos.
Check out setup videos at
www.RCAAntennaHelp.com
4
Mount the antenna.
There are two easy ways to mount the antenna.
Option 1: Using the mounting squares
Separate the For each square,
mounting remove the
squares (there backing and
are four in the press the square
box). into place on the
antenna.
Option 2: Using the antenna's mounting holes
5
Scan for channels on your TV.
Most TVs have a channel scan option in their menu system, many times in a
SETUP or CHANNEL menu under ANTENNA.
For detailed instructions on performing a channel scan, see the owner's
manual that came with your TV.
Important: You must perform a channel scan to receive any channels!
ANT1150E QSG 02
Plug the other end of the included USB to
micro-USB cable into the power adapter
provided. Then plug the adapter into a power
outlet or surge protector.
Note: If your TV has a USB power outlet, you
can plug the USB to micro-USB cable directly
into it for power instead of using the power
adapter.
Remove the Line up the
liner from the antenna and press
other side of it against the
each square. mounting surface
for 10 seconds. Let
go, then press 30
seconds more.
Insert two thumbtacks (not included) into
the two holes on the top of the antenna.
