3 Device Installation

3.1 Installation Steps

Important
Before the installation, please make sure the installation environments can at least support 3x
weight of the camera.

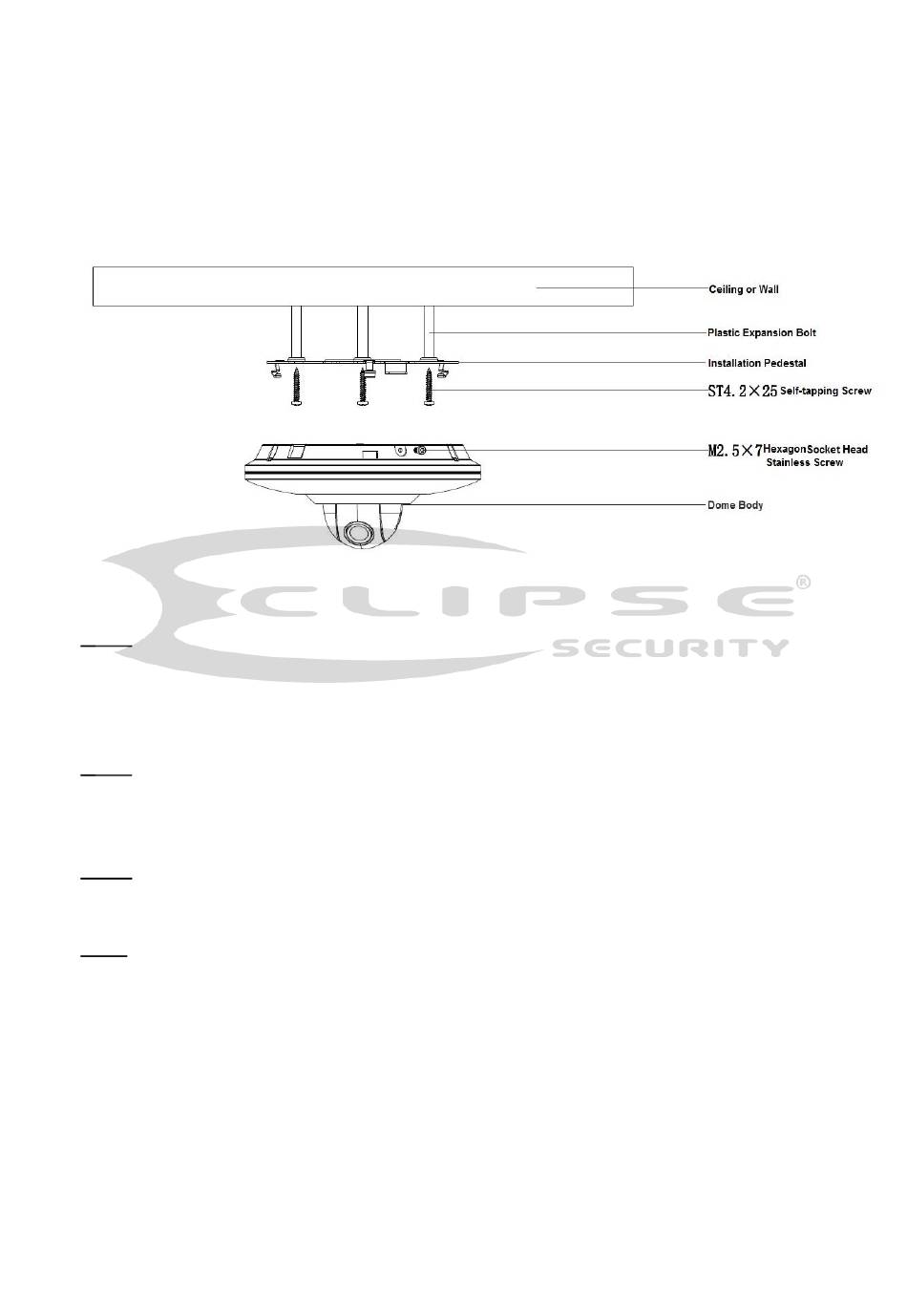

Figure 3-1
Please follow the steps listed below to install the device.
Step 1
Please take the installation position map in the accessories bag, and then paste it on the ceiling or
the wall according to your monitor area requirements. Draw and then dig three plastic expansion
bolts holes in the installation surface and then insert three expansion bolts in the holes. Secure these
three bolts firmly. Please draw the cable out from the cable exit when you install the device.
Step 2
Adjust the device installation pedestal to the proper position and then line up the three screw holes in
the device pedestal to the three plastic expansion bolt holes in the installation position. Put the three
self-tapping screws in the three plastic expansion bolts and lock them firmly.
Step 3
Aim the three slots on the dome body to the three corresponding snaps on the installation pedestal
and then push up slowly until you hear a clear sound "KA".
Step4
Screw the three M2.5*7 hexagon socket head stainless screws (in figure 2-1) into the corresponding
threaded holes of the dome body to tighten the installation pedestal and prevent falling.
Note: The device supports bottom cable exit and side cable exit; refer to the following figure for side
cable exit.
