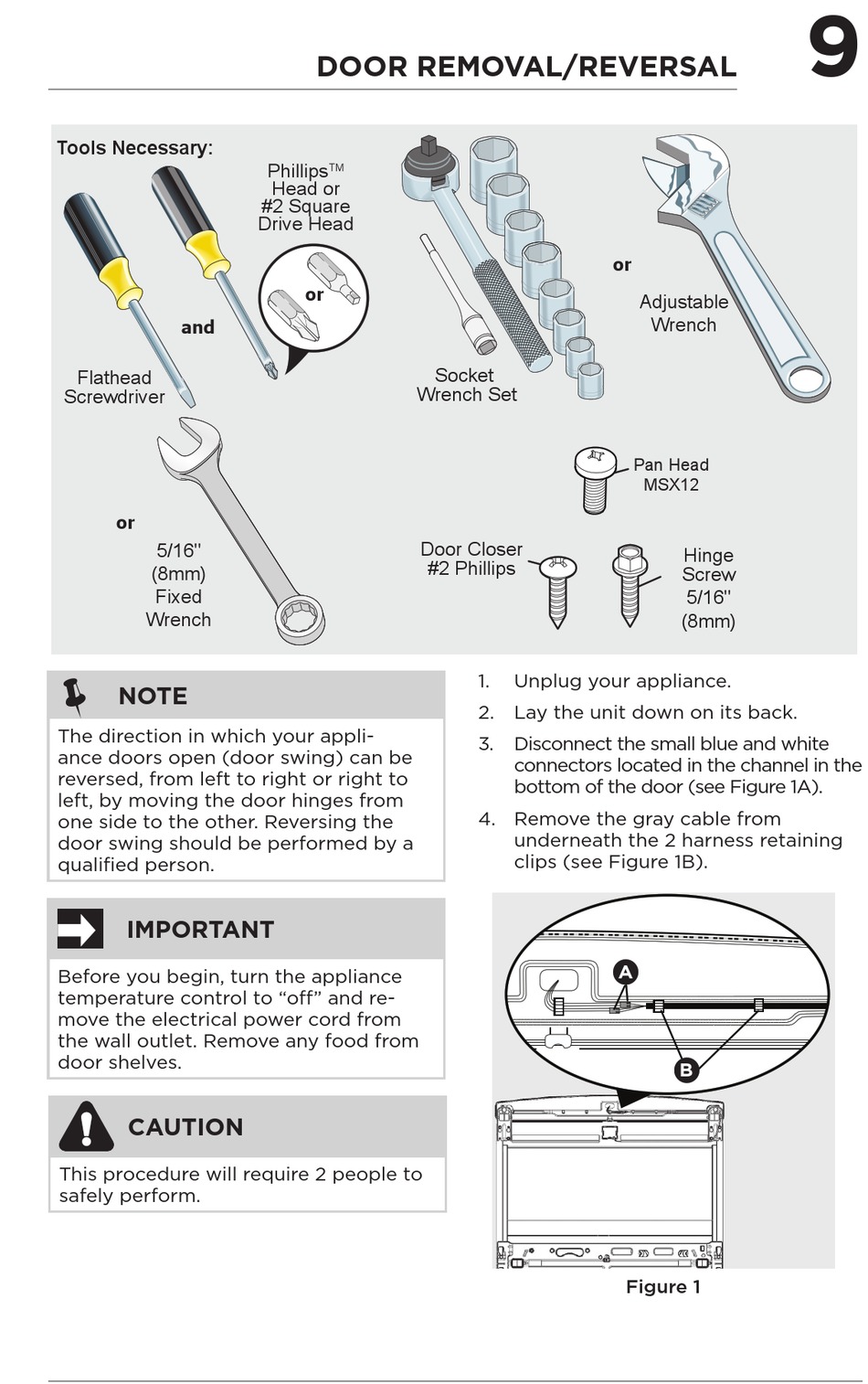

Door Removal/Reversal - Frigidaire FRAE2024AW Use & Care Manual

Tools Necessary:
and
Flathead
Screwdriver
or
5/16"
(8mm)
Fixed
Wrench

NOTE
The direction in which your appli-
ance doors open (door swing) can be
reversed, from left to right or right to
left, by moving the door hinges from
one side to the other. Reversing the
door swing should be performed by a
qualified person.
IMPORTANT
Before you begin, turn the appliance
temperature control to "off" and re-
move the electrical power cord from
the wall outlet. Remove any food from
door shelves.
CAUTION
This procedure will require 2 people to
safely perform.

DOOR REMOVAL/REVERSAL

Phillips
TM
Head or
#2 Square
Drive Head
or
Wrench Set
Door Closer
Socket
#2 Phillips
1. Unplug your appliance.
2. Lay the unit down on its back.
3. Disconnect the small blue and white
connectors located in the channel in the
bottom of the door (see Figure 1A).
4. Remove the gray cable from
underneath the 2 harness retaining
clips (see Figure 1B).
or
Adjustable
Wrench
Pan Head
MSX12
Hinge
Screw
5/16"
(8mm)
A
B
Figure 1
9
