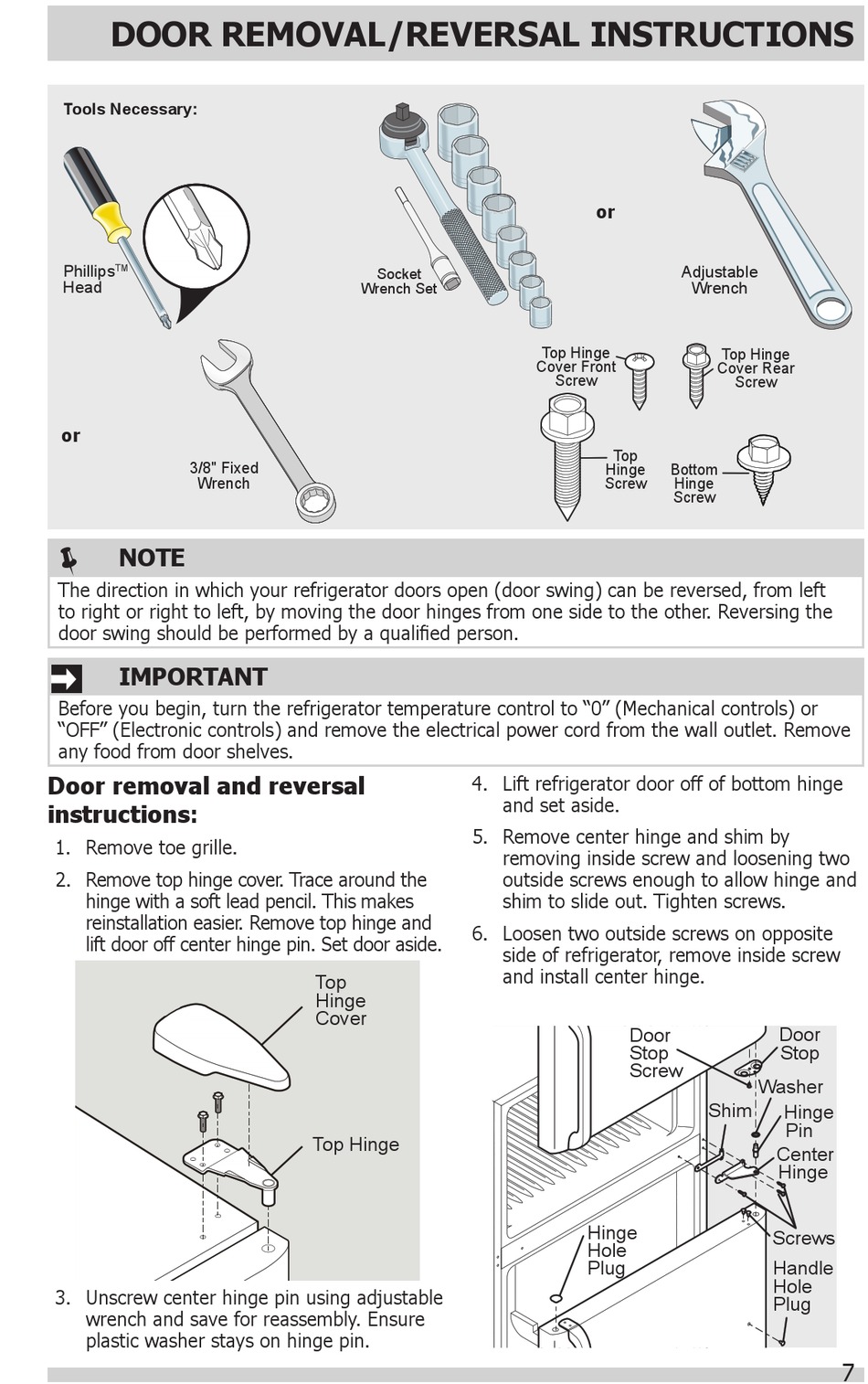

DOOR REMOVAL/REVERSAL INSTRUCTIONS
Tools Necessary:
Phillips
TM
Head
or
3/8" Fixed
Wrench
NOTE
The direction in which your refrigerator doors open (door swing) can be reversed, from left
to right or right to left, by moving the door hinges from one side to the other. Reversing the
door swing should be performed by a qualified person.
IMPORTANT
Before you begin, turn the refrigerator temperature control to "0" (Mechanical controls) or
"OFF" (Electronic controls) and remove the electrical power cord from the wall outlet. Remove
any food from door shelves.
Door removal and reversal
instructions:
1. Remove toe grille.
2. Remove top hinge cover. Trace around the
hinge with a soft lead pencil. This makes
reinstallation easier. Remove top hinge and
lift door off center hinge pin. Set door aside.
3. Unscrew center hinge pin using adjustable
wrench and save for reassembly. Ensure
plastic washer stays on hinge pin.
Socket
Wrench Set
4. Lift refrigerator door off of bottom hinge
5. Remove center hinge and shim by
6. Loosen two outside screws on opposite
Top
Hinge
Cover
Top Hinge
or
Top Hinge
Cover Front
Screw
Top
Hinge
Screw
and set aside.
removing inside screw and loosening two
outside screws enough to allow hinge and
shim to slide out. Tighten screws.
side of refrigerator, remove inside screw
and install center hinge.
Door
Stop
Screw
Hinge
Hole
Plug
Adjustable
Wrench
Top Hinge
Cover Rear
Screw
Bottom
Hinge
Screw
Door
Stop
Washer
Shim
Hinge
Pin
Center
Hinge
Screws
Handle
Hole
Plug
