Item #1006596133, 1006867923, 1006867893, 1007257456, 1007257438, 1007257441
Model #P188424, P1890, P1896, P188424-G, P1890-G, P1896-G
USE AND CARE GUIDE

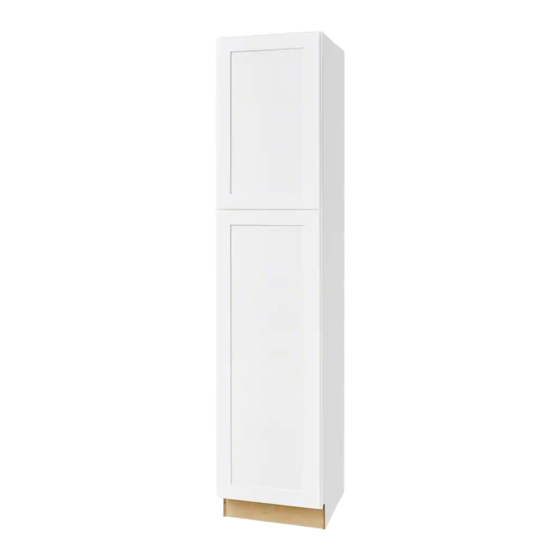

PANTRY CABINET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this cabinet. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY P188424
Summary of Contents for HAMPTON BAY P188424
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Cabinet Assembly . -
Page 3: Pre-Assembly
Pre-Assembly BEFORE YOU BEGIN Compare all parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not assemble this product. Contact Customer Service. Assemble the cabinet on a soft surface such as carpet or the cardboard container of this product. TOOLS REQUIRED Phillips Rubber mallet... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Back Panel Side Panel Face Frame Top, Middle, Bottom Panels Toe Kick Shelves * 96 in. Tall pantries have 4 shelves. -
Page 5: Cabinet Assembly
Cabinet Assembly Attaching the posts to the panels □ Align six posts (AA) with pre-drilled holes on each of the panels and frame (A – C) and secure with six screws (BB) on each panel and frame (A – C). Attaching the side panels into the face frame □... - Page 6 Cabinet Assembly (continued) Attaching the bottom panel □ Slide the top, bottom, and middle panels (D) into grooves in the sides. □ Snap six corner locks (CC) over the posts to secure the face frame (C) and side panels (B) as shown (two corner locks (CC) on the bottom, two on the top, and two under the middle panel).
- Page 7 Cabinet Assembly (continued) Attaching the back panel □ Assemble the back panel (A) by attaching two corner locks (CC) to the top and two corner locks (CC) to the bottom of the cabinet. Securing the bottom corner locks □ Insert screws (BB) through the holes in the top four and bottom four corner locks (CC), and screw into the top/bottom panels (D). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Cabinet Assembly (continued) Attaching the toe kick □ Slide the toe kick (E) into the grooves of the side panels (B) so that it sits flush with the bottom of the cabinet. □ Insert two screws (BB) into the pocket holes to secure the toe kick (E) to the sides. Securing the back and side panels □...
- Page 9 Cabinet Assembly (continued) Attaching the remaining corner locks □ Lift the cabinet to a normal standing position. NOTE: Two people are required for this step. □ Open the bottom door to access under the middle panel (D). Attach remaining two corner locks (CC) under the middle panel (D), and insert four screws (BB) through the holes in the corner locks (CC).
- Page 10 Cabinet Assembly (continued) (OPTIONAL) Reversing the door position □ You can remove and reposition the door to the other side of the face frame at any time using the pre-drilled holes. For pre-drilled holes that are not used, you can cover them up using a wax pencil or touch-up paint pen.
-
Page 11: Care And Cleaning
Cabinet Assembly (continued) Installing the shelves □ Place the shelf pins (DD) inside the assembly at the desired locations using the pre-drilled holes. □ Tilt the shelves (F) to fit inside the face frame and snap over the shelf pins (DD). □... - Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
