CHS12LB50a

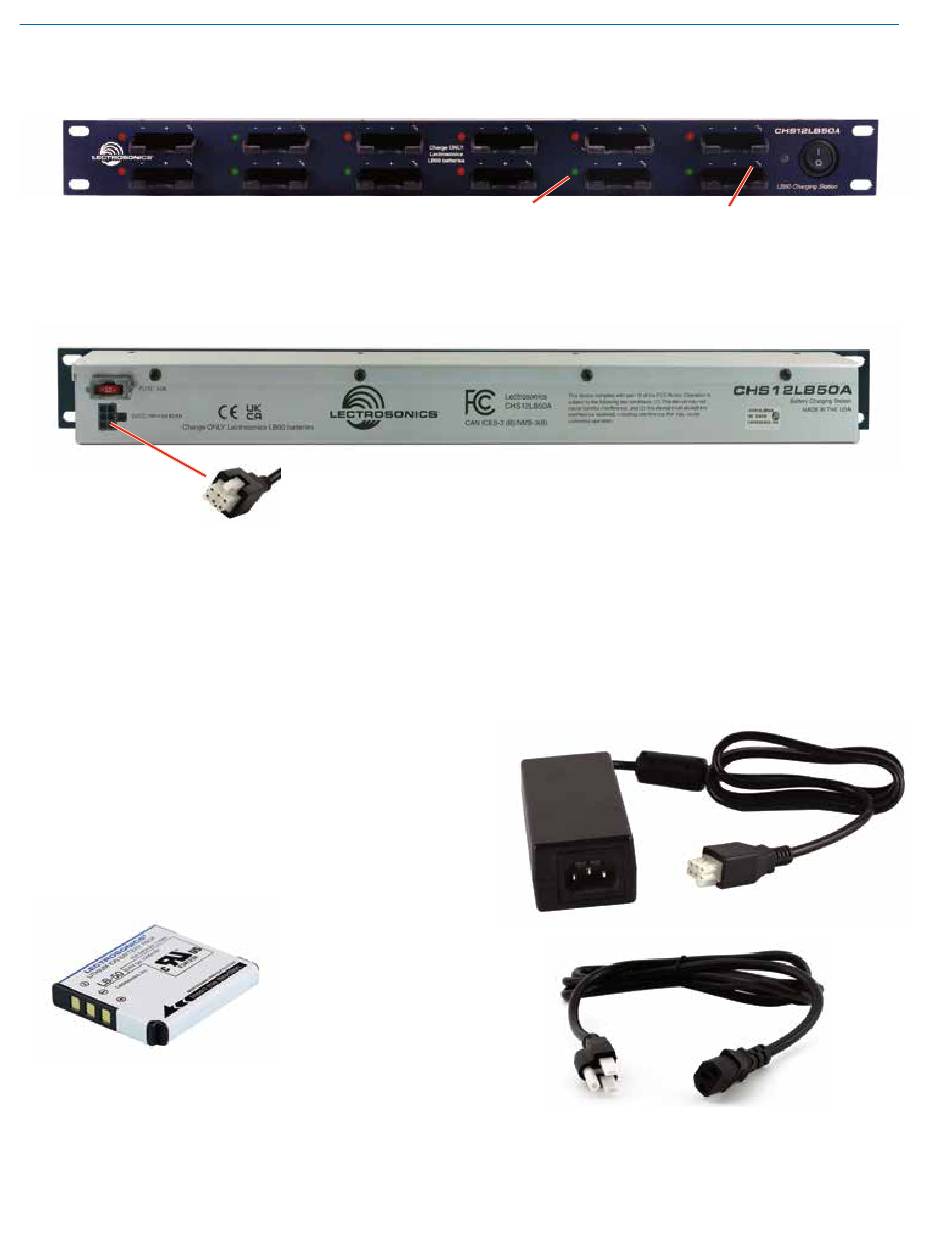

Front Panel

Rear Panel

Specifications

Power requirements: 5VDC, 9A max.
Battery charging time: 3.5 hours
Dimensions:
Weight:
With batteries:
Without batteries:
The Lectrosonics LB-50 is the only battery that
should be used with the CHS12LB50a charger.
6
Molex 6-pin connector
19.00 in. wide
1.70 in. deep
1.97 in. high
2.15 lbs. (34.3 ozs.)
1.55 lbs. (24.8 ozs.)
Charging Status LED
Accessories
The Lectrosonics DCR5/9AU power supply (included)
is required for use with the charger.
An AC cord appropriate for region of operation is
included.
DCR5/9AU
Battery Orientation Marker
