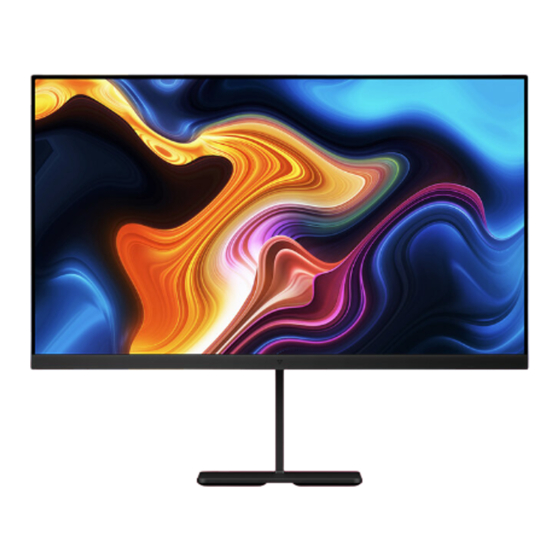

DOUGH Spectrum ES07D03 Manual
  1. Manuals
  2. Brands
  3. DOUGH Manuals
  4. Monitor
  5. Spectrum ES07D03
  6. Manual

DOUGH Spectrum ES07D03 Manual

Hide thumbs Also See for Spectrum ES07D03:
Table of Contents

Advertisement

Quick Links

Dough Spectrum User Manual Rev.77
ES07D03
ES07DC9
© Copyright 2022 Eve Distribution, Ltd.
AMD is a trademark of Advanced Micro Devices, Inc. NVIDIA, the NVIDIA logo, and G-SYNC are
trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries.
DisplayPort™, the DisplayPort™ logo, and VESA® are trademarks or registered trademarks
owned by the Video Electronics Standards Association (VESA) in the United States and other
countries. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC. USB Type-C® and USB-C® are registered
trademarks of USB Implementers Forum. Windows is either a registered trademark or trademark
of Microsoft Corporation in the United States and/or other countries.
The information contained herein is subject to change without notice. The only warranties for
Dough products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional
warranty. Dough shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: April 2021
About this manual
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectrum ES07D03 and is the answer not in the manual?

Questions and answers

Related Manuals for DOUGH Spectrum ES07D03

Summary of Contents for DOUGH Spectrum ES07D03

  • Page 1 Dough products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Dough shall not be liable for technical or editorial errors or omissions contained herein. First Edition: April 2021...

  • Page 2: About This Manual

    ABOUT THIS MANUAL This manual provides information on monitor features, setting up the monitor, and technical specifications, for the following models: ES07D03, ES07DC9 CAUTION: Indicates a hazardous situation that, if not avoided, could result in death or injury. IMPORTANT: Indicates information considered important but not hazard- related (for example, messages related to property damage).

  • Page 3: Table Of Contents

    TABLE OF CONTENTS About this manual ..........................3 Table of contents ..........................4 Getting started ............................. 6 Important safety information ......................6 About Spectrum ..........................7 Features ............................7 Front components ........................... 8 Rear components ..........................8 Rear components ..........................9 Setting up Spectrum .........................
  • Page 4 Cleaning ............................42 Shipping ............................42 Disposal ............................42 Technical specifications ........................43 Display ............................43 Ports ...............................44 Features ............................45 Adjustment ............................45 Dough Spectrum Stand ........................45 Size and weight ..........................46 Electrical and operating requirements ..................46 Limited warranty ..........................46 In the box ............................47 Table of contents...

  • Page 5: Getting Started

    Do not drop the monitor or place it on an unstable or vibrating surface. Use the appropriate and correctly sized furniture designed to properly support your Dough Spectrum. Monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause damage or personal injury.

  • Page 6: About Spectrum

    ABOUT SPECTRUM At Dough, we believe in putting product decisions in the hands of the end-user. Each and every aspect throughout the development process has been debated and discussed together with dough.community, a gathering of 10 000 tech enthusiasts who love premium devices with bleeding-edge technology.

  • Page 7: Front Components

    FRONT COMPONENTS Component Description 1 Indicator light Identifies the current state of the monitor. REAR COMPONENTS Component Description Stand/VESA connector Allows you to connect the Spectrum Stand or a VESA- compatible mounting device OSD joystick Opens the OSD menu, selects an item from the menu, or closes the OSD menu.

  • Page 8: Rear Components

    REAR COMPONENTS Component Description DisplayPort 1.4 port Connect a DisplayPort cable to a source device such as a computer. HDMI 2.1 port 1 Connect an HDMI cable to a source device such as a computer or game console. HDMI 2.1 port 2 Connect an HDMI cable to a source device such as a computer or game console.

  • Page 9: Setting Up Spectrum

    SETTING UP SPECTRUM It is important to set up your monitor correctly. That way you keep your gear and yourself safe, so you can focus on enjoying your equipment without worry. IMPORTANT: To prevent damage to the monitor, do not touch the surface of the LCD panel.
  • Page 10 3. Insert the top of the stand into the back of the monitor cabinet at an angle, then press down. The stand will click into place. NOTE: The Dough Spectrum Stand (model ES07D04) is sold separately. Setting up Spectrum...

  • Page 11: Removing The Spectrum Stand

    3. Slide up the quick-release button on the stand and lift the stand away from the monitor. NOTE: The Dough Spectrum Stand (model ES07D04) is sold separately. Setting up Spectrum...

  • Page 12: Attaching A Vesa Mount

    ATTACHING A VESA MOUNT Spectrum is compatible with most VESA mounting arms and mounts (sold separately). The VESA mount must support the 100×100mm VESA Mounting Standard and should be rated to hold at least 4.7kg of weight. IMPORTANT: You might need additional tools such as a screwdriver (purchased separately) when you attach a mounting device.

  • Page 13: Connecting Cables

    CONNECTING CABLES You want ports? Spectrum’s got ports! Let’s go over the various things you can connect to it. NOTE: With so many ports available, it isn’t surprising that not everyone intends to use the same cable types or cable lengths. Our surveys show that because of this, more than half the cables we could have included in the box would have gone to waste.
  • Page 14 2. Connect a video cable. • Connect one end of an HDMI cable to one of the HDMI ports on the rear of the monitor and the other end to the HDMI port on the source device. • Connect one end of a DisplayPort cable to the DisplayPort connector on the rear of the monitor and the other end to the DisplayPort connector on the source device.
  • Page 15 3. Connect an upstream cable for the built-in USB hub. • If you connected Spectrum to the video source device using USB Type-C, this same cable can double as the upstream cable for the built-in USB hub. • If you connected Spectrum to the video source device using HDMI or DisplayPort, you will need to connect the Type-B connector on a USB upstream cable to the USB Type-B upstream port on the rear of the monitor.
  • Page 16 4. Connect the AC adapter and power cord. Connect the power cord to the AC adapter and plug the other end into a grounded AC outlet. Then connect the adapter to the DC power connector on the rear of the monitor. CAUTION: To reduce the risk of electric shock or damage to the equipment: Plug the cord into a grounded (earthed) outlet.

  • Page 17: Connecting Usb Devices

    CONNECTING USB DEVICES Spectrum has a built-in USB hub that allows you to connect multiple devices with a single cable. The rear of the monitor provides one USB Type-C and one USB Type-B upstream port. Either can be used to connect the built-in USB hub to a host device. You can select which of the connected host devices controls the USB hub from the on-screen display (OSD) menu.

  • Page 18: Connecting Audio Devices

    CONNECTING AUDIO DEVICES Spectrum has a built-in digital-to-analog converter (DAC) that sends audio signals from the video source device to the amplified 3.5mm audio jack connector on the rear of the monitor. • Connect the 3.5mm audio jack plug to the audio port on the rear of the monitor to make use of your speakers, headphones, or other audio device.

  • Page 19: Installing A Security Cable

    INSTALLING A SECURITY CABLE You can secure the monitor to a fixed object with an optional security cable available from third parties. • Connect the lock to the Kensington Security Slot on the rear of the monitor and use the key provided to attach and remove the lock.

  • Page 20: One-Cable Solution

    ONE-CABLE SOLUTION You can attach a computer, notebook, or similar device to the monitor with a single USB Type-C cable. This USB Type-C cable then provides connectivity for high-speed data, audio and video, and up to 100W of power or charging. •...

  • Page 21: Setting Up Your Workspace

    SETTING UP YOUR WORKSPACE …or setting up your battle station. Whether you’re hard at work or clicking heads, it’s important to stay safe and healthy. That includes maintaining proper posture, health, and work habits. And of course, an ergonomic workspace with a properly set up monitor. Prolonged use of computers may lead to discomfort, headaches, eyestrain, or even physical injury.

  • Page 22: Watch Your Eyes

    4. Reposition your monitor as you adjust your working posture throughout the workday. Don’t stay in one fixed posture for too long, but avoid slouching or leaning, and get up to move around regularly. NOTE: The perfect working posture may require third-party accessories such as adjustable or ergonomic chairs, footrests, or specialized peripherals.

  • Page 23: Using The Monitor

    USING THE MONITOR TURNING ON THE MONITOR 1. Press the power button on the computer to turn it on. 2. Press the power button on the rear of the monitor to turn it on. When the monitor is first turned on, the monitor automatically scans the signal inputs for an active input and uses that input for the screen.

  • Page 24: Turning Off The Monitor

    TURNING OFF THE MONITOR 1. Press the power button on the rear of the monitor to turn it off. NOTE: If there is no video signal for a prolonged period, the monitor will enter standby mode. This means that the monitor is not turned off and will resume operation once a video signal is available again.

  • Page 25: Watermark And Image Retention

    WATERMARK AND IMAGE RETENTION Spectrum is designed with IPS (In-Plane Switching) display technology which provides ultrawide viewing angles and advanced image quality. IPS monitors are suitable for a wide variety of advanced image quality applications. This panel technology, however, is not suitable for applications that exhibit static, stationary, or fixed images for long periods of time without the use of screen savers.

  • Page 26: Using The On-Screen Display (Osd) Menu

    USING THE ON-SCREEN DISPLAY (OSD) MENU Use the on-screen display (OSD) menu to adjust the monitor screen image based on your preferences. You can access and make adjustments in the OSD menu using the joystick on the rear of the monitor by reaching underneath the bottom bezel. To change Spectrum’s settings, do the following: 1.
  • Page 27 2. To access the OSD menu, depress the joystick to open the OSD. 3. Use the joystick to navigate, select, and adjust the menu choices. • Pressing up or down will change the current selection or adjust the current setting. Pressing right will confirm the currently highlighted choice and proceed to the next •...

  • Page 28: Quick Actions

    QUICK ACTIONS Pressing the joystick in any direction when the OSD menu is not active, will perform quick actions. These lets you quickly enable or disable features, or cycle through available options: • Pressing down will cycle video input sources. •...

  • Page 29: Input/Output Menu

    INPUT/OUTPUT MENU SELECT INPUT SOURCE Selects from which port the video source device is connected. When set to ‘Select automatically’, the monitor automatically switches to an active input, if the current input is not active. SELECT USB HUB SOURCE Selects from which port the USB hub upstream host device is connected. When set to ‘Select automatically’, the USB source switches to USB Type-C if the active video input source is USB Type-C, or USB Type-B if the active video input source is HDMI or DisplayPort.
  • Page 30 USB-C BANDWIDTH PRIORITY Selects between maximum video signal bandwidth, or maximum USB hub data bandwidth for the USB Type-C port. maximum USB hub bandwidth maximum refresh rate at 4K High USB data speed 10Gbps 60Hz / 144Hz with DSC High refresh rate 480Mbps 144Hz NOTE: On model ES07D03, to reach 144Hz refresh rate when USB-C...

  • Page 31: Gaming Menu

    GAMING MENU CROSSHAIR Enables or disables a targeting reticule overlay. While the crosshair is active and the OSD menu is closed, pressing up or down on the joystick will adjust the position of the crosshair on the screen. FRAME RATE COUNTER Enables or disables a live display of the current input frame rate.

  • Page 32: Picture Menu

    PICTURE MENU NOTE: While HDR is enabled, the only option available in this menu is ‘Sharpness’. COLOR SPACE Selects the color space in which the monitor operates. In emulated sRGB mode, a look-up table (LUT) is applied that maps the colors to their calibrated DCI-P3 values, thus avoiding overshoot in colors.

  • Page 33: Performance Menu

    ASPECT RATIO Selects the method used for displaying content below native resolution. image upscaling behavior 1 : 1 the image is displayed exactly as per the input signal, even if that only uses a small portion of the screen. Pixel perfect the image is scaled up by duplicating pixels at an integer ratio, as large as will fit on the display.

  • Page 34: Osd Menu

    OSD MENU LANGUAGE Selects the language in which the OSD menu is displayed. The name of each language is always displayed in its own language, so that users who do not speak the currently selected language can find the setting to change it. language displayed as English...

  • Page 35: Indicator Light Menu

    INDICATOR LIGHT MENU ON BEHAVIOR Selects the behavior of the indicator light when the monitor is on. indicator light behavior Steady Always on Slow pulse Very slowly breathes on and off Fast pulse Quickly breathes on and off Slow blink Slowly but repeatedly turns on and off Fast blink Quickly and repeatedly turns on and off...

  • Page 36: Updating Firmware

    You can download the latest firmware updates from the Downloads section of our support page at https://www.dough.tech/pages/downloads. Special instructions may be included, so keep an eye out for instructions.pdf. Firmware is a specific class of software that provides low-level control for the device’s specific hardware.
  • Page 37 Some new features were introduced through firmware updates. The following table lists certain features that may require a firmware update before you can use them on your monitor. Alongside each feature, the firmware version is listed that your Spectrum model requires to use them. feature model model...

  • Page 38: Support And Troubleshooting

    SUPPORT AND TROUBLESHOOTING SOLVING COMMON PROBLEMS The following table lists possible problems, the possible cause of each problem, and the recommended solutions. Problem Possible cause Solution Screen is blank or Power cord is disconnected. Connect the monitor power cord. video is flashing. Monitor is off.

  • Page 39: Preparing To Contact Technical Support

    PREPARING TO CONTACT TECHNICAL SUPPORT If you cannot solve a problem using the troubleshooting tips in this section, you may need to contact technical support. Have the following information available when you contact Dough: Monitor model number • • Monitor serial number •...

  • Page 40: Maintaining The Monitor

    • If the monitor is not operating properly or has been dropped or damaged, contact an authorized Dough dealer, reseller, or service provider. This includes situations where: the power cord or plug is damaged, cut or frayed; liquid was spilled into the product;...

  • Page 41: Cleaning

    CLEANING 1. Turn off the monitor and unplug the power cord from the AC outlet. 2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth, for example microfiber. 3. When dealing with more than dust, use a cleaning solution specifically designed for LCD panels to dampen your cloth.

  • Page 42: Technical Specifications

    For the latest specifications or additional specifications on this product, go to https://www.dough.tech/products/spectrum-4k-144hz and click Tech Specs. NOTE: All specifications represent the typical specifications provided by Dough’s component manufacturers; actual performance may vary either higher or lower. DISPLAY SIZE monitor size 27"...

  • Page 43: Ports

    SPEED response time 5ms (gray-to-gray) typical 1ms (gray-to-gray) overdrive frequency range 48 – 144Hz adaptive sync VESA AdaptiveSync Display certified NVIDIA G-SYNC Compatible certified AMD FreeSync Premium Pro certified TECHNOLOGY panel technology Nano IPS Oxide TFT LCD backlight technology Bottom edge-lit white LED with KSF nano-particle layer ∇∇∇...

  • Page 44: Features

    DOUGH SPECTRUM STAND material Cast aluminum alloy vertical tilt 7° down, 23° up horizontal swivel pivot / landscape rotation 90° left, 90° right height adjust 122mm removable Yes, with quick-release button NOTE: The Dough Spectrum Stand (ES07D04) is sold separately. Technical specifications...

  • Page 45: Size And Weight

    External power adapter power supply input 110 – 240V 3.5A 50 – 60Hz LIMITED WARRANTY 3 years limited warranty ‘Zero bright dot’ pixel policy NOTE: For warranty details or instructions, please refer to the warranty policy available on https://www.dough.tech/pages/dough-spectrum- limited-warranty. Technical specifications...

  • Page 46: In The Box

    IN THE BOX Dough Spectrum Power adapter Power cable Quick start guide Color calibration report ∇ Model ES07D03 only. ∇∇ Model ES07DC9 only. ∇∇∇ Planned feature, pending firmware update. ∇∇∇∇ On model ES07D03, requires firmware version 106 or newer. Technical specifications...
