Summary of Contents for Philco PBS1485BI

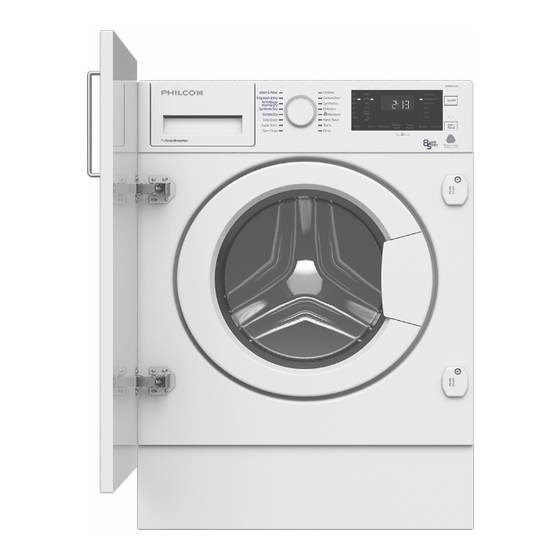

- Page 1 PBS1485BI Washer-Dryer User Manual Document Number 2820529569_EN/ 01-08-22.(10:42)
- Page 2 INFORMATION Dear Customer, • Important information or useful hints about Thank you for choosing a PHILCO appliance. usage. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions.
- Page 3 1 Important instructions for safety and environment This section contains safety instructions WARNING! that will help protect from risk of personal injury or property damage. Failure to follow • If you are going to use the product these instructions shall void any warranty. in a wardrobe/cabinet/module and 1.1 General safety if the opening is not sufficient, it is...
- Page 4 WARNING! WARNING! • Unplug the product when it is not • The product should be used without in use. removing the upper plate. • Never touch the plug with wet hands! Never unplug by pulling on the cable, INFORMATION always pull out by grabbing the plug. •...
- Page 5 INFORMATION DANGER! • Do not install or leave the product in • Rubber (latex) foam, shower caps, places where it might be exposed to waterproof fabrics, clothes and outdoor conditions. rubber-reinforced/rubber-foam • Do not play with control elements of pillows must not be dried with the the product.
- Page 6 WARNING! CAUTION! • Before loading the machine, check • Do not stop the machine before the each laundry item and make sure drying programme is completed. that there is no lighter, change, If you have to do so, remove all metal objects, needles etc.
- Page 7 1.2 Intended use 1.3 Children's safety INFORMATION CAUTION! • This product has been designed for • Children under the age of 3 must be domestic use. It is not suitable for kept away from the product unless commercial use and it must not be they are continuously supervised.
- Page 8 2 Your washer-dryer 1.4 Compliance with the WEEE Directive and disposing 2.1 Overview of the waste product This product does not contain the harmful and prohibited materials described in the “Directive on the Management of Waste Electrical and Electronic Equipment”. It complies with the WEEE Directive.
- Page 9 2.2 Package contents Power cable Water discharge hose Transit bolts Mains water inlet hose User manual Plastic plug group • Figures in this manual are schematic and may not match the product exactly. NOTE 9 / EN Washer-Dryer / User Manual...
- Page 10 2.3 Technical specifications Supplier name or trademark PHILCO Model name PBS1485BI Maximum spin speed (rpm) 1400 Built-in Rated capacity - Washing (kg) Rated capacity - Drying (kg) Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet •...
- Page 11 • Do not place the product on the power cable. 3 Installation • Do not install the product in environments where the temperature falls below 0 ºC.(See. Warnings for Drying) To make the product ready for use, review the • Leaving a gap at the sides of the machine information in the user manual and make sure is suggested to reduce vibration and noise that the electricity, tap water supply and water...
- Page 12 CAUTION! DANGER! • Models with a single water inlet should not • Your product is heavy. Remove packaging be connected to the hot water tap. In such reinforcement as displayed in the figure. a case the laundry will get damaged or the •...
- Page 13 CAUTION! CAUTION! • Your house will be flooded if the hose • Adjust feet so that the product will be comes out of its housing during water balanced in the location it will be used. discharge. Moreover, there is risk of •...
- Page 14 3.7 Electrical connection CAUTION! Connect the product to a grounded outlet protected by a 13 A fuse. Our company shall • Packaging materials are dangerous to not be liable for any damages that will arise children. Keep packaging materials in a when the product is used without grounding in safe place away from reach of the children.
- Page 15 4 Preparation INFORMATION 4.1 Sorting the laundry • Laundry that is subjected to heavy deposits * Sort laundry according to type of of materials such as flour, lime dust, milk fabric, colour, and degree of soiling powder, etc. Must be shaken off before and allowable water temperature.
- Page 16 4.4 Initial use Before starting to use the product make sure that all preparations are made in accordance with the “Important safety and environment Bathrobe 1200 Hand towel instructions” and the instructions in the “Installation” section. Women‘s night Fabric napkin To prepare the product for washing laundry, gown perform first operation in Drum Cleaning...
- Page 17 4.7.1 Detergent drawer 4.7.2 Main Wash Compartment The detergent drawer is composed of four Before starting the washing Programme, put compartments: powder detergent into the left compartment with number “II”. Powder bleach/stain remover must also be put into this compartment. Put the liquid detergent into the main wash compartment with number “II ”...
- Page 18 4.7.7 Using gel and tablet detergent You must select extra rinsing option if you use liquid bleach in a washing Programme. Bleach • If the gel detergent thickness is fluidal and must be removed from the laundry with rinsing; your machine does not contain a special liquid otherwise it may cause itching on the skin.
- Page 19 4.7.10 Using limescale remover • Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes • When required, use limescale very well as it causes skin irritation. Do removers manufactured specifically not pour the bleach onto the laundry and for washing machines only.
- Page 20 4.9 Tips for correct drying Programmes Cottons Drying Synthetics Drying Babyprotect + Washing and Drying Wash&Wear Washes and dries Washes and dries Sheet, bedding, baby Stainless clothes that has respectively! Sheet, respectively! Sheet, bedding, clothes, t-shirts, been worn for a short time bedding, baby clothes, baby clothes, t-shirts, sweatshirts, durable knit...
- Page 21 5.3 Preparing the Machine 5 Operating the product 1. Check if the hoses are connected tightly. 5.1 Control panel 2. Plug in your machine. 3. Turn the tap on completely. 4. Place the laundry in the machine. 5. Add detergent and fabric softener. 5.4 Selecting a washing programme 1.
- Page 22 • Cotton • Wool/Hand Wash You can wash your durable cotton laundry Use this programme to wash your woolen (sheets, bedlinen, towels, bathrobes, underwear clothes. Select the appropriate temperature etc.) in this programme. When you press the complying with the tag of your clothes. Your quick wash function key, programme duration laundry will be washed with very delicate becomes notably shorter but effective washing is...
- Page 23 • Quick/Quick 14 Use this programme to wash your lightly soiled INFORMATION cotton clothes in a short time. The programme duration can be reduced down to 14 minutes • You can dry your laundry without any when the quick wash function is selected. When interruption right after the washing the quick wash function is selected, maximum 2 programme (it is possible to perform...
- Page 24 5.6 Temperature selection INFORMATION • It is possible that the recommended spin speed is not the highest value that can be selected for the relevant programme. Press the Spin Speed Adjustment button to Whenever a new programme is selected, the change the spin speed.
- Page 25 5.7.2 Auxiliary function selection for drying INFORMATION • There is a spinning step in the drying programmes. Your machine performs this process in order to shorten the drying time. While the drying programme is selected, the spin speed setting is within the Maximum spin speed range.
- Page 26 5.9 Washing and drying • Wash & Wear Use this programme to wash 0.5 kg of laundry programmes (2 shirts) in 40 minutes or 1 kg of laundry (5 shirts) in 60 minutes. CAUTION! INFORMATION • During the drying programme, the machine automatically removes the lints coming from •...
- Page 27 5.10 Programme and consumption table (for washing) Auxiliary functions Selectable temperature Programme (°C) range °C 1400 • • • • • Cold - 90 2,50 Cotton 1400 • • • • • Cold - 90 1,80 1400 • • • •...
- Page 28 INFORMATION • Please check installation section of user manual before the first use of your product • The auxiliary functions in the table may vary according to the model of your machine. • Water and power consumption may vary subject to the changes in water pressure, water hardness and water temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in the mains voltage.
- Page 29 Although it depends on the programme, pressing the Quick Wash button once will INFORMATION shorten the programme time down to a certain • Some functions cannot be selected level. Press the same button for the second time together. If a second auxiliary function to drop the time to the minimum level.
- Page 30 To enable Child Lock: Press and hold the Drying Level INFORMATION Adjustment button for 3 seconds. When the • This is not a washing programme. It is a countdown “3-2-1” on the display ends, child maintenance programme. lock icon will be displayed. Once you see this •...
- Page 31 5.12.4 Time based drying To ensure that the End Time function is enabled and the program ends at the end of the defined - minutes duration, you should press Start / Pause after You can select 30, 90 or 150 minutes drying setting the duration.
- Page 32 5.15 Starting the programme 1. Press the Start/Pause button to start the programme. 2. The flashing light of the Start/Pause button will remain on, indicating that the programme has started. 3. Loading door will be locked. When the door is being locked, “Locking Door”...
- Page 33 5.17.2 Switching the 5.18 Cancelling the programme machine to pause mode Press the Start/Pause button to switch the The programme will be cancelled if the machine to pause mode. programme selection knob is switched to another programme or if the machine is 5.17.3 Changing the switched off and on with this button.
- Page 34 5.19 End of programme 6 Maintenance and cleaning Once the programme is completed, the End symbol will be displayed. Service life of product extends and frequently If you do not press any button for 10 minutes, experienced problems will be reduced if it is the machine will switch to OFF mode.
- Page 35 6.2 Cleaning the loading 6.3 Cleaning the body door and the drum and control panel For products with drum cleaning programme, Wipe the body of the machine with soapy please see Operating the product - water or non-corrosive mild gel detergents as Programmes.
- Page 36 6.5 Draining remaining water 2. Some of our products have emergency draining hose and some does not have. and cleaning the pump filter Follow the steps below to discharge the water. The filter system in your machine prevents solid items such as buttons, coins and fabric fibers Discharging the water when the product does clogging the pump impeller during discharge not have an emergency draining hose:...
- Page 37 7 Troubleshooting Machine directly discharges the water it takes in. • The drain hose might be at an inappropriate height. >>> Programmes won’t start after the loading door has Connect the water drain hose as described in the user manual. been closed.
- Page 38 Programme time does not countdown. (*) Colour of the clothes faded. (**) • The laundry in the machine might be unbalanced. >>> The • Machine might have been overloaded. >>> Do not overload automatic unbalanced load detection system might have been the machine.
- Page 39 There is detergent left on the laundry. Machine does not start or programme cannot be started. • Power cable might be unplugged. >>> Make sure that • Machine might have been overloaded. >>> Do not overload the machine. the power cable is plugged in. •...
- Page 40 請 記 錄 下 列 產 品 資 料 Model No.: 型 號 Serial No.: 機 ⾝ 編 號 Dealer: 經 銷 商 名 稱 Date of Purchase: 購 買 ⽇ 期 Invoice No.: 單 據 編 號 本產品不斷改進中，如功能有所更改，恕不另行通知 如有疑問，請與客戶服務中心聯絡。不便之處，敬請原諒。 The product specifications may be changed without prior notice.
