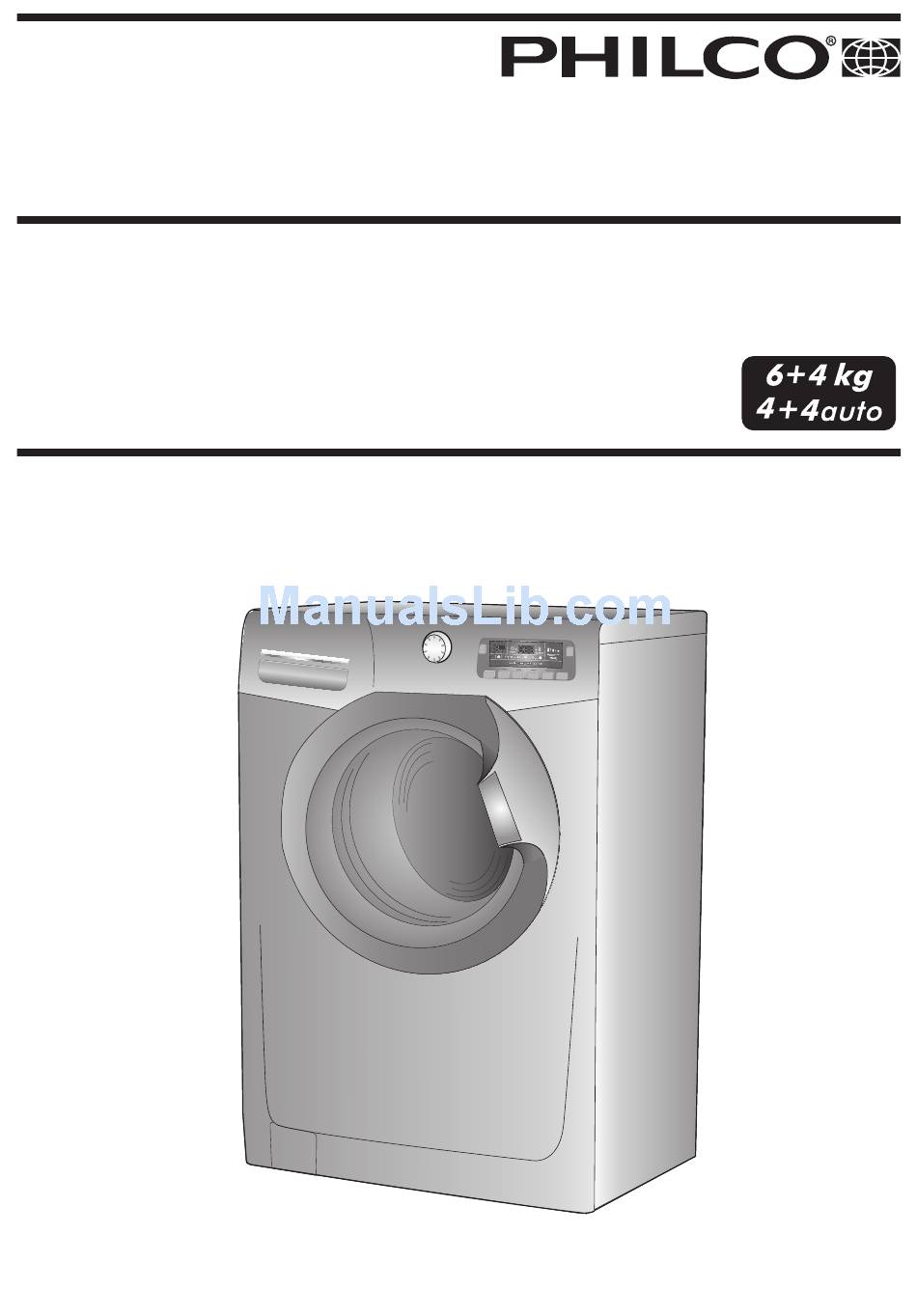

  • Page 1 Washer Dryer Instructions Manual PWD6414S...
  • Page 2 hgfh fh jgf...

  • Page 3: Table Of Contents

    Contents Page General safety rules – This appliances is intended to be used in household and similar Introduction applications such as: • Staff kitchen areas in shops, offi ces and other working General delivery notes environments; Safety notes • Farm houses; Quick start •...

  • Page 4: General Delivery Notes

    – The fi nal part of a washer dryer cycle occurs without heat (cool General delivery notes down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. On delivery check that there is the following with the appliance: –...

  • Page 5: Quick Start

    M) N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the – Remove all objects from pockets such as lighters and matches. base of the appliance are not obstructed. Safety instructions N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.
  • Page 6 General safety rules e v i Quick start i t p i r t n s l o c e l r o t r e t , s t i h s s d i e c i Drying i y r e l c c i t...
  • Page 7 General delivery notes On delivery check that there is the following with the appliance: – Instruction manual – Certificate of guarantee – Caps – Inlet hose and check that no damage has occurred during transit, and if so, call your nearest Authorised Technical Support Service agent (see Customer Service) Quick start Washing...

  • Page 8: Description Of Controls

    Description of controls Fig. 1 H G F E D C G H I C L M G H I C L M " t i r " y g i l S " " e " " n " "...
  • Page 9 “Kg MODE” (Function active only on Cotton and Synthetics programmes) Through every wash phase “Kg MODE” allows to monitor information on the wash load in the drum. So, as soon as the “Kg MODE” is set in motion, in the first 4 minutes of the wash, it: - adjusts the amount of water required - determines the length of the wash cycle - controls rinsing...
  • Page 10 Door handle Press the finger-bar inside the door handle to open the door. DOOR SECURITY indicator light The “Door Security” indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.
  • Page 11 The option buttons should be selected before pressing the "Start/Pause" button. “DRYING SELECTION” button With the programme selector not in the OFF position, press the button to select the required drying programme; an indicator will light to display the drying result selected each time you press the button.
  • Page 12 It is possible to cancel the delay start by taking the following action: Press and hold the button for 5 seconds until the display will show the settings for the programme selected. At this stage it is possible to start the programme previously selected by pressing the "Start/Pause"...
  • Page 13 “SPIN” button The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs. By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.
  • Page 14 120’ 90’ 60’ 30’ 6) KG MODE Indicator Available on Cotton and Synthetic cycles, during the first 4 minutes of the cycle the indicator lights and wash time will flash. This means the intelligent sensor is weighing the laundry and will adjust the cycle time, water and electricity consumption accordingly.
  • Page 15 “WASH TIME” button “WASH TIME” button By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is By selecting this button (active only on COTTON and MIXED FIBRES programmes) there is a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled. a choice of 3 levels of wash intensity, depending on how much the fabrics are soiled.

  • Page 16: Table Of Programmes

    TABLE OF PROGRAMMES PROGRAMME PROGRAM FOR: WEIGHT RECOMMENDED CHARGE DETERGENT SELECTOR ON: TEMP. MAX TEMP. °C °C Up to: Resistant fabrics 60° Cotton, linen 90° Cotton, mixed Up to: 60° resistant, 60° Coloureds with Prewash Up to: 40° Resistant fabrics 60°...
  • Page 17 Please read these notes Washing Use the programme ** with the maximum wash time selected, maximum spin speed and a temperature of 60°C. Drying First drying with 4kg (the load consist: pillowcases and hand-towels) selecting the cotton drying programme ( ) cupboard dry ( Second drying with 2kg (the load consist: 2 sheets and hand towels) selecting the cotton drying programme (...

  • Page 18: Programme Selector From Typical Housekeeping Functions, As Commercial Use By Expert

    Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and lenght of cycle (see table of washing cycle programmes on page 16). COTTONS The Cottons programme is designed for maximum washing and rinsing efficiency.
  • Page 19 SPECIAL “SPIN” PROGRAMME Programme “SPIN” carries out a maximum spin (which can be reduced by using the correct button). DRAIN ONLY This programme drains out the water. SPECIAL “HAND WASH” This washing machine also has a gentle Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as “Hand Wash only”...
  • Page 20 DRYING Note: Dispensers used for concentrated powders and liquid detergents must be removed from the drum before commencing the tumble drying programmes. The drum changes direction during the drying cycle to prevent the laundry from tangling and hence produce even drying. Cool air is used during the last ten minutes of the drying cycle to minimise creasing.

  • Page 21: Detergent Drawer

    Detergent drawer The detergent drawer is split into 3 compartments: - the compartment labelled "1" is for prewash detergent; - the compartment labelled " " is for special additives, fabric softeners, fragrances, starch, brighteners etc; - the compartment labelled "2" is for main wash detergent.

  • Page 22: Detergents, Washing Aids And Amounts To Use

    Detergents, washing aids and amounts to use Choice of detergent General purpose detergents - Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. - Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
  • Page 23 Dosages Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

  • Page 24: Useful Advice For The User Damage To The Appliance Or Other Damage Or Loss Arising Through

    Useful advice for users Tips on using your domestic appliance in the most environmentally-friendly and economical way. Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size.

  • Page 25: The Main Wash Use That Is Not Consistent With Domestic Or Household Use

    Main wash Sorting the laundry - It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. - Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry...
  • Page 26 The correct way to wash Preparing the laundry A) Select the laundry. Loading the laundry B) Open the porthole. C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of ms of laundry are obstructing the lock. Putting detergent in machine dosi D) Open the drawer, choose the detergent and put in...

  • Page 27: Drying

    DRYING DON’T DRY GARMENTS MADE FROM FOAM RUBBER OR FLAMMABLE MATERIALS. IMPORTANT: THIS DRYER CAN ONLY BE USED FOR LAUNDRY WHICH HAS BEEN WASHED AND SPIN DRIED. WARNING: Indications given are general, therefore some practice is needed for the best drying results. We recommend setting a lower drying time than indicated, when first using, so as to establish the degree of dryness required.

  • Page 28: This Appliance Is Not Intended For Use By Persons

    Drying cycle The correct way to dry: - Open door. - Fill with up to 4 kg - in case of large items (e.g. sheets) or very absorbent items (e.g. towels or jeans), it is a good idea to reduce the load. - Close door.

  • Page 29: Automatic Washing/Drying Cycle

    Automatic washing/drying cycle Warning: only a maximum 4 kg of dry laundry can be loaded otherwise the dried laundry will be not satisfactory. WASHING: Open the drawer, choose the detergent and put in the correct amount. Refer to the list of washing programmes according to fabrics to be washed (e.g. very dirty cotton) and without pressing button, prepare wash as described: Start...
  • Page 30 Table of drying times (in minutes): PROGRAMME Min 1 Kg Max 4 Kg Min 1 Kg Max 3 Kg Extra from 30’ to 230’ from 30’ to 170’ Cupboard from 30’ to 220’ from 30’ to 150’ Iron from 30’ to 170’...

  • Page 31: Cleaning And Routine Maintenance

    Cleaning and routine maintenance Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: - Cleaning the drawer compartments. - Cleaning the filter.
  • Page 32 Attention: if the filter needs cleaning while there is washing still in the drum, follow the instructions on the following page to empty the water. This will prevent excessive loss of water via the filter. Cleaning the door glass Regularly clean the door glass with a damp cloth. A build up of soiling and residues from the water may result in water leaking from the door.

  • Page 33: Investigating Malfunctions Given Supervision Or Instruction Concerning Use Of The Appliance

    Investigating malfunctions What might be the cause of… Defects you can remedy yourself MALFUNCTION CAUSE REMEDY 1. Does not work on any Plug not in socket. Plug it in. programme Not switched on. Switch on. Power failure. Check. Fuse blown. Check.
  • Page 34 Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.

  • Page 35: Technical Data

    Fig. 2 Technical data 6 kg Max. load of dry laundry Max. load of dry laundry for drying 4 kg Water pressure 0,05 ÷ 0,8 MPa Measurements Width 60 cm Depth 44 cm Height 85 cm Note: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area) - as shown in diagram above.

  • Page 36: Setting Up + Installation

    SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Remove the 3 fixing screws marked (A) and remove the 3 spacers marked (B) (diagram 3).

  • Page 37: Water Connection

    Note: we recommend you keep the screws to immobilise the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation. Water connection The appliance must be connected to the water mains using new hose-sets.

  • Page 38: Electrical Connections

    Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.
  • Page 39 The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
  • Page 40 This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specifi c treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
